Radeon™ RX 6800 GAMING OC 16G, 1815 - 2155MHz, 16GB GDDR6, Graphics Card
Quantity:
- SKU: 13759153
- Manufacturer: GIGABYTE
- MPN: GV-R68GAMING OC-16GD
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$707.23
Radeon™ RX 6800 GAMING OC 16G, 1815 - 2155MHz, 16GB GDDR6, Graphics Card
GIGABYTE Radeon™ RX 6800 GAMING OC 16G (GV-R68GAMING OC-16GD). WINDFORCE 3X COOLING SYSTEM. The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
- Powered by RDNA2 Radeon™ RX 6800
- Integrated with 16GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- Screen cooling
- Graphene nano lubricant
- RGB Fusion 2.0
- Dual BIOS

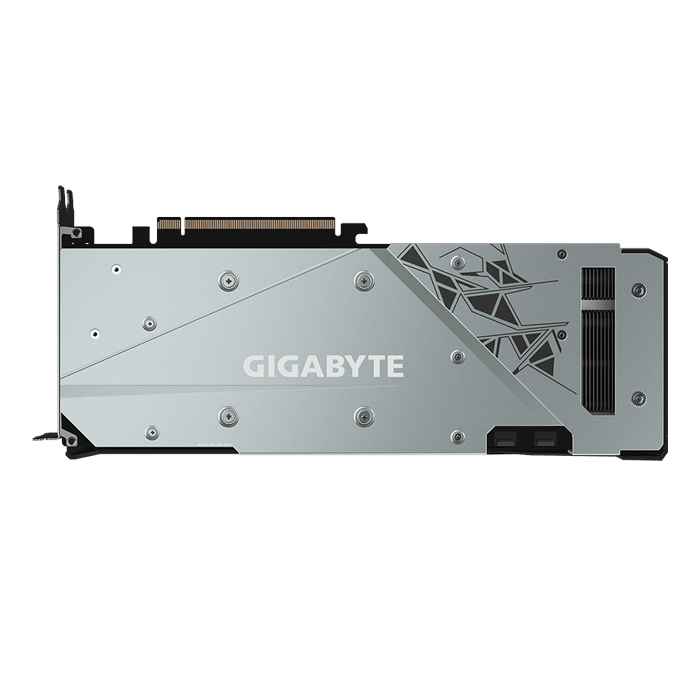

- Protection metal back plate
| Graphics Processing | Radeon™ RX 6800 |
| Core Clock |
Boost Clock : up to 2155 MHz (Reference card: 2105 MHz) Game Clock* : 1925 MHz (Reference card: 1815 MHz) |
| Stream Processors | 3840 |
| Process Technology | 7 nm |
| Memory Clock | 16000 MHz |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 512 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=286 W=112 H=58 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 pin*2 |

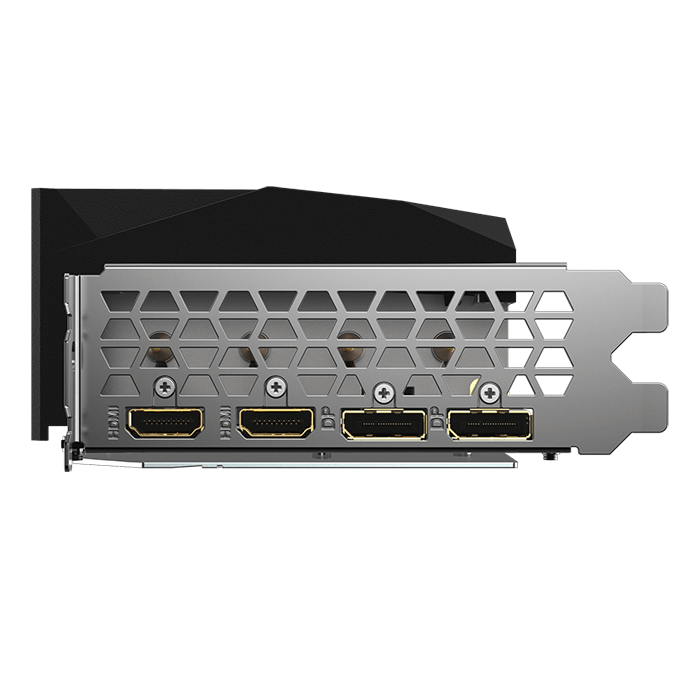

| Output |
DisplayPort 1.4a *2 HDMI 2.1 *2 |
| Accessories | Quick guide |
| Note | *: “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
