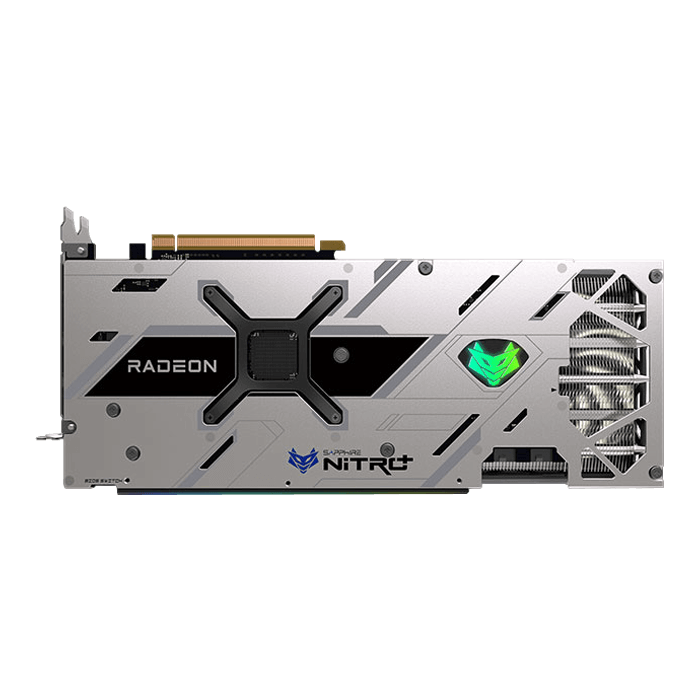

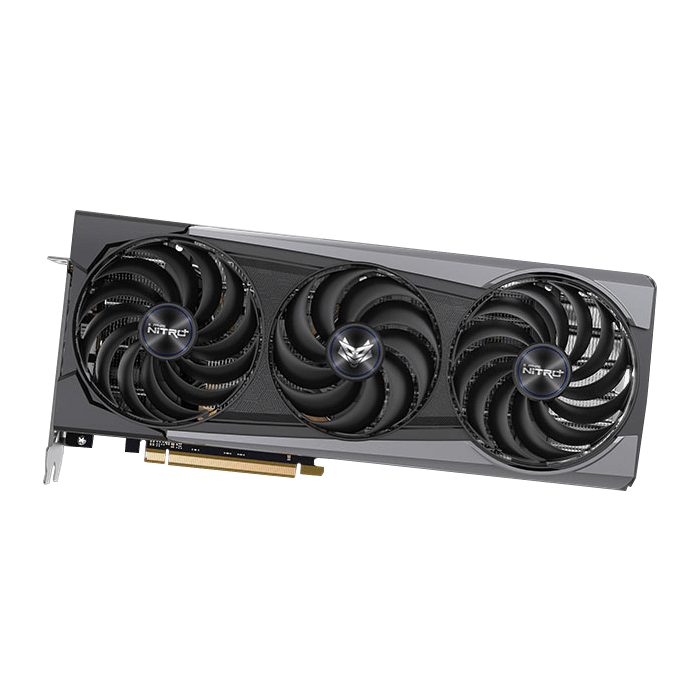

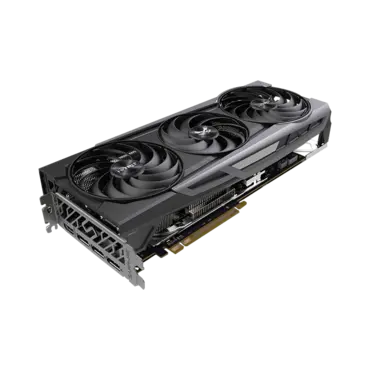

Radeon™ RX 6800 NITRO+, 1815 - 2190MHz, 16GB GDDR6, Graphics Card

  • SKU: 13731586
  • Manufacturer: SAPPHIRE
  • MPN: 11305-01-20G
Starting At
GPU Radeon™ RX 6800 Graphics
7nm GPU
RDNA 2 Architecture
Engine Clock

Boost Clock: Up to 2190 MHz

Game Clock: Up to 1980 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors 3840
Infinity Cache 128MB
Ray Accelerators 60
Memory Size/Bus 16GB GDDR6
Memory Clock 16Gbps Effective
Displays Maximum 4 Displays

HDMI™: 7680×4320

DisplayPort1.4: 7680×4320


PCI-Express 4.0


1x HDMI

3x DisplayPort

BIOS Support


Game Index


Sapphire Features
  • Dual BIOS
  • Max Boost
  • TriXX Software Switch
  • Premium Digital Power Design
  • Fuse Protection
  • Tri-X Cooling Technology
  • Intelligent Fan Control
  • Precision Fan Control
  • Backplate with ARGB
  • Two-Ball Bearing Fans
  • Hybrid Fan Blade
  • Wave Fin Design
  • V Shape Fin Design for GPU Cooling
  • Integrated Cooling Module
  • TriXX Supported
  • Fan Check
  • Fan Quick Connect
  • TriXX Boost
  • NITRO Glow
  • External RGB LED MB Synchronization
AMD Features
  • AMD RDNA™ 2 Gaming Architecture
  • DirectX® 12 Ultimate
  • Hardware Raytracing
  • 7nm GPU
  • GDDR6 Memory
  • PCI® Express 4.0 Support
  • AMD FreeSync™ Technology
  • DisplayPort™ 1.4 with DSC
  • HDMI™ 2.1 VRR
  • Video Streaming up to 8K
  • Radeon™ VR Ready Premium
  • AMD FidelityFX
  • Radeon™ Image Sharpening
  • Radeon™ Anti-Lag
  • Radeon™ Software
  • Game Driver Optimizations
  • High Performance 4K Gaming

3 Fans

Form Factor 2.7 slot, ATX
Dimension: 310.5(L)X 134.2(W)X 55.2 (H)mm
Power Consumption 290W

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement
  • Minimum 750 Watt Power Supply
  • 2 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
