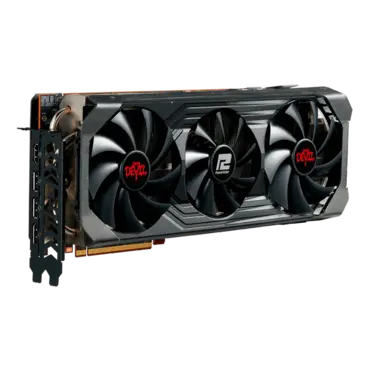

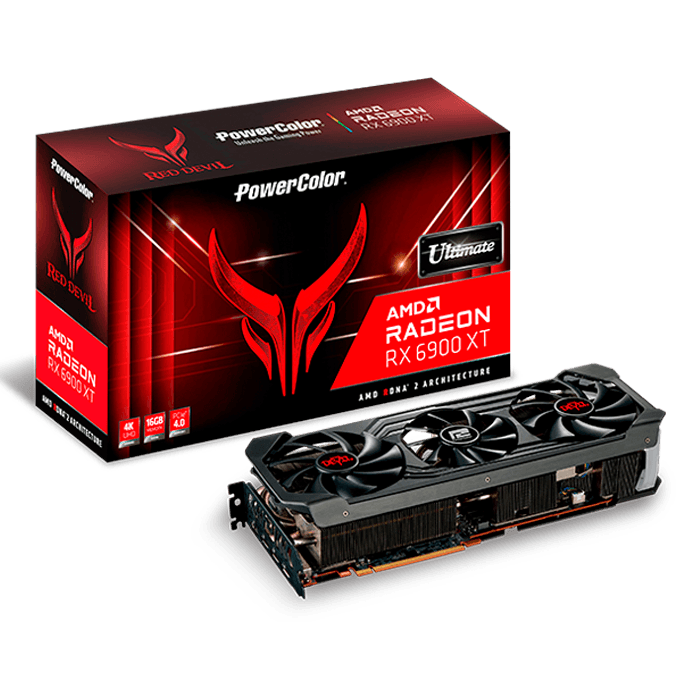

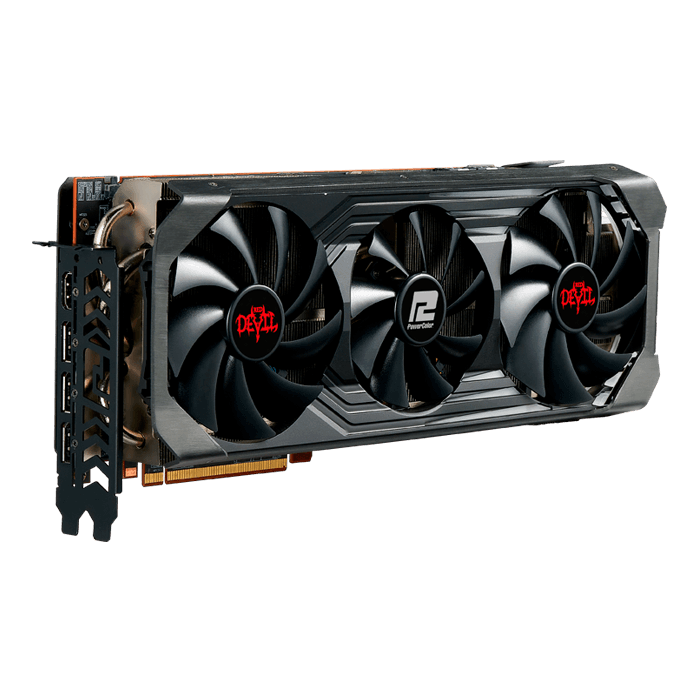

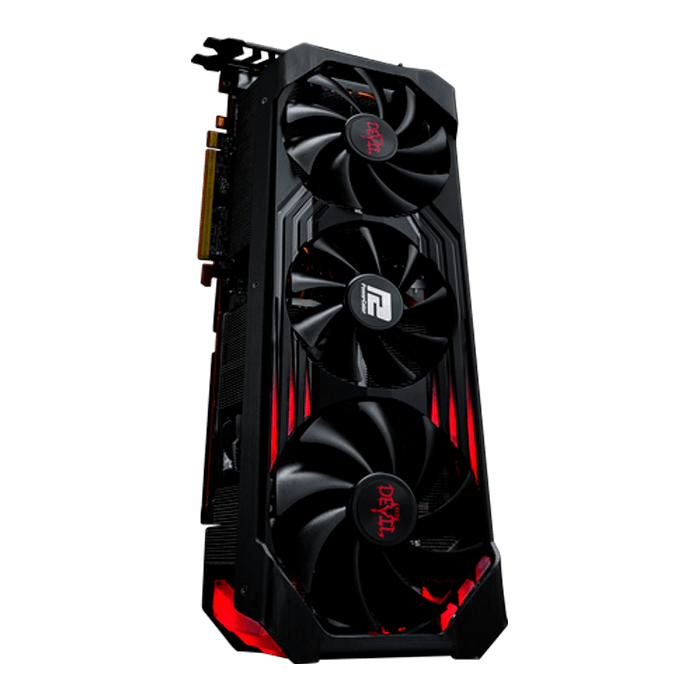

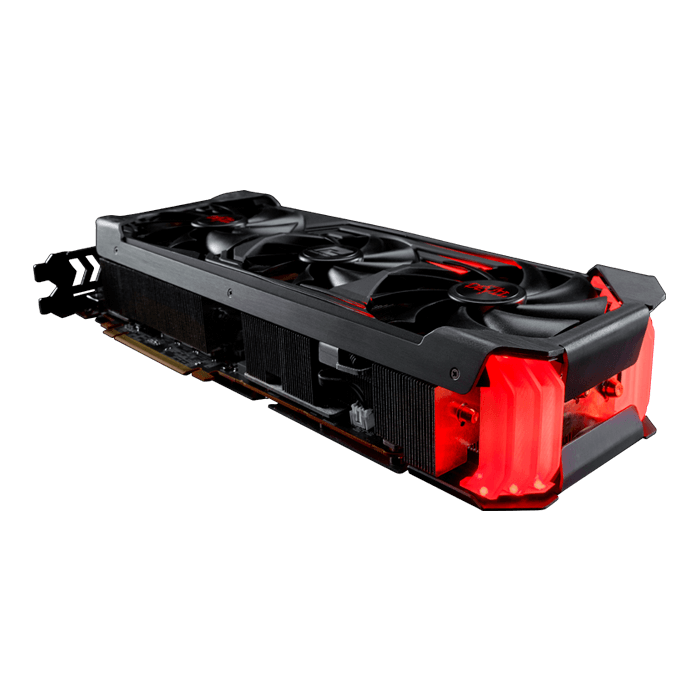

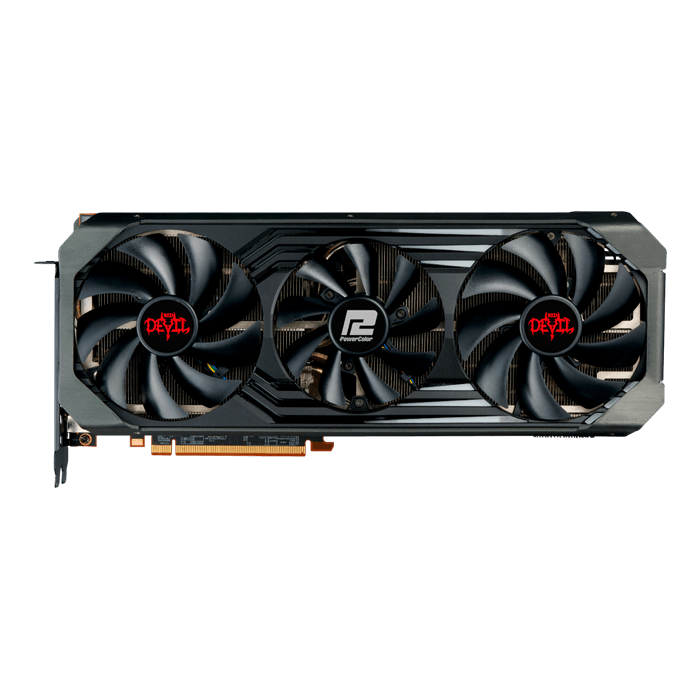

Radeon™ RX 6900 XT Ultimate Red Devil, 2135 - 2425MHz, 16GB, GDDR6, Graphics Card

  • SKU: 14443658
  • Manufacturer: POWERCOLOR
  • MPN: AXRX 6900XTU 16GBD6-3DHE/OC
Starting At
Graphics Engine AXRX 6900XTU 16GBD6-3DHE/OC
Video Memory 16GB GDDR6
Stream Processor 5120 Units
Engine Clock(OC) up to 2235MHz(Game)
up to 2425MHz(Boost)
Engine Clock(STD/Silent) up to 2135MHz(Game)
up to 2335MHz(Boost)
Memory Clock 16.0 Gbps
Memory Interface 256-bit
DirectX® Support 12
Bus Standard PCIE 4.0

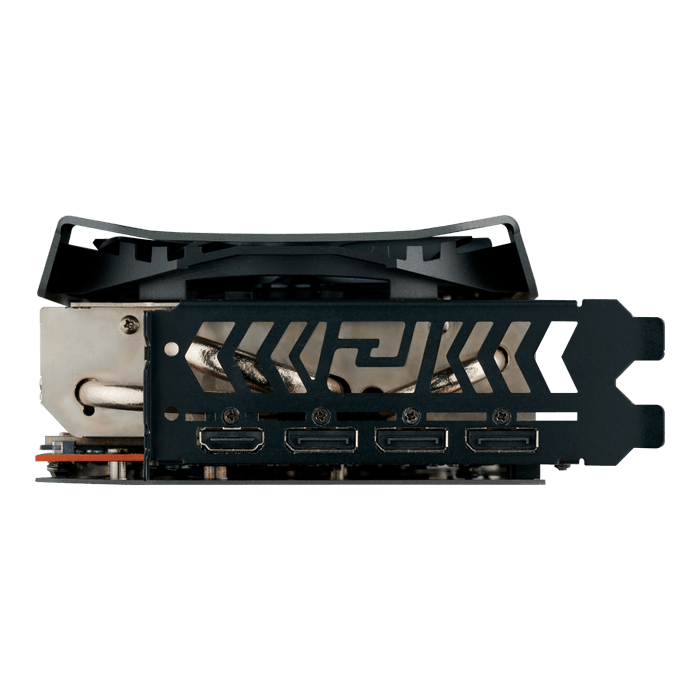

Standard Display Connectors 1 x HDMI 2.1 , 3 x DisplayPort 1.4
Customized Specifications
Product Remark 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
Feature Support
OpenGL Support
CrossFireX™ Technology support (DirectX® 12/Vulkan™)
AMD Stream Technology Support
AMD Eyefinity Technology Support
AMD Hypermemory
Maximum Resolution
DisplayPort 7680×4320
HDMI 7680×4320
Power Specs + Board Dimensions
Board Dimensions 320mm*135mm*62 mm
Minimum System Power requirement (W) 900W
Extension Power Connector Three 8-pin PCI Express Power connectors
