Radeon™ RX 6950 XT 11317-01-20G, 1890 - 2565MHz, 16GB GDDR6, Graphics Card

  • SKU: 14947012
  • Manufacturer: SAPPHIRE
  • MPN: 11317-01-20G
Starting At
Radeon™ RX 6950 XT 11317-01-20G, 1890 - 2565MHz, 16GB GDDR6, Graphics Card

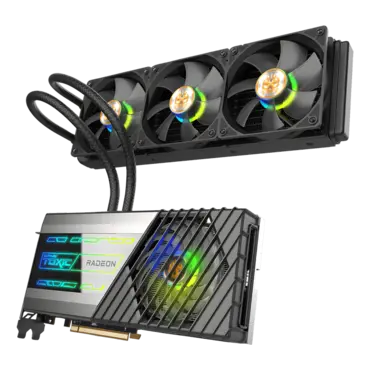

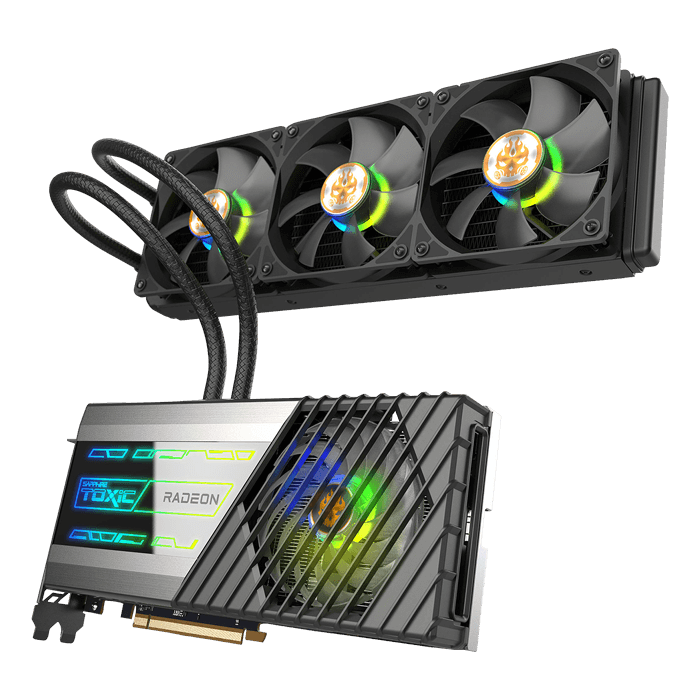

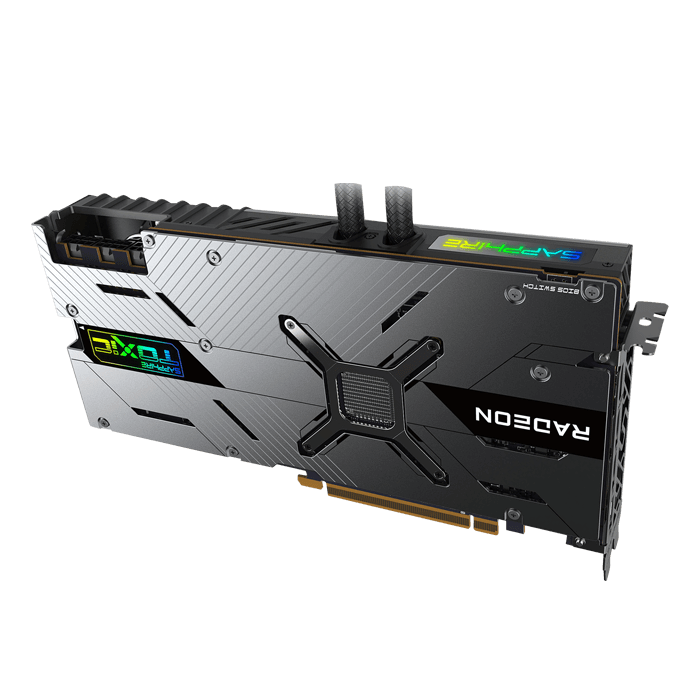

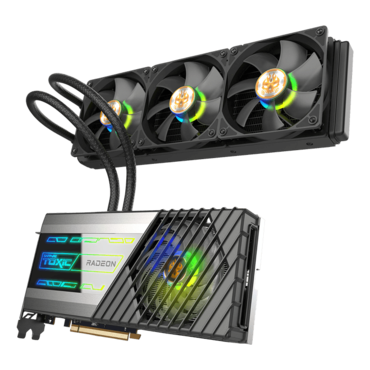

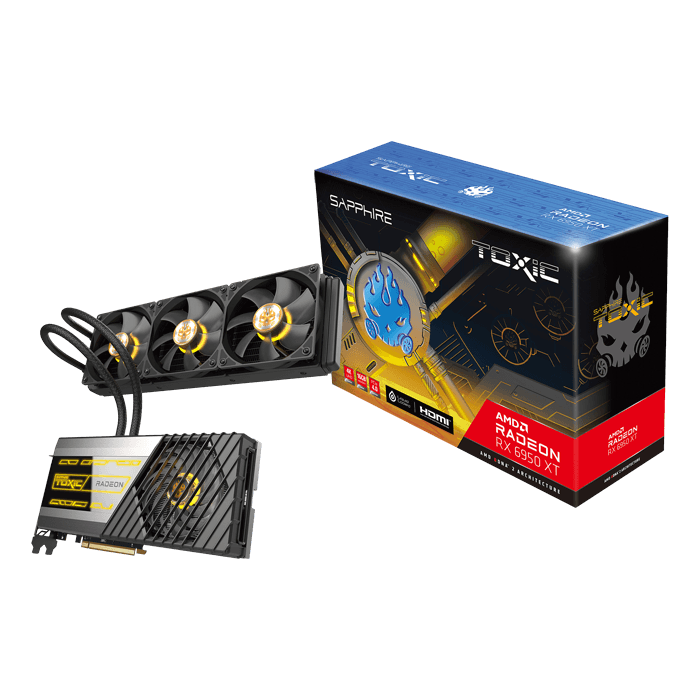

SAPPHIRE Radeon™ RX 6950 XT TOXIC Limited Edition (11317-01-20G). The long envisioned and highly anticipated TOXIC AMD Radeon™ RX 6950 XT LE Graphics Card designed for the DIY Enthusiast, and Gamer pursuing unrivaled performance with a paramount cooling solution. Driving an innovative overclocking solution with incredible new cooling technology, the TOXIC AMD Radeon™ RX 6950 XT LE is the superior choice for building a powerhouse PC with the best gaming performance on the market.

  • GPU: OC BIOS Up to 2565 MHz
  • GPU: Boost Clock: Up to 2532 MHz
  • GPU: Game Clock: Up to 2310 MHz
  • Memory: 16GB/256 bit DDR6. 18 Gbps Effective
  • Stream Processors:5120
  • RDNA™ 2 Architecture
  • Ray Accelerator: 80
GPU AMD Radeon™ RX 6950 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
  • Boost Clock: Up to 2532 MHz
  • Game Clock: Up to 2310 MHz

OC BIOS Up to 2565 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 5120
Infinity Cache 128MB
Ray Accelerators 80
Memory Size/Bus 16GB GDDR6
Memory Clock
  • BIOS Default: 18 Gbps Effective
Displays Maximum 4 Displays
  • HDMI™: 7680×4320
  • DisplayPort1.4: 7680×4320
PCI-Express 4.0
  • 1x HDMI
  • 3x DisplayPort
BIOS Support
  • Dual UEFI
Game Index
Sapphire Features
  • All-In-One Liquid Cooler with 360mm Radiator
  • Dual BIOS
  • Max Boost
  • TriXX Software Switch
  • Premium Digital Power Design
  • Fuse Protection
  • High TG Copper PCB
  • Optimized Composite Heatpipe
  • Intelligent Fan Control
  • Precision Fan Control
  • Backplate with ARGB
  • Metal Backplate with Thermal Pad
  • ARGB Fans
  • ARGB AIO Cooler Fans
  • Dual Ball Bearing Fans
  • Hybrid Fan Blade on VRM/Memory Cooling
  • Integrated VRM/Memory Cooling Module
  • TriXX Supported
  • Fan Check
  • Fan Quick Connect
  • TriXX Boost
  • NITRO Glow
  • External RGB LED MB Synchronization
AMD Features
  • AMD RDNA™ 2 Gaming Architecture
  • DirectX® 12 Ultimate
  • Hardware Raytracing
  • 7nm GPU
  • GDDR6 Memory
  • PCI® Express 4.0 Support
  • AMD FreeSync™ Technology
  • DisplayPort™ 1.4 with DSC
  • HDMI™
  • Video Streaming up to 8K
  • Radeon™ VR Ready Premium
  • AMD FidelityFX
  • AMD FidelityFX™ Super Resolution (FSR)
  • AMD Radeon™ Super Resolution
  • Radeon™ Image Sharpening
  • Radeon™ Anti-Lag
  • Radeon™ Software
  • Game Driver Optimizations
  • High Performance 4K Gaming
  • AIO Liquid Cooling with 360 mm radiator
  • Two-Ball Bearing Fans
Form Factor
  • 2.5 slot, ATX + 360mm Radiator
  • Board 270(L)x 130(W)x 45 (H)mm
  • Hex / Radiator 394(L) x 120(W) x 52.5 (H)mm
  • Standard Rubber Tubing, 470(L)mm
Power Consumption 420W Total Board Power
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
  • Minimum 850 Watt Power Supply
  • 2 x 8-pin + 1 x 6-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
