Clock: GPU / Memory
Boost Clock*: Up to 2799 MHz/ 18 Gbps
Game Clock**: 2516 MHz/ 18 Gbps -
Key Specification
AMD Radeon™ RX 7600 XT
16GB GDDR6 on 128-Bit Memory Bus
32 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort™ 2.1, 1 x HDMI™ 2.1 -
Key Features
Dual Fan Design
Stylish Metal Backplate
Axial Ring Fan
Ultra-fit Heatpipe
LED Indicator
0dB Silent Cooling

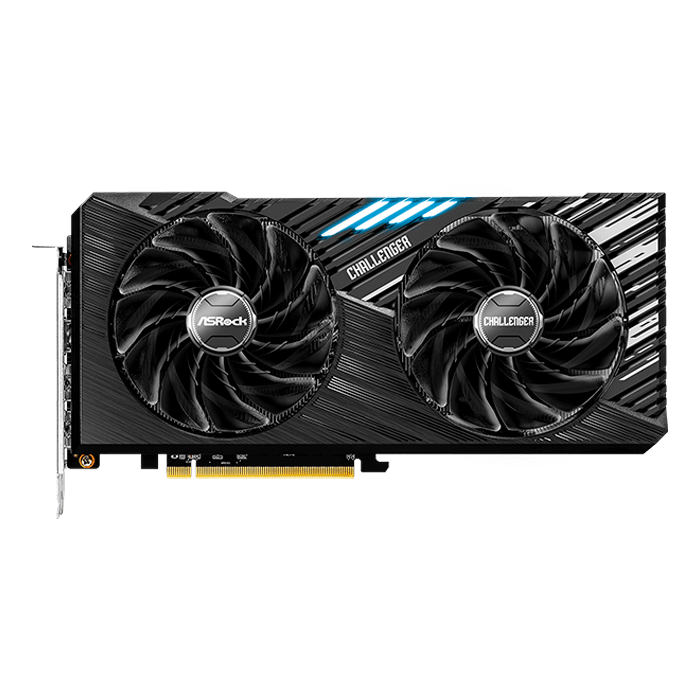

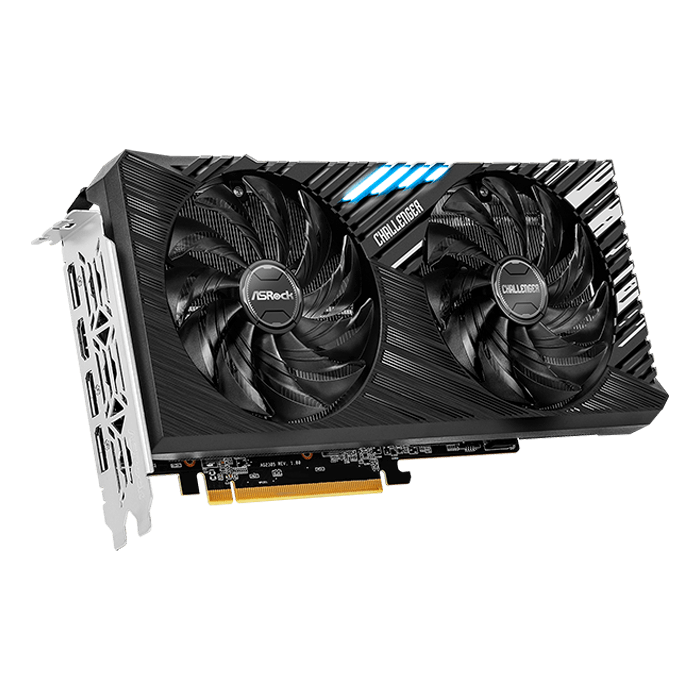

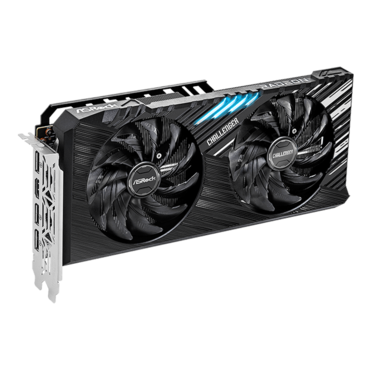

Super Alloy Graphics Card
Graphics Engine | AMD Radeon™ RX 7600 XT Graphics |
Bus Standard | PCI® Express4.0 x8 |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Memory | GDDR6 16GB |
Engine Clock |
Boost Clock up to: 2799MHz Game Clock: 2516MHz |
Stream Processors | 2048 |
Compute Units | 32 |
Memory Clock | 18Gbps |
Memory Interface | 128-bit |
Resolution | Digital Max Resolution: 7680x4320 |
Interface |
1 x HDMI™ 2.1 (up to FRL 10Gbps) 3 x DisplayPort™ 2.1 with DSC (up to UHBR10 10Gbps) |
HDCP | Yes |
Multi-view | 4 |
Recommended PSU | 650W |
Power Connector | 2 x 8-pin |
Accessories | 1 x Quick Installation Guide |
Dimensions | 267 x 130 x 51mm |
Net Weight | 432g |
