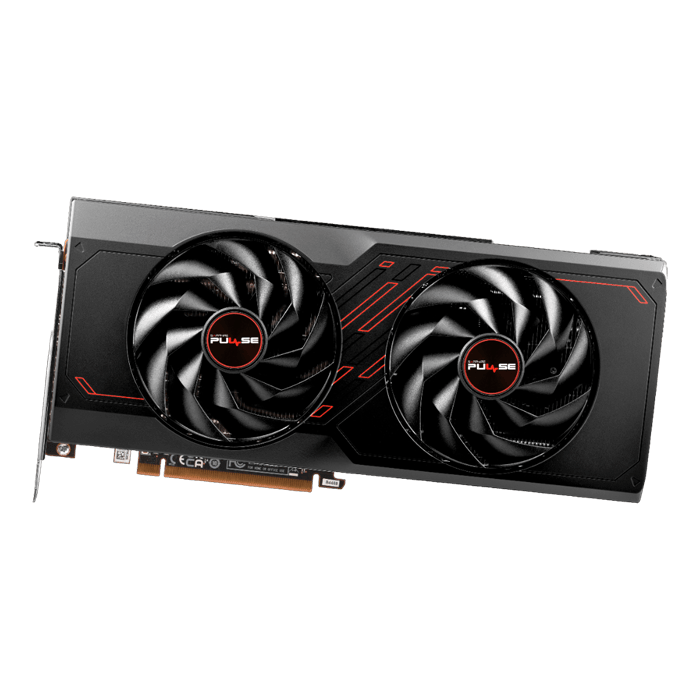

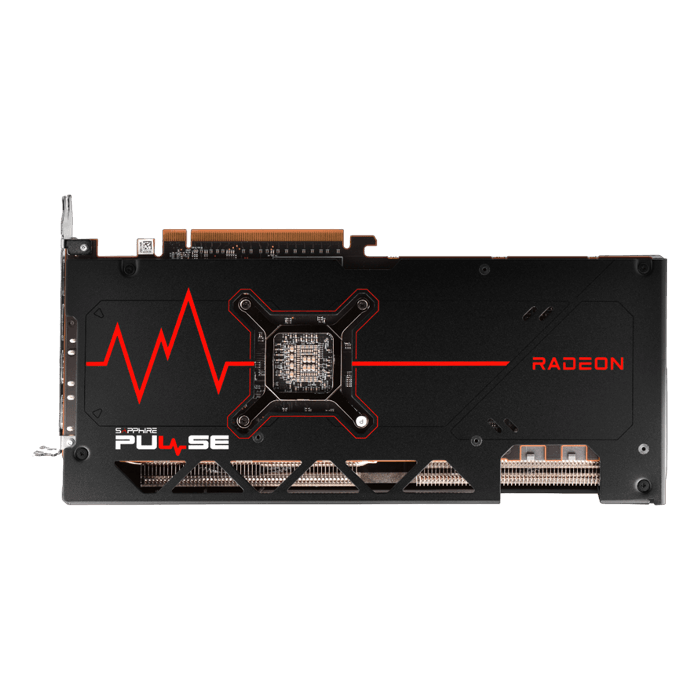

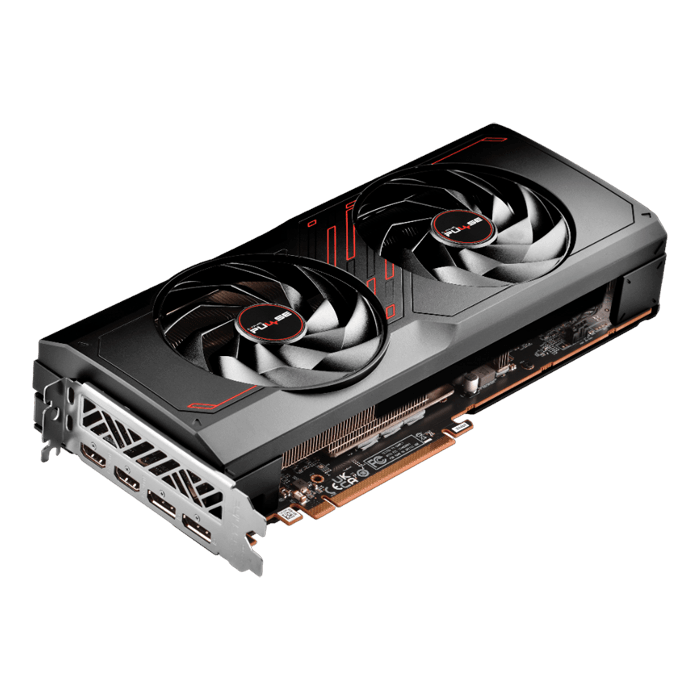

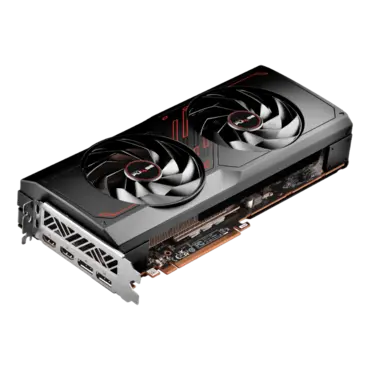

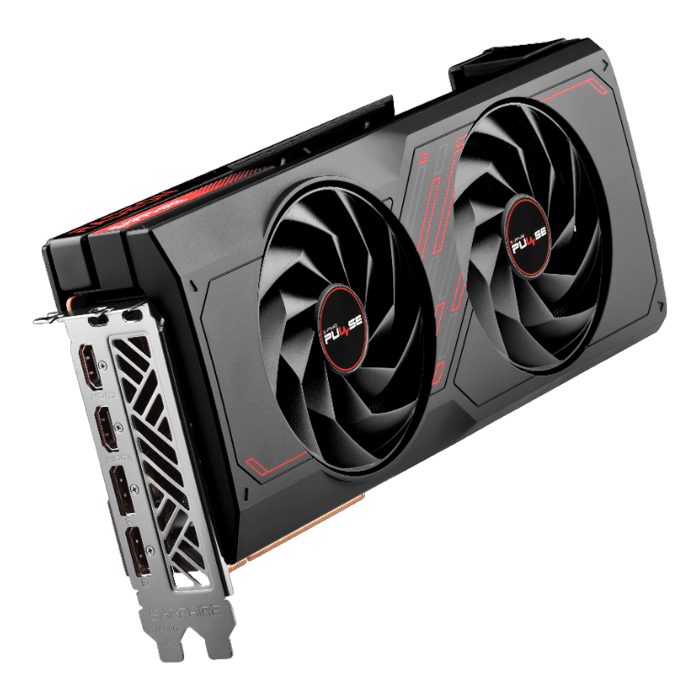

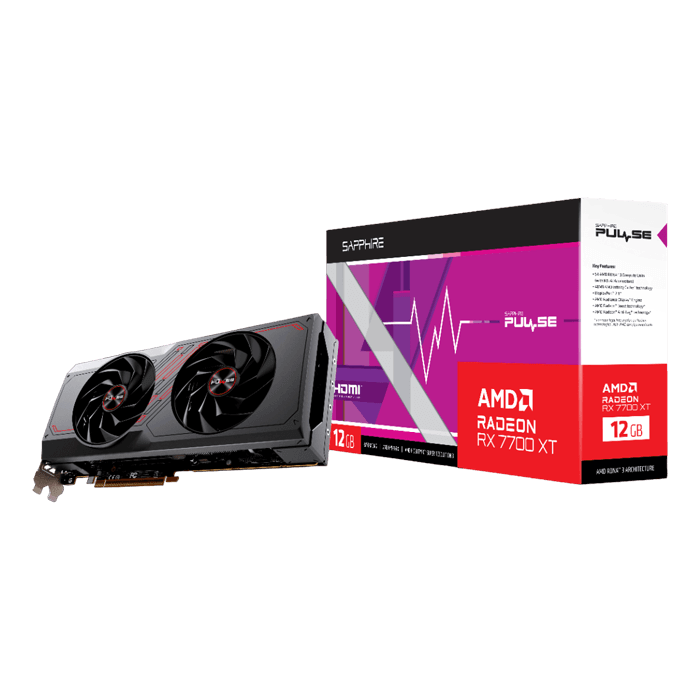

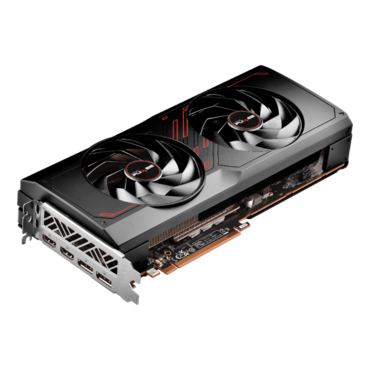

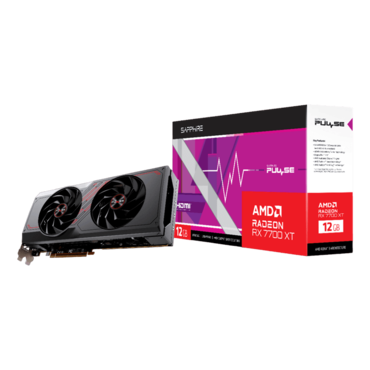

Radeon™ RX 7700 XT PULSE, 2171 - 2544MHz, 12GB GDDR6, Graphics Card

Quantity:
  • SKU: 16612027
  • Manufacturer: SAPPHIRE
  • MPN: 11335-04-20G
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$463.43
Quantity:
GPU AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
  • Boost Clock: Up to 2544 MHz
  • Game Clock: Up to 2171 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 3456
Compute Units 54 CU (with RT+AI Accelerators)
Infinity Cache 48MB
Ray Accelerators 54
Memory Size/Bus 12GB/192 bit GDDR6
Memory Clock 18 Gbps Effective
Displays Maximum 4 Displays
Resolution
  • HDMI™: 7680×4320
  • DisplayPort 2.1: 7680×4320
Interface PCI-Express 4.0 x16
Output
  • 2x HDMI
  • 2x DisplayPort
BIOS Support
  • UEFI
Game Index 1440P
Sapphire Features
  • Digital Power Design
  • Ultra High Performance Conductive Polymer Aluminum Capacitors
  • Fuse Protection
  • High TG Copper PCB
  • Optimized Composite Heatpipe
  • Dual-X Cooling Technology
  • Intelligent Fan Control
  • Precision Fan Control
  • Metal Backplate
  • Angular Velocity Fan Blade
  • Dual-Ball Bearing Fans
  • TriXX Supported
  • TriXX Boost
AMD Features
  • AMD RDNA™ 3 Architecture
  • 54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
  • 48MB AMD Infinity Cache™ Technology
  • DisplayPort™ 2.1Support
  • AMD Radiance Display™ Engine
  • 12GB GDDR6 on 192-Bit Memory Bus
  • PCI® Express 4.0 ready
  • AMD FidelityFX™ Super Resolution technology
  • Microsoft® DirectX® 12 Ultimate Support
  • Microsoft® DirectStorage Support
  • Vulkan® Optimized
  • AMD Smart Technologies
  • AMD Software: Adrenalin Edition™
  • AMD Noise Suppression
  • AMD Privacy View
  • AMD Radeon™ Super Resolution technology
  • AMD Link
  • AMD FreeSync™ technology
Cooling 2 Fans
Form Factor 2.5 slot, ATX
Dimension: 280(L)X 128.75(W)X 52.57 (H)mm
Power Consumption 230W Total Board Power
OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
  • Minimum 700 Watt Power Supply
  • 2 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
