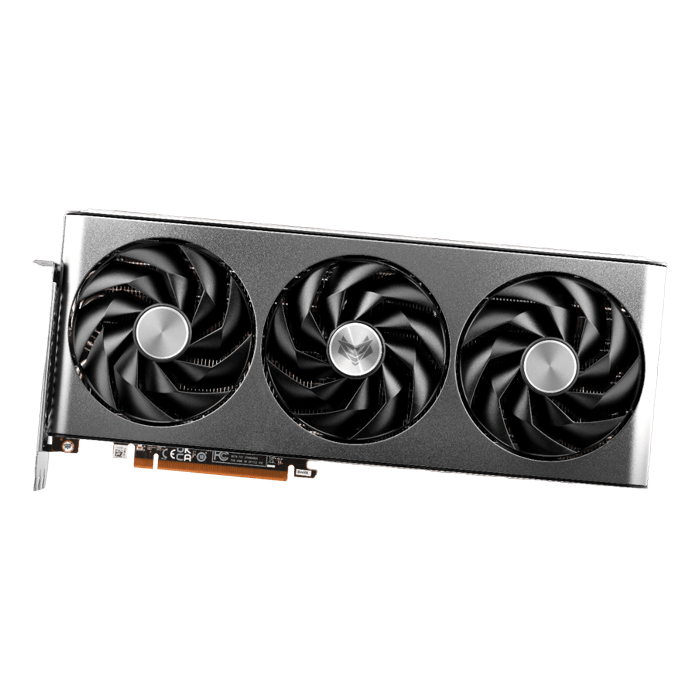

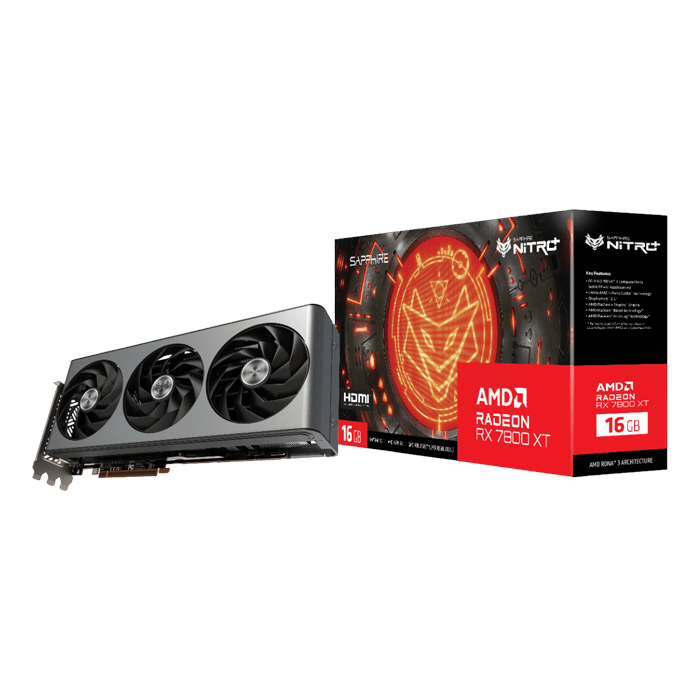

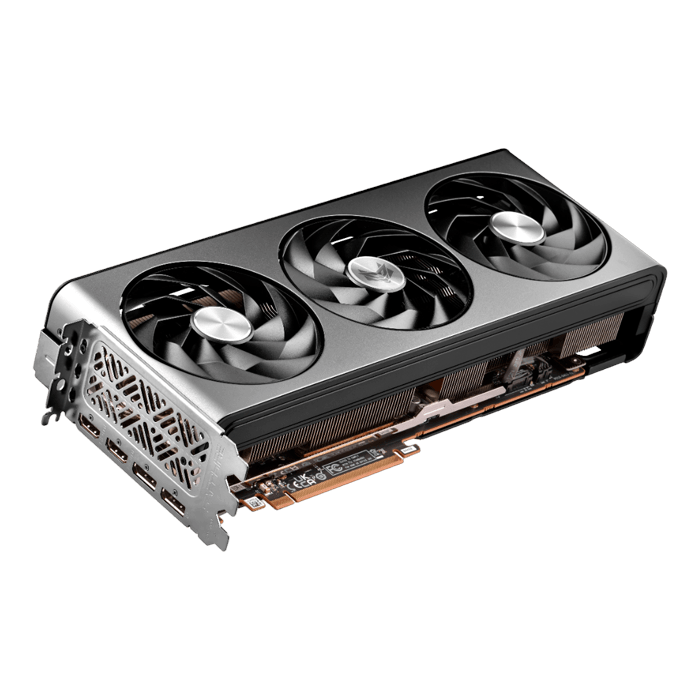

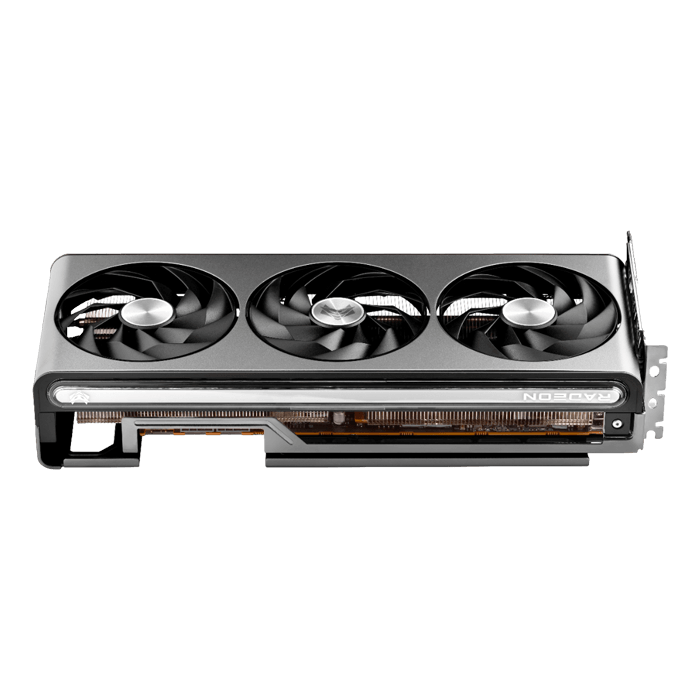

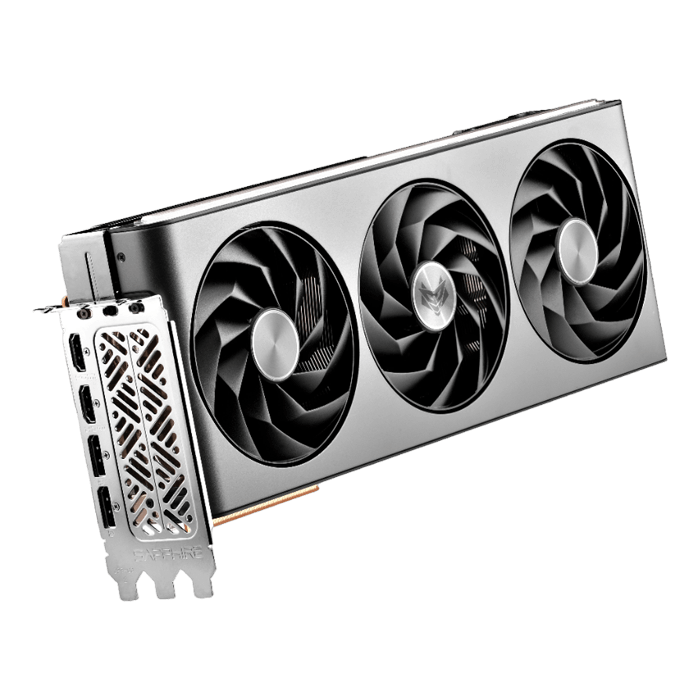

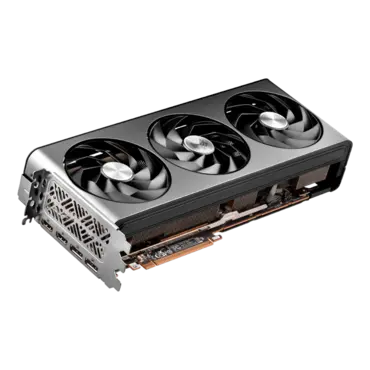

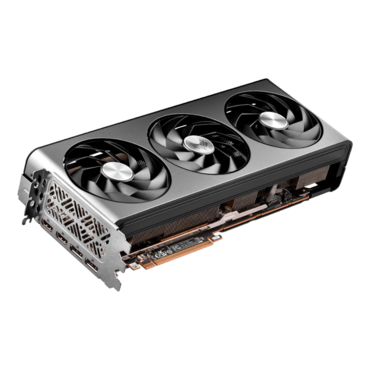

Radeon™ RX 7800 XT NITRO+, 2254 - 2565MHz, 16GB GDDR6, Graphics Card

Quantity:
  • SKU: 16610862
  • Manufacturer: SAPPHIRE
  • MPN: 11330-01-20G
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$638.23
Quantity:
Radeon™ RX 7800 XT NITRO+, 2254 - 2565MHz, 16GB GDDR6, Graphics Card

Cold Rolled Steel Frame

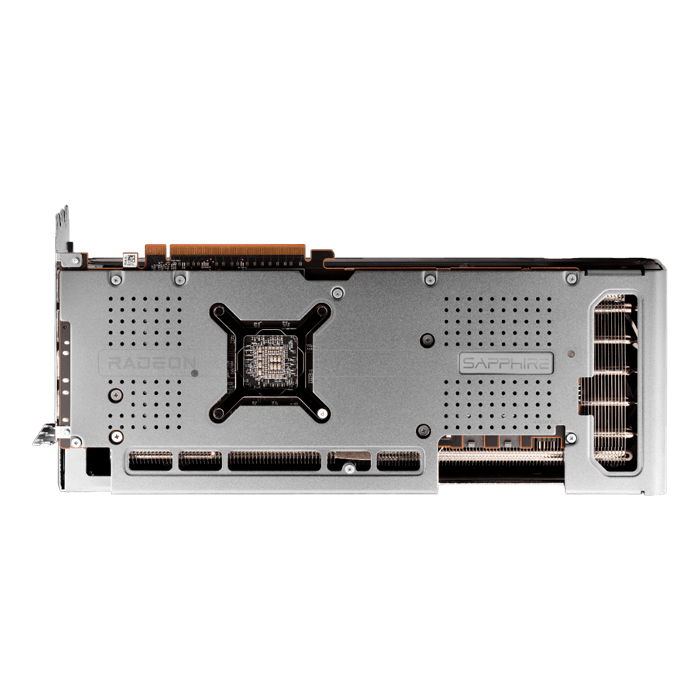

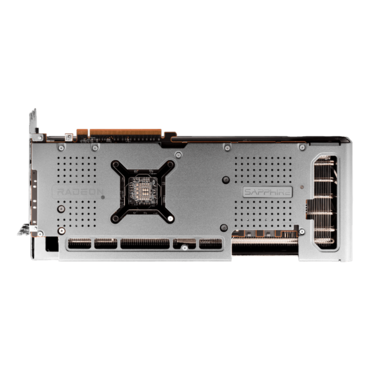

Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon™ RX 7800 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.

  • GPU: Boost Clock: Up to 2565 MHz
  • GPU: Game Clock: Up to 2254 MHz
  • Memory: 16GB/256 bit DDR6. 19.5 Gbps Effective
  • Stream Processors: 3840
  • RDNA™ 3 Architecture
  • Ray Accelerator: 60
GPU AMD Radeon™ RX 7800 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
  • Boost Clock: Up to 2565 MHz
  • Game Clock: Up to 2254MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 3840
Compute Units 60 CU (with RT+AI Accelerators)
Infinity Cache 64MB
Ray Accelerators 60
Memory Size/Bus 16GB/256 bit GDDR6
Memory Clock 19.5 Gbps Effective
Displays Maximum 4 Displays
Resolution
  • HDMI™: 7680×4320
  • DisplayPort 2.1: 7680×4320
Interface PCI-Express 4.0 x16
Output
  • 2x HDMI
  • 2x DisplayPort
BIOS Support
  • Dual UEFI
Game Index 4K
Sapphire Features
  • Dual BIOS
  • TriXX Software Switch
  • Premium Digital Power Design
  • Ultra High Performance Conductive Polymer Aluminum Capacitors
  • Fuse Protection
  • Tri-X Cooling Technology
  • High TG Copper PCB
  • Optimized Composite Heatpipe
  • Intelligent Fan Control
  • Precision Fan Control
  • Metal Backplate with ARGB
  • ARGB Light Bar
  • Two-Ball Bearing Fans
  • Angular Velocity Fan Blade
  • Assistive System Fan Control
  • Aluminum Alloy Frame
  • Dedicated VRM Cooling
  • Wave Fin Design
  • V Shape Fin Design for GPU Cooling
  • TriXX Supported
  • Fan Check
  • Fan Quick Connect
  • TriXX Boost
  • NITRO Glow
  • External RGB LED MB Synchronization
Accessories Bundled
  • Graphics Card Supporter
  • ARGB Extension Cable
AMD Features
  • AMD RDNA™ 3 Architecture
  • 60 AMD RDNA™ 3 Compute Units
  • 64MB AMD Infinity Cache™ Technology
  • DisplayPort™ 2.1 Support
  • AMD Radiance Display™ Engine
  • 16GB GDDR6 on 256-Bit Memory Bus
  • PCI® Express 4.0 ready
  • AMD FidelityFX™ Super Resolution technology
  • Microsoft® DirectX® 12 Ultimate Support
  • Microsoft® DirectStorage Support
  • Vulkan® Optimized
  • AMD Smart Technologies
  • AMD Software: Adrenalin Edition™
  • AMD Noise Suppression
  • AMD Privacy View
  • AMD Radeon™ Super Resolution technology
  • AMD Link
  • AMD FreeSync™ Technology
Cooling 3 Fans
Form Factor 3 slot, ATX
Dimension: 320(L)X 134.85(W)X 61.57 (H)mm
Power Consumption 288W Total Board Power
OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
  • Minimum 700 Watt Power Supply
  • 2 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
