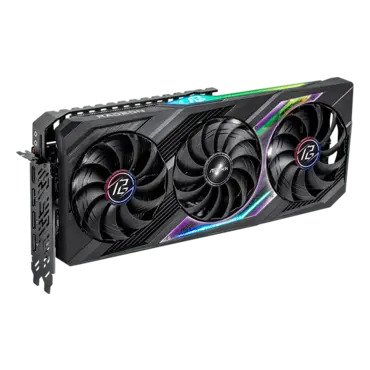

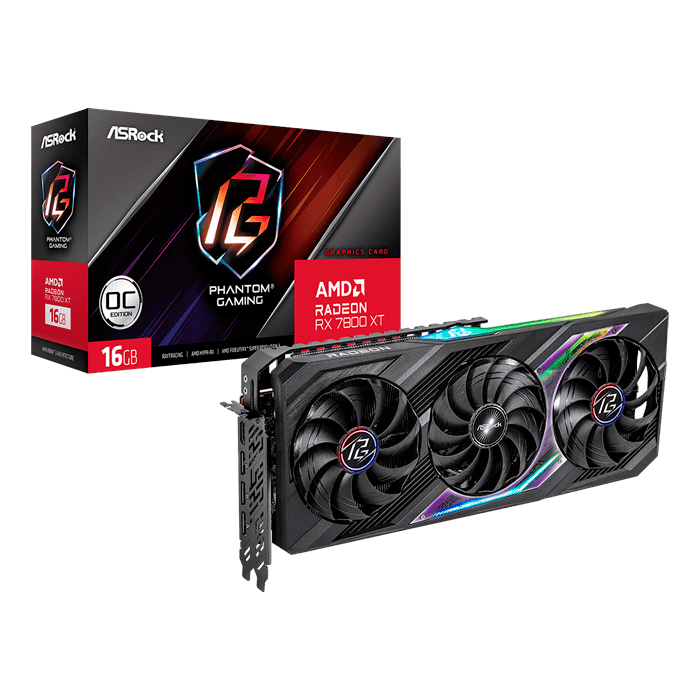

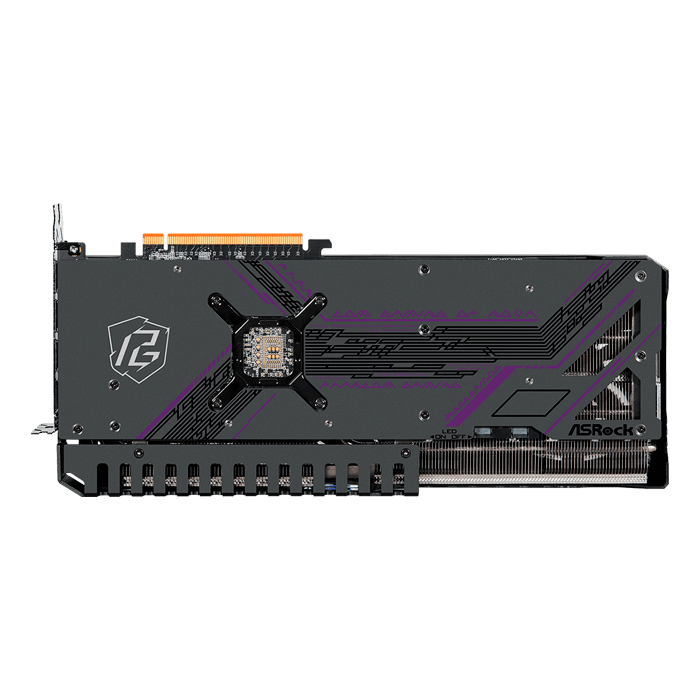

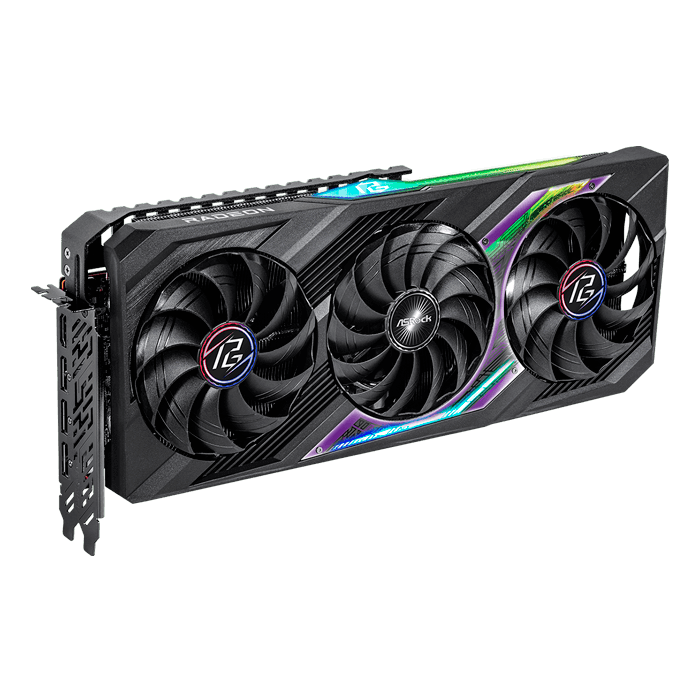

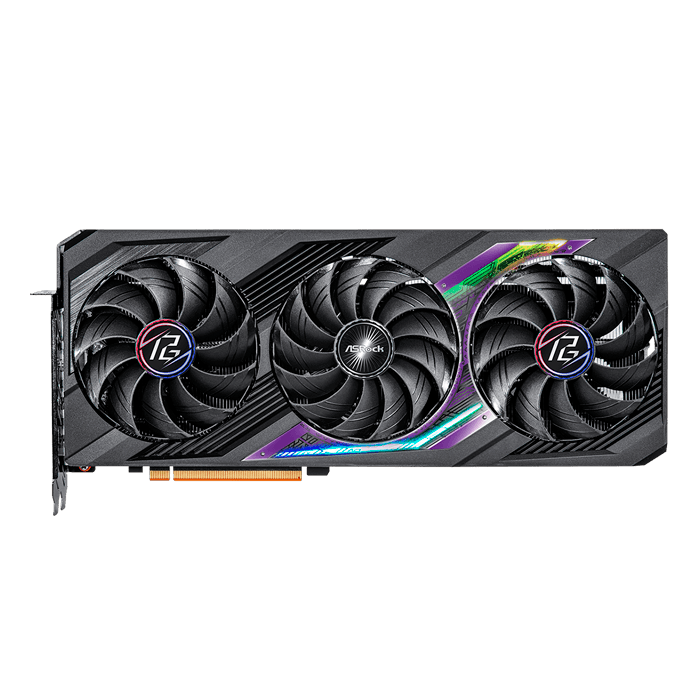

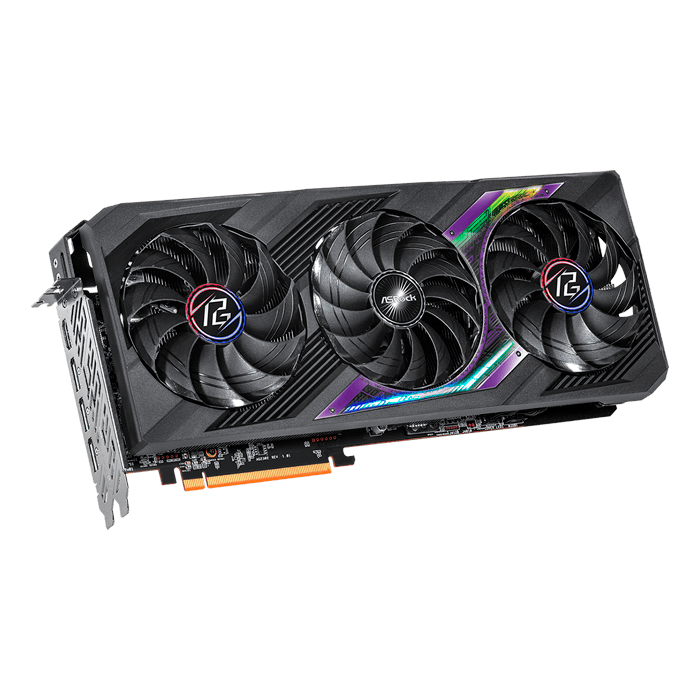

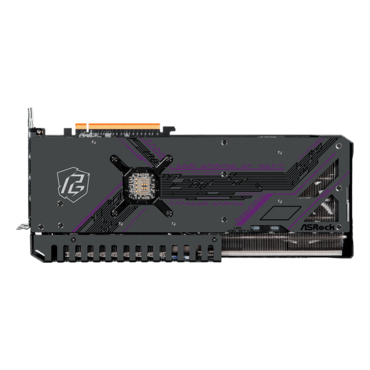

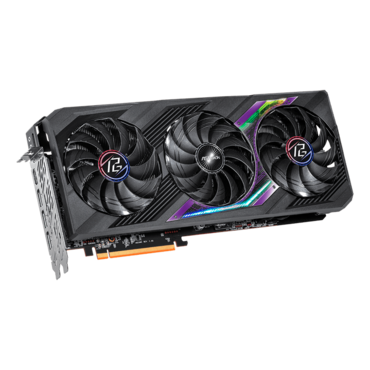

Radeon™ RX 7800 XT Phantom Gaming 16GB OC, 2254 - 2565MHz, 16GB GDDR6, Graphics Card
- SKU: 16612021
- Manufacturer: ASROCK
- MPN: RX7800XT PG 16GO
- Availability: CONTACT US
Price
$614.20
Clock: GPU / Memory
- Boost Clock*: Up to 2565 MHz/ 19.5 Gbps
- Game Clock**: 2254 MHz/ 19.5 Gbps
Key Specification
- AMD Radeon™ RX 7800 XT
- 16GB GDDR6 on 256-bit Memory Bus
- 60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 64MB AMD Infinity Cache™ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express4.0 Support
- 2 x 8-pin Power Connector
- Output: 3 x DisplayPort™ 2.1***, 1 x HDMI® 2.1
Key Features
- Polychrome SYNC
- Phantom Gaming 3X Cooling System
- Stylish Metal Backplate
- Striped Ring Fan
- Air Deflecting Fin
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card
- ASRock Tweak 2.0
| Graphics Engine | - AMD Radeon™ RX 7800 XT Graphics |
| Bus Standard | - PCI® Express4.0 x16 |
| DirectX | - 12 Ultimate |
| OpenGL | - 4.6 |
| Memory | - GDDR6 16GB |
| Engine Clock |
- Boost Clock up to: 2565 MHz - Game Clock: 2254 MHz |
| Stream Processors | - 3840 |
| Compute Units | - 60 |
| Memory Clock | - 19.5Gbps |
| Memory Interface | - 256-bit |
| Resolution | - Digital Max Resolution: 7680x4320 |
| Interface |
- 1 x HDMI™ 2.1 (up to FRL 12Gbps) - 3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps) |
| HDCP | - Yes |
| Multi-view | - 4 |
| Recommended PSU | - 800W |
| Power Connector | - 2 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 328 x 140 x 53mm |
| Net Weight | -1450g |
