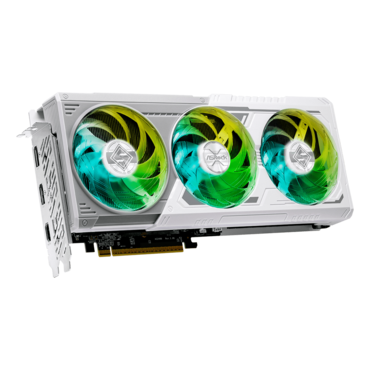

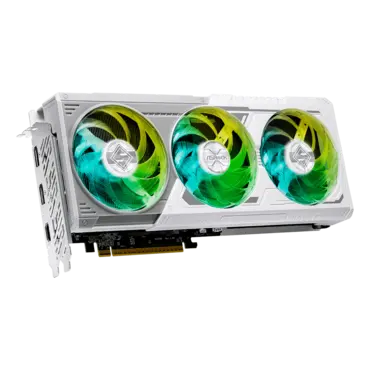

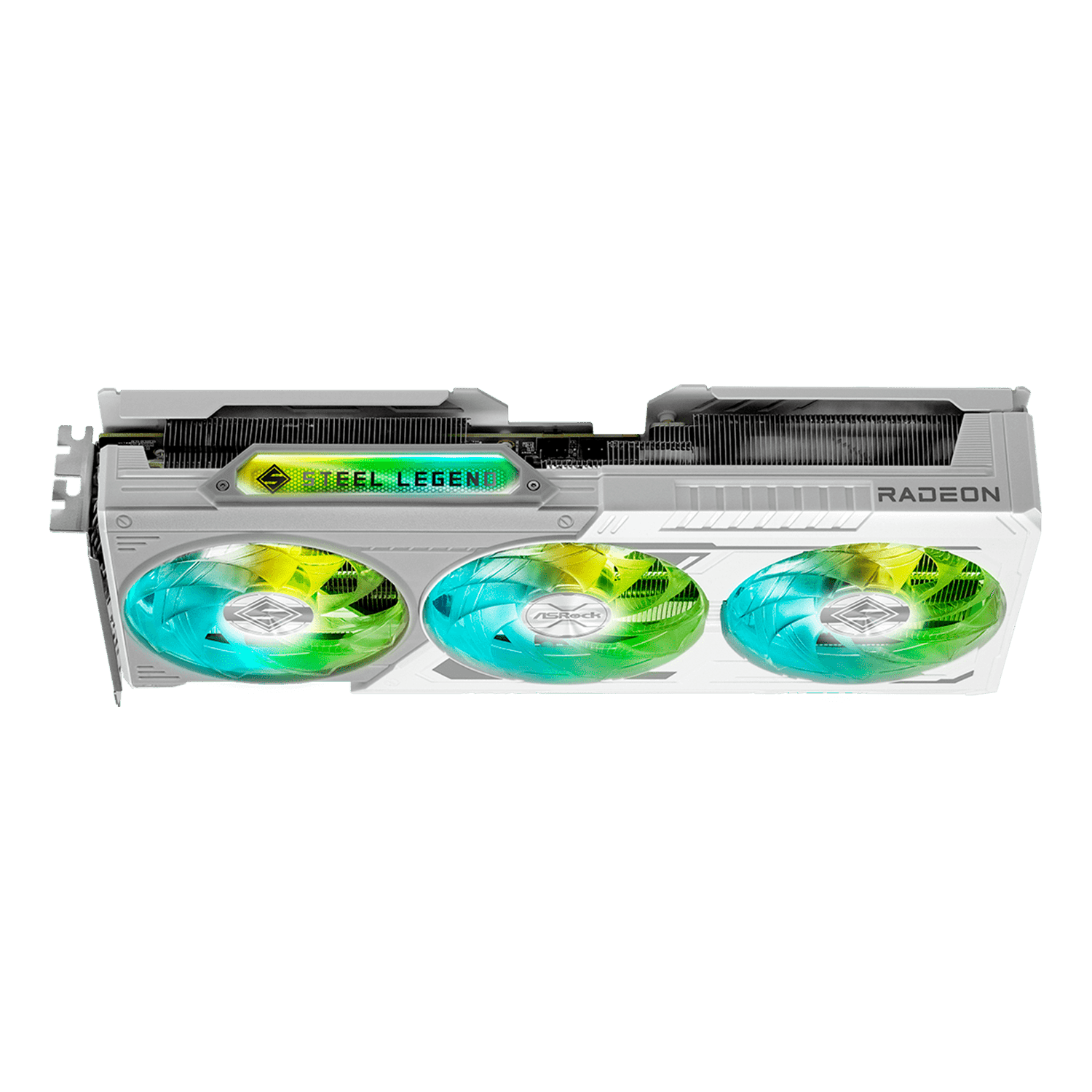

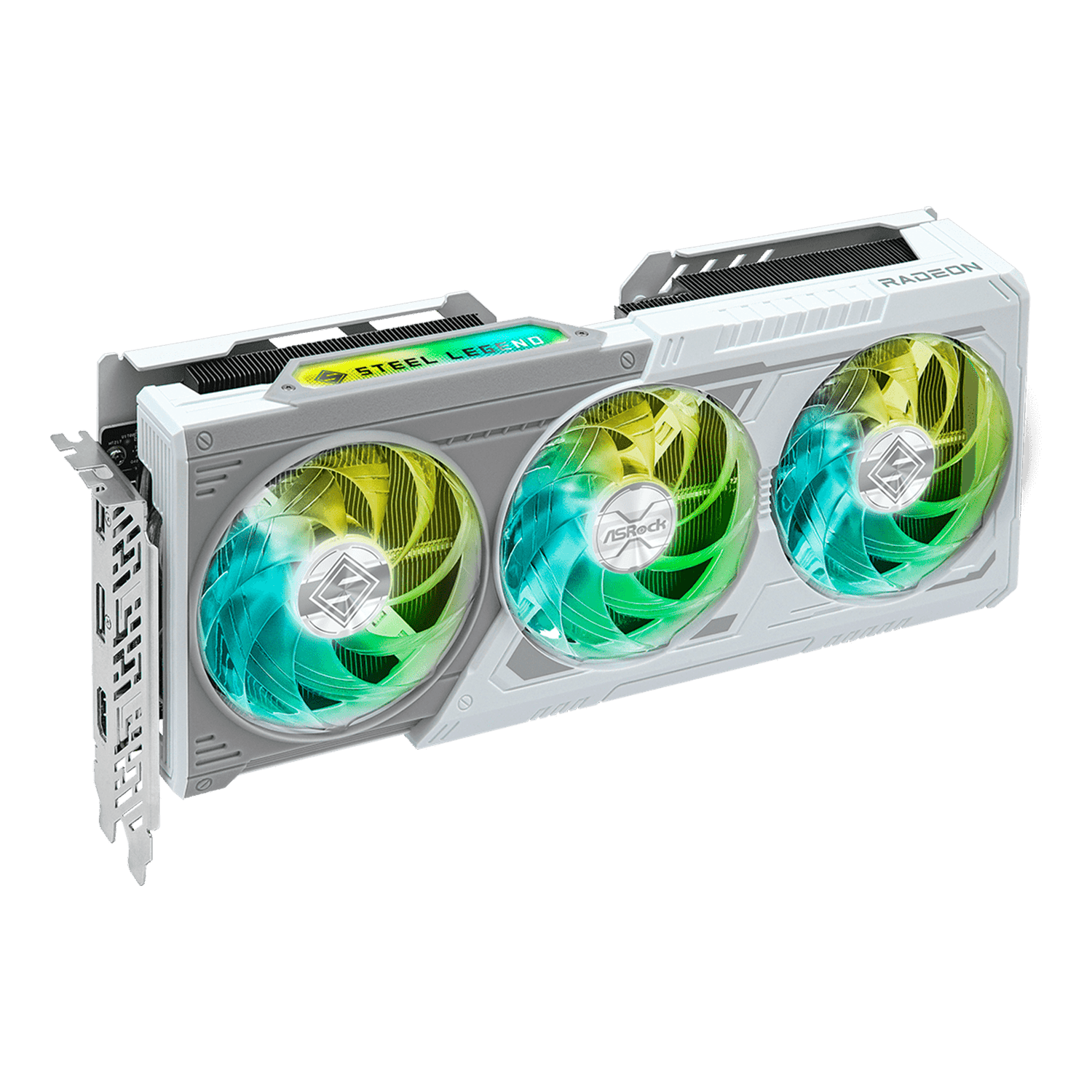

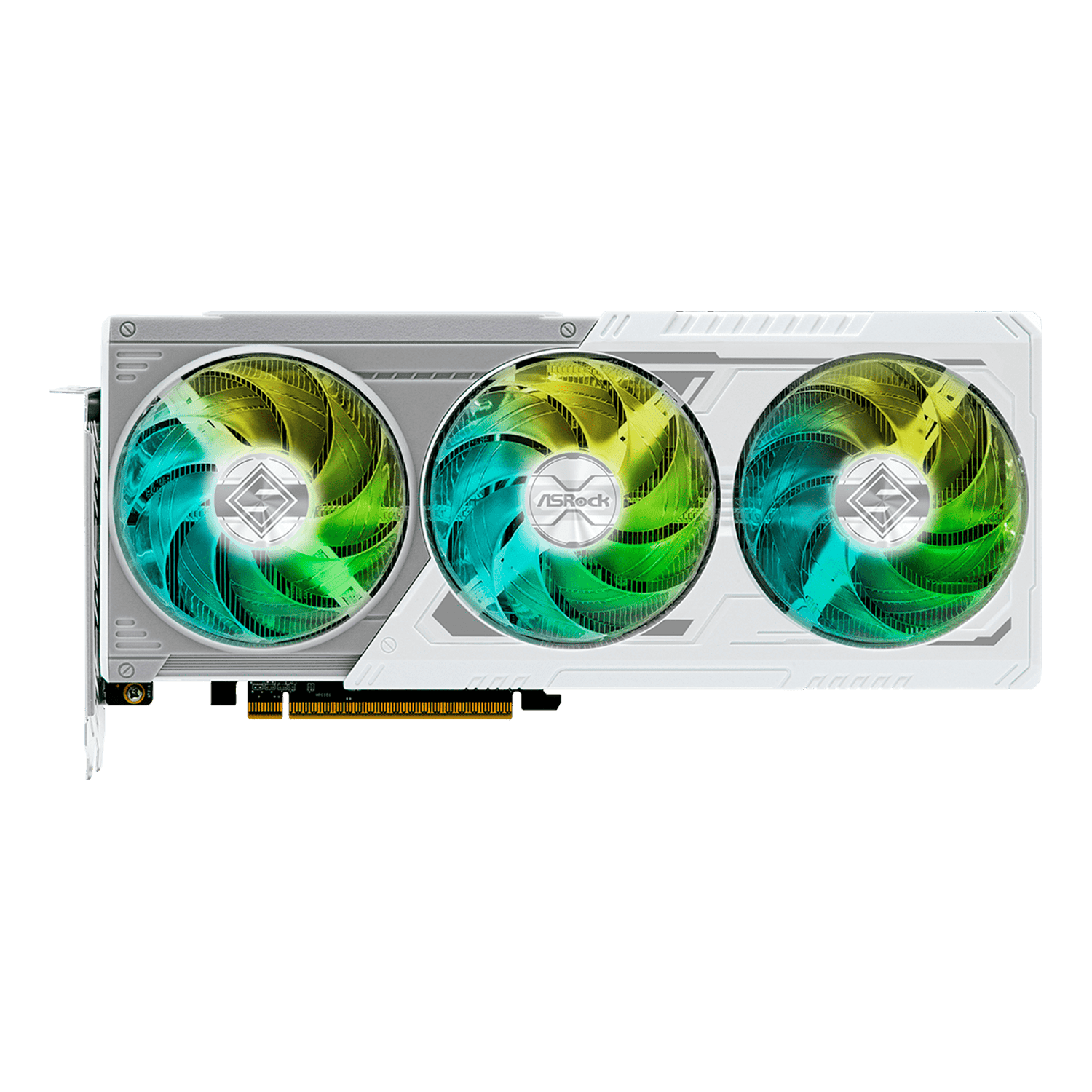

Radeon™ RX 9060 XT Steel Legend 16GB OC, 2780 - 3320MHz, 16GB GDDR6, Graphics Card
- SKU: 19059646
- Manufacturer: ASROCK
- MPN: RX9060XT SL 16GO
- Availability: LOW STOCK
Price
$526.50
-
Clock: GPU / Memory
Boost Clock*: Up to 3320 MHz / 20 Gbps
Game Clock**: 2780 MHz / 20 Gbps -
Key Specification
AMD Radeon™ RX 9060 XT GPU
16GB GDDR6 on 128-Bit Memory Bus
AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
1 x 8-pin Power Connector
2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b -
Key Features
Polychrome SYNC
Triple Fan Design
Striped Ring Fan
Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card
| Graphics Engine | - AMD Radeon™ RX 9060 XT |
| Bus Standard | - PCI® Express 5.0 x16 |
| DirectX | - 12 Ultimate |
| OpenGL | - 4.6 |
| Memory | - 16GB GDDR6 |
| Engine Clock |
- Boost Clock*: Up to 3320 MHz - Game Clock**: 2780 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal
conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | - 2048 |
| Memory Clock | - 20 Gbps |
| Memory Interface | - 128-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 |
| Interface |
- 2x DisplayPort 2.1a - 1x HDMI 2.1b |
| HDCP | - Yes |
| Multi-view | - 3 |
| Recommended PSU | - 550W |
| Power Connector | - 1x 8-pin |
| Accessories | - 1x Quick Installation Guide |
| Dimensions | - 298 x 131 x 51 mm, 2.55-slot |
| Net Weight | - 967 g |
