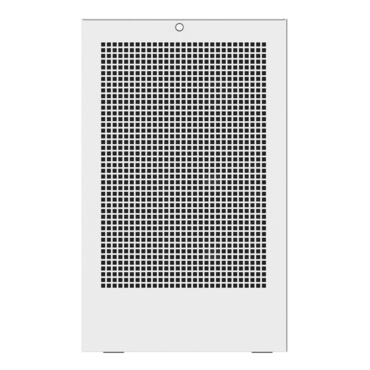

Revolt 3, No PSU, Mini-TX, White, Mini Tower Case

  • SKU: 14682570
  • Manufacturer: HYTE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

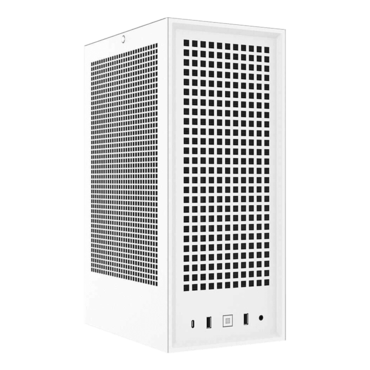

Revolt 3, No PSU, Mini-TX, White, Mini Tower Case

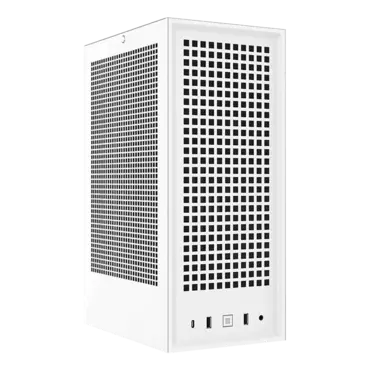

We designed REVOLT 3 to be a compact ITX case unlike any other. Access your PC from nearly any angle to upgrade and modify. There's a place for everything - including the latest graphics cards!* With its clean design and attention to detail, this case will be sure to turn heads wherever you take it.

  • Separate airflow paths for processor and graphics cooling.
  • Vertical GPU orientation - no riser cables :)

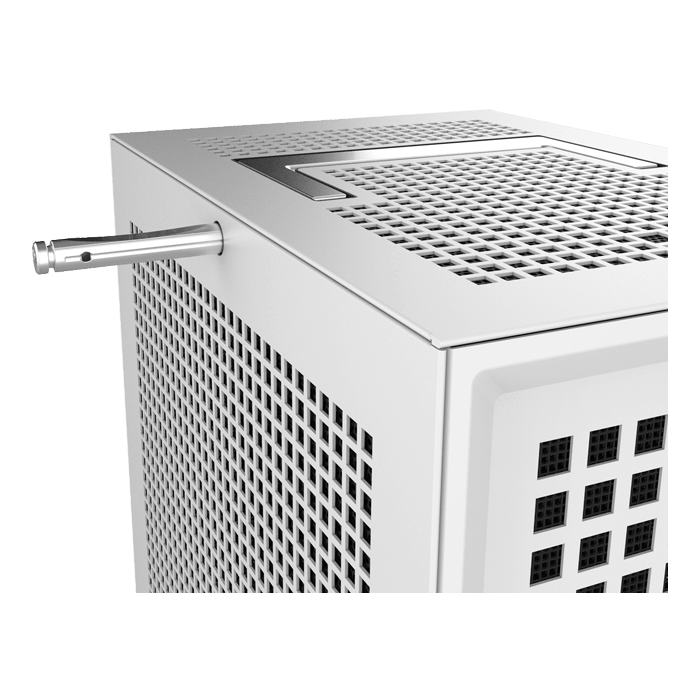

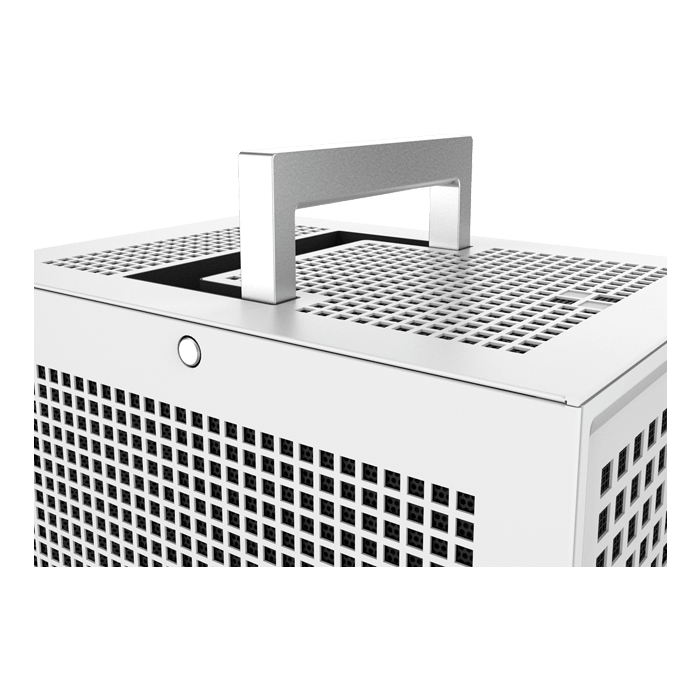

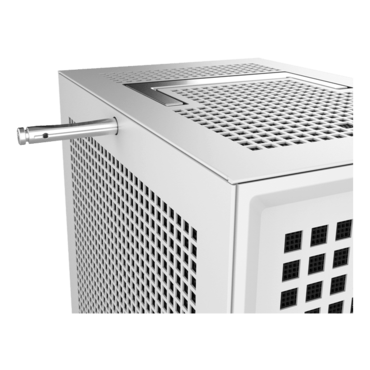

  • Pop-out handle and accessory holders, for maximum portability.
  • Radiator door swings open for easy upgrades

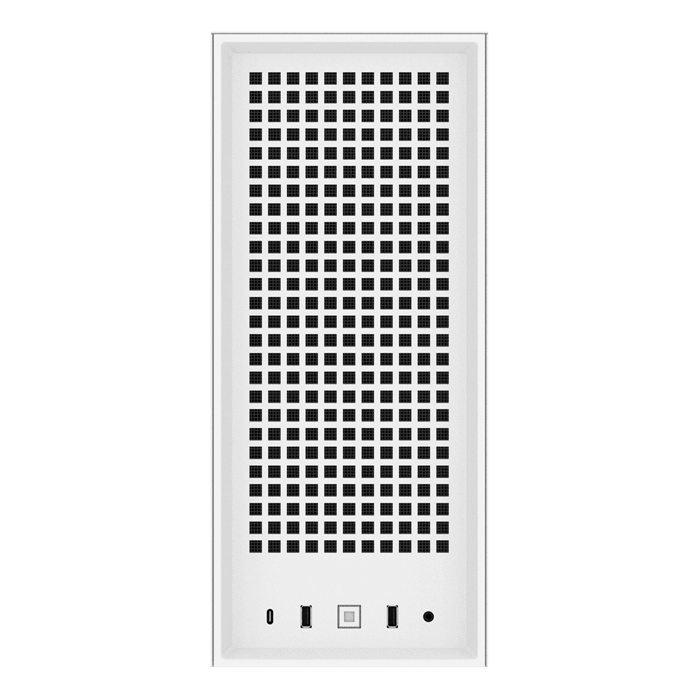

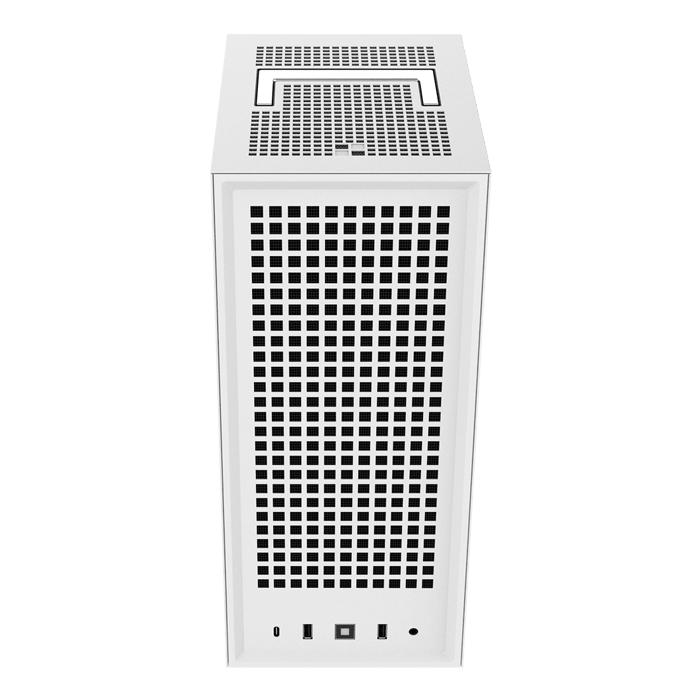

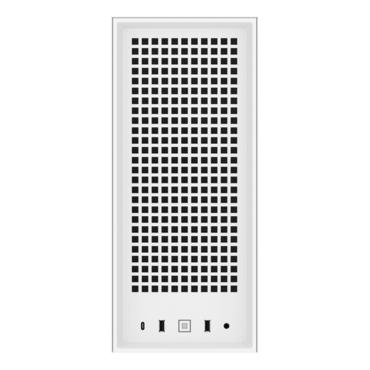

  • Front I/O for a clean and simple setup


Aluminum, Steel, ABS


Black, White


253 x 178 x 409mm (9.9" D x 7" W x 16.1" H)

Motherboard Size


Graphics Card

Most cards up to 335 x 140 x 58mm*

Radiator Support

120, 240, 140, 280mm up to 35mm thick

CPU Cooler Height

Up to 140mm

Top Fan Support

80x15 mm (x1)

Handle Weight Limit

30lbs. (14kg)

Expansion Slots


Internal 3.5 Bays


Internal 2.5 Bays


Front Interfaces

USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio/Mic Combo x1

Dust Filters

Front (Metal Mesh), Top, Slides, Rear (Magnetic)

Case Weight

14lbs (6.3kg) - Including PSU

Power Supply

SFX, SFX-L (700W 80 Plus Gold optional)
