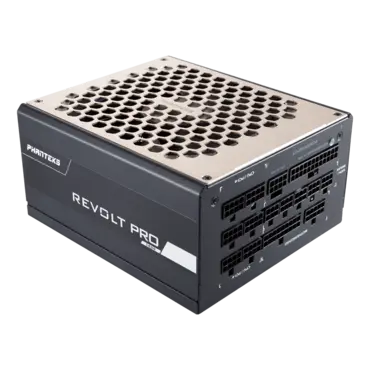

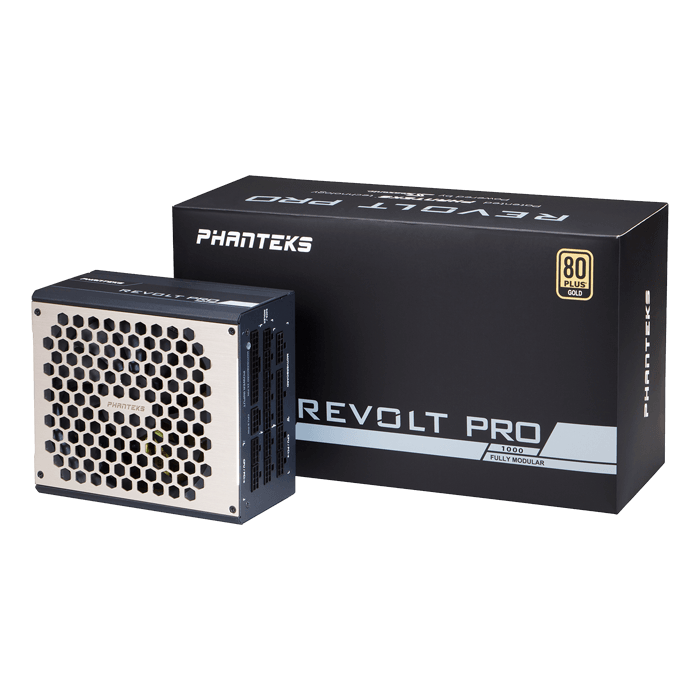

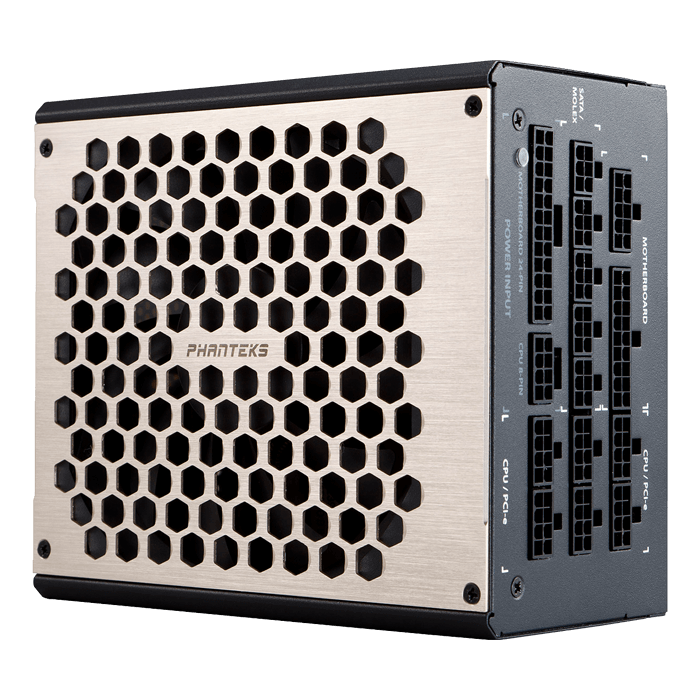

Revolt Pro, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13420052
- Manufacturer: PHANTEKS
- MPN: PH-P1000GC
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$220.20
| Brand | Phanteks |
|---|---|
| Series | Revolt Pro |
| Model | PH-P1000GC |
| Type | ATX12V |
| Maximum Power | 1000W |

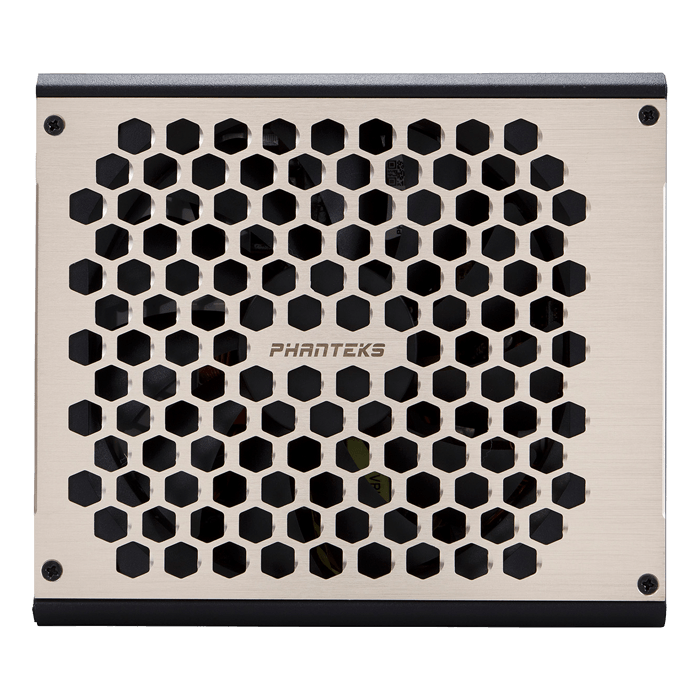

| Fans | 135mm FDB fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 4 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13 - 6.5A |
| Output | +5V@20A, +3.3V@20A, +12V@83A, [email protected], +5VSB@3A |
| MTBF | >50,000 Hours |
| Approvals | CTUVus / TUV / CB / CCC / BSMI / EAC |
| Dimensions | 3.39" x 5.91" x 6.69" |
| Max PSU Length | 170 mm |

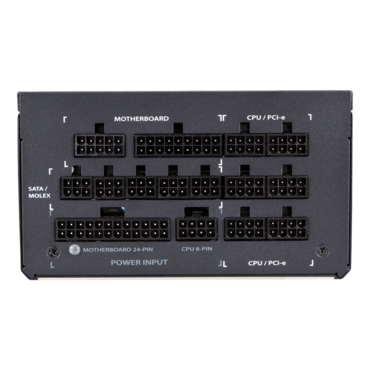

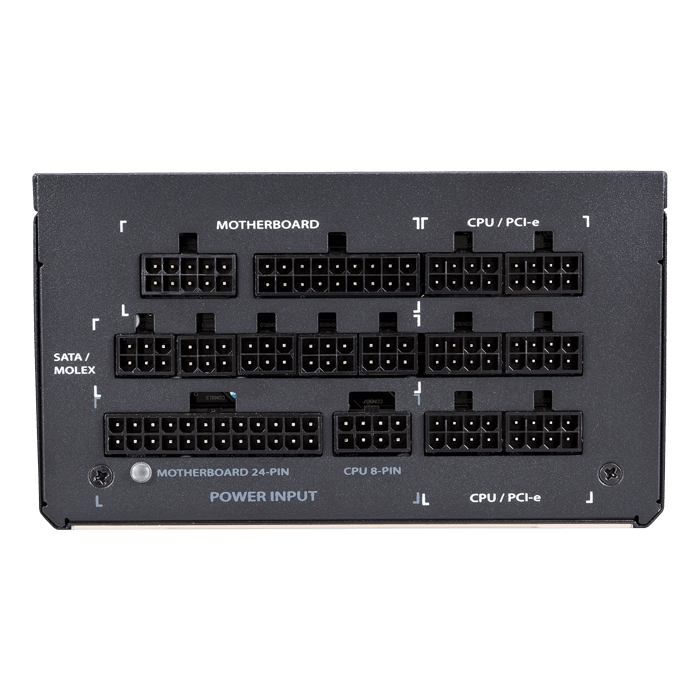

| Connectors |
1 x Mainboard (24Pin) 2 x CPU (8/4+4Pin) 4 x PCI-E (6+2Pin) 4 x SATA 1 x Molex |
