Revolt Pro, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 13419999
- Manufacturer: PHANTEKS
- MPN: PH-P850GC
- Availability: TEMPORARILY OUT OF STOCK
Price
$163.86
| Brand | Phanteks |
|---|---|
| Series | Revolt Pro |
| Model | PH-P850GC |
| Type | ATX12V |
| Maximum Power | 850W |
| Fans | 1 x 135mm FDB fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 4 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12 - 6 A |
| Output | +3.3V@20A, +5V@20A, +12V@70A, [email protected], +5VSB@3A |
| MTBF | >100,000 Hours |
| Dimensions | 3.39" x 5.91" x 6.69" |
| Max PSU Length | 170 mm |

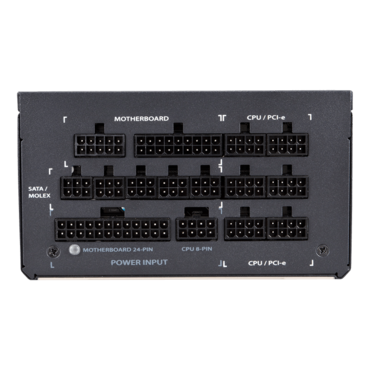

| Connectors |
1 x 24-pin Connector 2 x CPU Connector 4 x PCI-e Connector 4 x SATA Connector 1 x Molex Connector |
