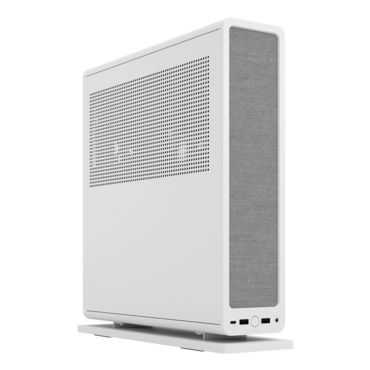

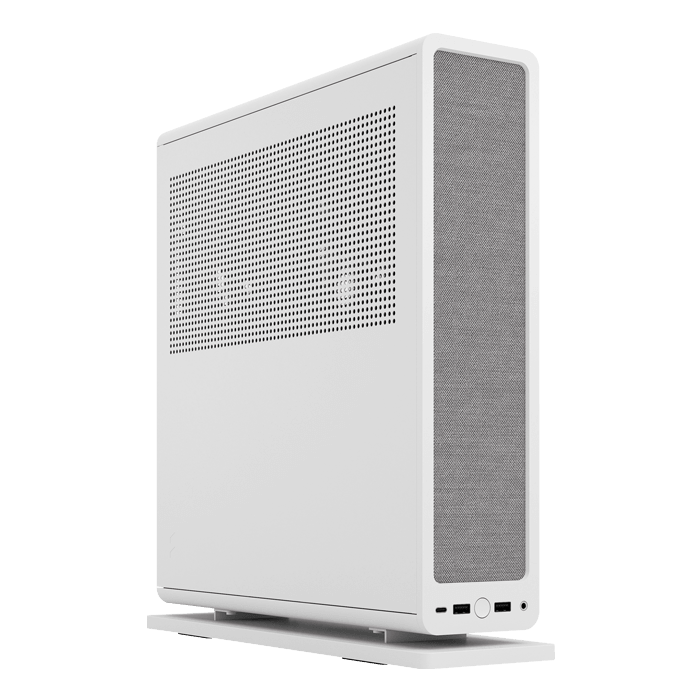

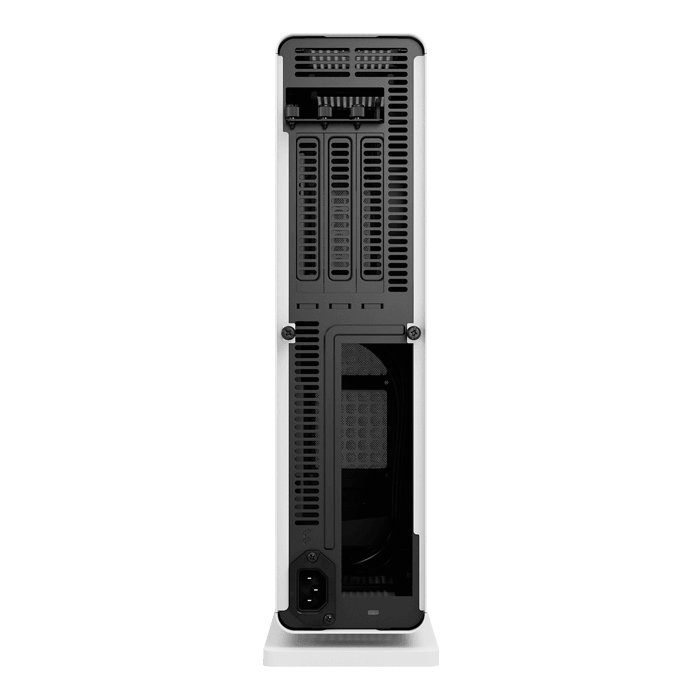

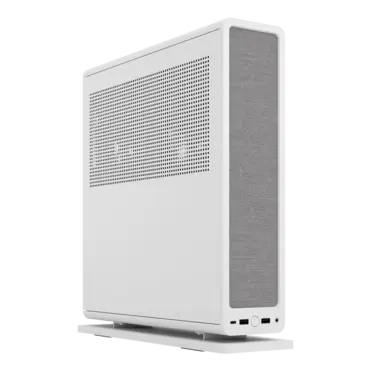

Ridge, No PSU, Mini-ITX, White, Slim Case
Quantity:
- SKU: 15312317
- Manufacturer: Fractal Design
- MPN: FD-C-RID1N-02
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$149.86
Ridge, No PSU, Mini-ITX, White, Slim Case
An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
| Specifications | |
| Dedicated 2.5" drive mounts | 4x included, 4x positions total |
| Expansion slots | 3-slot |

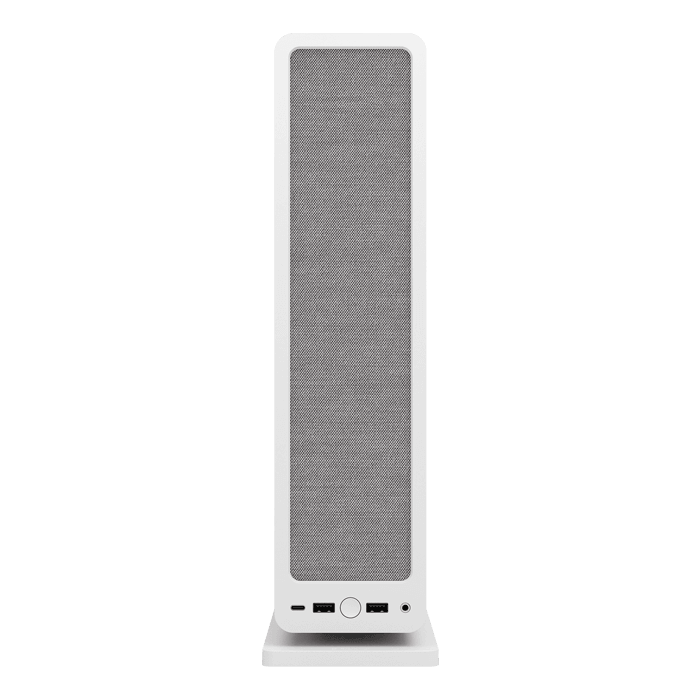

| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED |
| Total fan mounts | 2x 120/140 mm and 3x 80 mm |

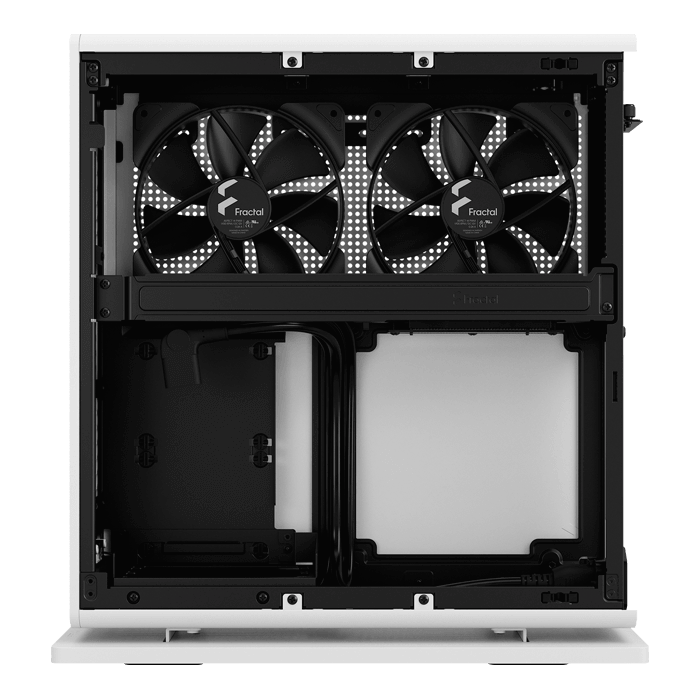

| Side fan | 2x 120/140 mm (2x PWM Aspect fan 140 mm included) |
| Top fan | 3x 80 mm (not included) |
| Cable routing space | 13,8 mm (behind PSU) |
| Tool-less slide with thumbscrew lock | Side panels |
| Captive thumbscrews | Side panels |
| Left side panel | Steel |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | Mini ITX |
| Power supply type | SFX, SFX-L |
| Side radiator | 120 mm when ≤175mm long GPUs are installed (280 mm without GPU) |
| PSU max length | SFX-L |
| GPU max length | 325 mm with SSD installed. 335 mm without SSD installed. |
| GPU max height | 125 mm with top fan(s) installed, 137 mm without top fans |
| GPU max thickness | 57 mm with 2x 140 mm fans installed, 82 mm without side fans |
| CPU cooler max height | 70 mm |
| Dimensions | |

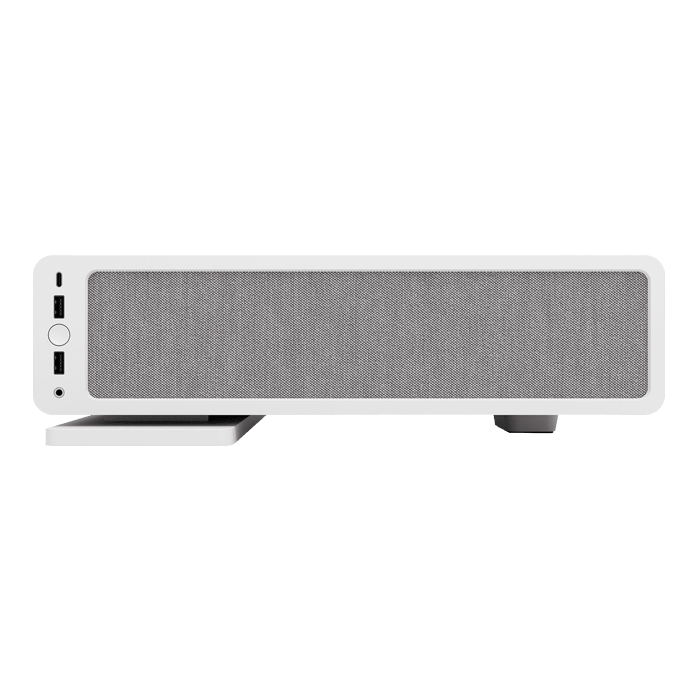

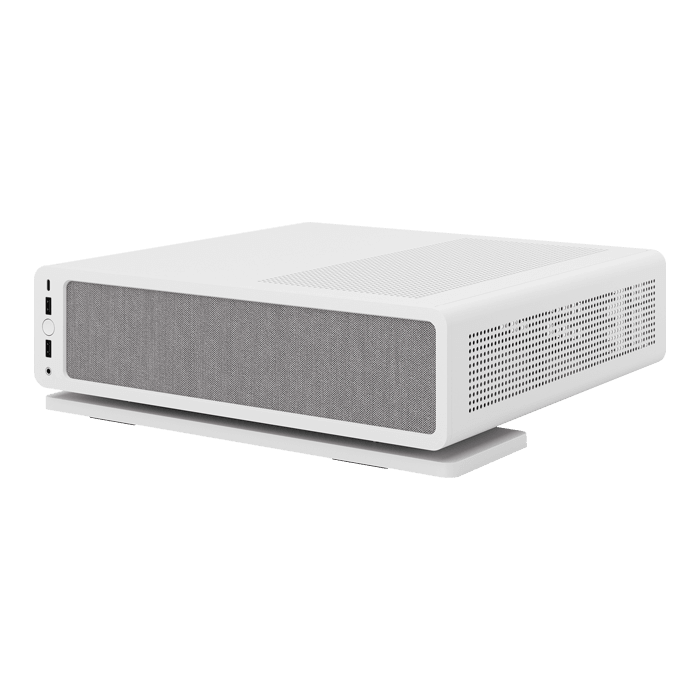

| Case dimensions (LxWxH) | Vertical: 74 x 395,4 x 110 mm Horizontal: 360 x 115 x 375 mm |
| Case dimensions w/o feet/protrusions/screws | 355 x 375 x 94,6 mm |
| Net weight | 4.3 kg |
| Package dimensions (LxWxH) | 426 x 167 x 431 mm |
| Gross weight | 5.5 kg |
| Volume | 12.6 liter |
| Other | |
| Package contents | Case, Accessory box, Manual |
| SKU | White: FD-C-RID1N-02 |
| EAN | White: 7340172703976 |
| UPC | White: 843276103972 |
| JAN | White: 4537694302500 |
| Warranty | 2 Years |
