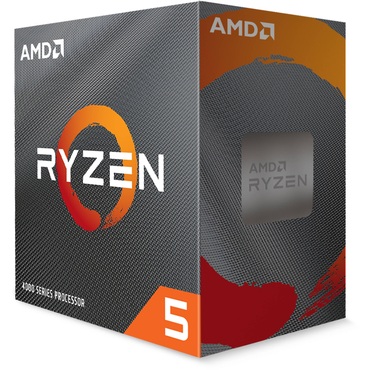

Ryzen™ 5 4500 6-Core 3.6 - 4.1GHz Turbo, AM4, 65W TDP, Retail Processor

Quantity:
  • SKU: 14894025
  • Manufacturer: AMD
  • MPN: 100-100000644BOX
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$91.42
Quantity:
General Specifications
Platform Desktop
Market Segment Mainstream Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 5 Desktop Processors
Consumer Use Yes
Regional Availability Global, China, NA, EMEA, APJ, LATAM
Former Codename "Renoir"
Architecture "Zen 2"
# of CPU Cores 6
Multithreading (SMT) Yes
# of Threads 12
Max. Boost Clock Up to 4.1GHz
Base Clock 3.6GHz
L1 Cache 384KB
L2 Cache 3MB
L3 Cache 8MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 7nm FinFET
CPU Compute Die (CCD) Size 180mm²
Package Die Count 1
Unlocked for Overclocking  Yes
CPU Socket AM4
Socket Count 1P
Supporting Chipsets X570 X470 X370 B550 B450 B350 A520 A320
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) AMD Wraith Stealth
Max. Operating Temperature (Tjmax) 95°C
Launch Date
*OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 0
Native SATA Ports 2
PCI Express® Version PCIe 3.0
Native PCIe® Lanes (Total/Usable) 24/20
Additional Usable PCIe Lanes from Motherboard AMD X570

16x Gen 3

AMD X470

2x Gen 3

AMD X470

8x Gen 2

NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR4
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
System Memory Specification Up to 3200MHz
Max Memory Speed 2x1R

DDR4-3200

2x2R

DDR4-3200

4x1R

DDR4-2933

4x2R

DDR4-2667

ECC Support No
Graphics Capabilities
Integrated Graphics No
Graphics Model Discrete Graphics Card Required
Product IDs
Product ID Boxed 100-100000644BOX
Product ID Tray 100-000000644
Key Features
Supported Technologies AMD StoreMI Technology AMD "Zen 2" Core Architecture AMD Ryzen™ VR-Ready Premium
