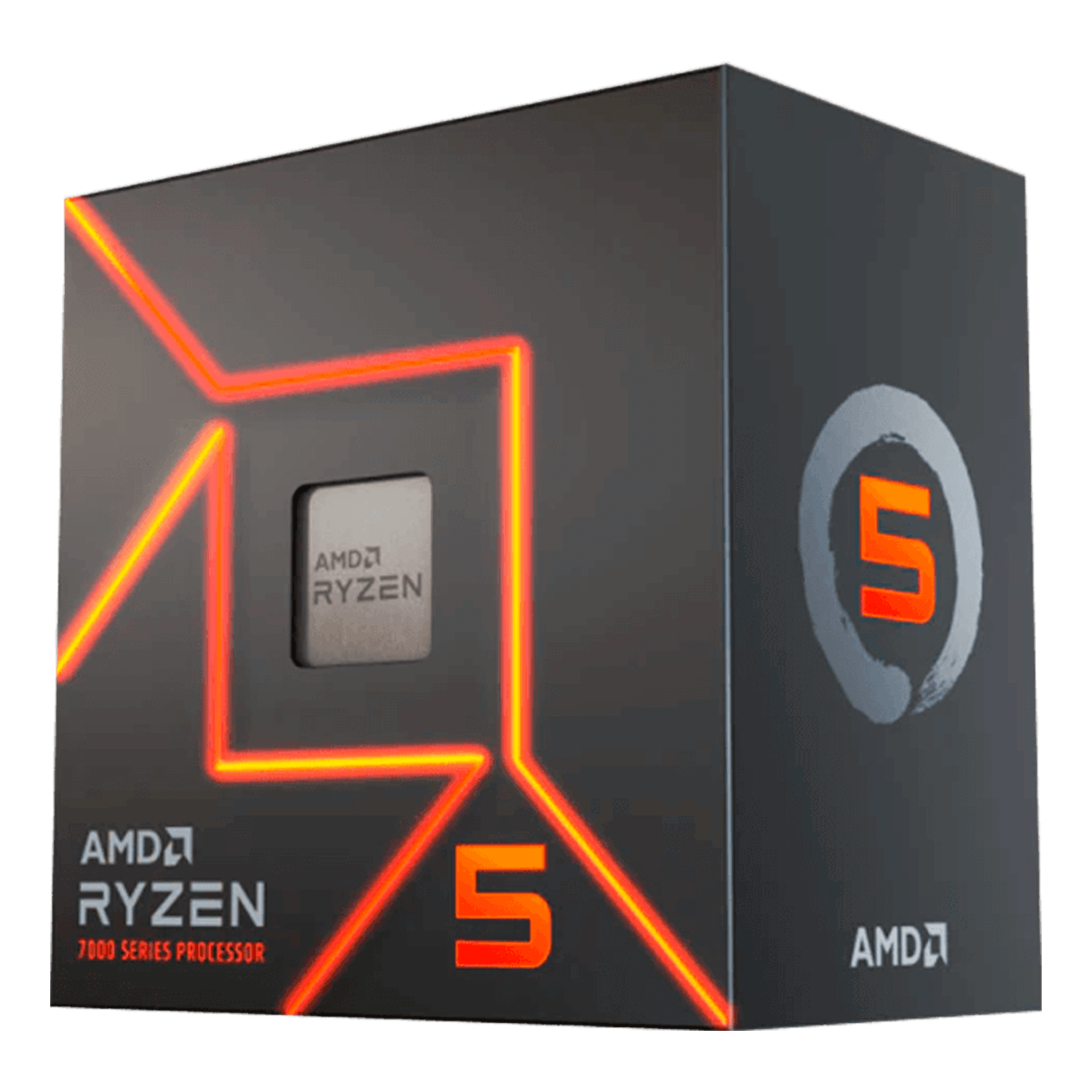

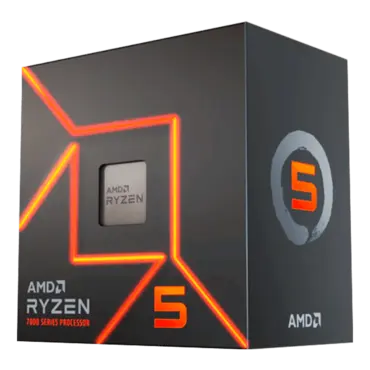

Ryzen™ 5 7500F 6-Core 3.7 - 5.0GHz Turbo, AM5, 65W TDP, Retail Processor
- SKU: 18736300
- Manufacturer: AMD
- MPN: 100-100000597BOX
- Availability: TEMPORARILY OUT OF STOCK
Price
$196.01
| General Specifications | ||
| Name | AMD Ryzen™ 5 7500F | |
| Family | Ryzen | |
| Series | Ryzen 7000 Series | |
| Form Factor | Desktops , Boxed Processor | |
| Market Segment | Enthusiast Desktop | |
| AMD PRO Technologies | No | |
| Regional Availability | Global | |
| Former Codename | Raphael AM5 | |
| Architecture | Zen 4 | |
| # of CPU Cores | 6 | |
| Multithreading (SMT) | Yes | |
| # of Threads | 12 | |
| Max. Boost Clock | Up to 5 GHz | |
| Base Clock | 3.7 GHz | |
| L1 Cache | 384 KB | |
| L2 Cache | 6 MB | |
| L3 Cache | 32 MB | |
| Default TDP | 65W | |
| Processor Technology for CPU Cores | TSMC 5nm FinFET | |
| Processor Technology for I/O Die | TSMC 6nm FinFET | |
| CPU Compute Die (CCD) Size | 71mm² | |
| I/O Die (IOD) Size | 122mm² | |
| Package Die Count | 2 | |
| Unlocked for Overclocking | Yes | |
| AMD EXPO™ Memory Overclocking Technology | Yes | |
| Precision Boost Overdrive | Yes | |
| Curve Optimizer Voltage Offsets | Yes | |
| AMD Ryzen™ Master Support | Yes | |
| CPU Socket | AM5 | |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 | |
| CPU Boost Technology | Precision Boost 2 | |
| Instruction Set | x86-64 | |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 | |
| Thermal Solution (PIB) | AMD Wraith Stealth | |
| Thermal Solution (MPK) | AMD Wraith Stealth | |
| Max. Operating Temperature (Tjmax) | 95°C | |
| Launch Date | 07/22/2023 | |
| *OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit | |
| Connectivity | ||
| Native USB 3.2 Gen 2 (10Gbps) | 4 | |
| Native USB 3.2 Gen 1 (5Gbps) | 0 | |
| Native USB 2.0 (480Mbps) | 1 | |
| Native SATA Ports | 0 | |
| PCI Express® Version | PCIe® 5.0 | |
| Native PCIe® Lanes (Total/Usable) | 28 , 24 | |
| Additional Usable PCIe Lanes from Motherboard X670E | X670E | 12x Gen4 |
| X670 | 12x Gen4 | |
| B650E | 8x Gen4 | |
| B650 | 8x Gen4 | |
| A620 | 4x Gen3 | |
| NVMe Support | Boot, RAID0, RAID1, RAID10 | |
| System Memory Type | DDR5 | |
| Memory Channels | 2 | |
| Max. Memory | 128 GB | |
| System Memory Subtype | UDIMM | |
| Max Memory Speed | 2x1R | DDR5-5200 |
| 2x2R | DDR5-5200 | |
| 4x1R | DDR5-3600 | |
| 4x2R | DDR5-3600 | |
| ECC Support | Yes (Requires mobo support) | |
| Graphics Capabilities | ||
| Graphics Model | Graphics Card Required | |
| Product IDs | ||
| Product ID Box | 100-100000597BOX | |
| Key Features | ||
| Supported Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies | |
