General Specifications | |

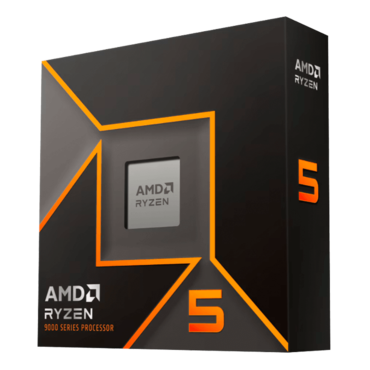

Name | AMD Ryzen™ 5 9600X |
Family | Ryzen |
Series | Ryzen 9000 Series |
Form Factor | Desktops , Boxed Processor |
Market Segment | Enthusiast Desktop |
AMD PRO Technologies | No |
Consumer Use | Yes |
Regional Availability | Global |
Former Codename | Granite Ridge AM5 |
Architecture | Zen 5 |
# of CPU Cores | 6 |
Multithreading (SMT) | Yes |
# of Threads | 12 |
Max. Boost Clock | Up to 5.4 GHz |
Base Clock | 3.9 GHz |
L1 Cache | 480 KB |
L2 Cache | 6 MB |
L3 Cache | 32 MB |
Default TDP | 65W |
Processor Technology for CPU Cores | TSMC 4nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
Package Die Count | 2 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Premium air cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) | 95°C |
*OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
Connectivity | |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native USB 2.0 (480Mbps) Ports | 1 |
PCI Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 , 24 |
Additional Usable PCIe Lanes from Motherboard |
X870E: 8x Gen4 X870: 4x Gen4 X670E: 12x Gen4 X670: 12x Gen4 B650E: 8x Gen4 B650: 8x Gen4 |
NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 192 GB |
System Memory Subtype | UDIMM |
Max Memory Speed |
2x1R: DDR5-5600 2x2R: DDR5-5600 4x1R: DDR5-3600 4x2R: DDR5-3600 |
ECC Support | Yes (Requires mobo support) |
Graphics Capabilities | |
Graphics Model | AMD Radeon™ Graphics |
Graphics Core Count | 2 |
Graphics Frequency2 | 200 MHz |
USB Type-C® DisplayPort™ Alternate Mode | Yes |
Product IDs | |
Product ID Boxed | 100-100001405WOF |
Product ID Tray | 100-000001405 |
Key Features | |
Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
