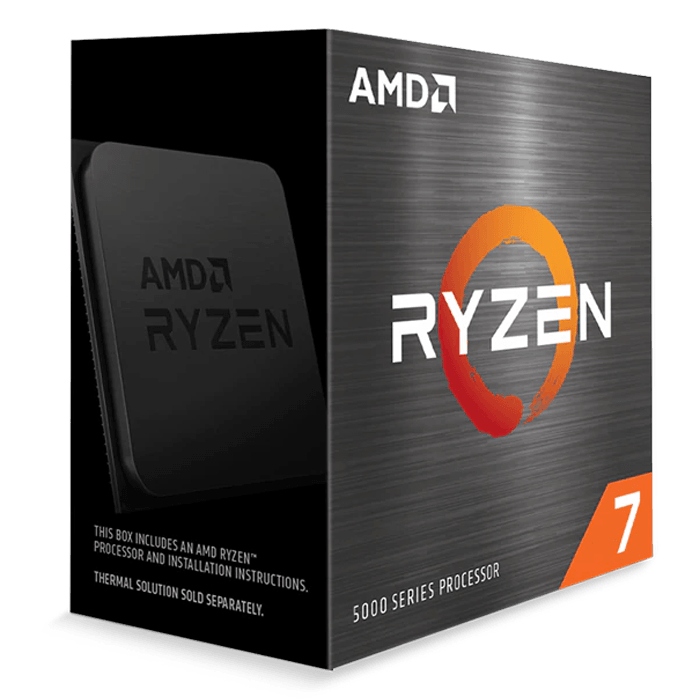

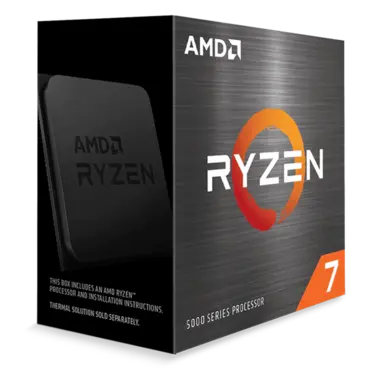

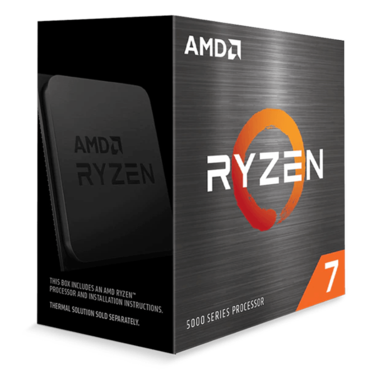

Ryzen™ 7 5800X3D 8-Core 3.4 - 4.5GHz Turbo, AM4, 105W TDP, Processor
Quantity:
- SKU: 14908052
- Manufacturer: AMD
- MPN: 100-100000651WOF
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$367.27
| General Specifications | ||
| Platform | Desktop | |
| Market Segment | Enthusiast Desktop | |
| Product Family | AMD Ryzen™ Processors | |
| Product Line | AMD Ryzen™ 7 Desktop Processors | |
| Consumer Use | Yes | |
| Regional Availability | Global, China, NA, EMEA, APJ, LATAM | |
| Former Codename | "Vermeer" | |
| Architecture | "Zen 3" | |
| # of CPU Cores | 8 | |
| Multithreading (SMT) | Yes | |
| # of Threads | 16 | |
| Max. Boost Clock | Up to 4.5GHz | |
| Base Clock | 3.4GHz | |
| L1 Cache | 512KB | |
| L2 Cache | 4MB | |
| L3 Cache | 96MB | |
| Default TDP | 105W | |
| Processor Technology for CPU Cores | TSMC 7nm FinFET | |
| Processor Technology for I/O Die | 12nm (Globalfoundries) | |
| CPU Compute Die (CCD) Size | 74mm² | |
| I/O Die (IOD) Size | 125mm² | |
| Package Die Count | 1 | |
| Unlocked for Overclocking | Yes | |
| CPU Socket | AM4 | |
| Socket Count | 1P | |
| Supporting Chipsets | X570 X470 B550 B450 A520 |
|
| CPU Boost Technology | Precision Boost 2 | |
| Instruction Set | x86-64 | |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 | |
| Thermal Solution (PIB) | Not included | |
| Max. Operating Temperature (Tjmax) | 90°C | |
| Launch Date | ||
| *OS Support | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
|
| Connectivity | ||
| USB Type-C® Support | Yes | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 | |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 | |
| Native USB 2.0 (480Mbps) Ports | 0 | |
| Native SATA Ports | 2 | |
| PCI Express® Version | PCIe 4.0 | |
| Native PCIe® Lanes (Total/Usable) | 24/20 | |
| Additional Usable PCIe Lanes from Motherboard | AMD X570 | 16x Gen 4 |
| AMD X470 | 2x Gen | |
| AMD X470 | 8x Gen 2 | |
| NVMe Support | Boot, RAID0, RAID1, RAID10 | |
| System Memory Type | DDR4 | |
| Memory Channels | 2 | |
| Max. Memory | 128GB | |
| System Memory Subtype | UDIMM | |
| Max Memory Speed | 2x1R | DDR4-3200 |
| 2x2R | DDR4-3200 | |
| 4x1R | DDR4-2933 | |
| 4x2R | DDR4-2667 | |
| ECC Support | EYes (Requires mobo support) | |
| Graphics Capabilities | ||
| Integrated Graphics | No | |
| Graphics Model | Discrete Graphics Card Required | |
| Product IDs | ||
| Key Features | ||
| Supported Technologies | Windows® 11 Gaming AMD StoreMI Technology AMD "Zen 3" Core Architecture AMD Ryzen™ VR-Ready Premium |
|
