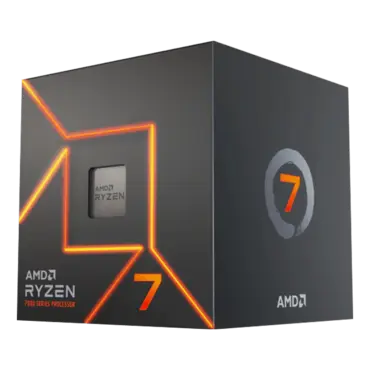

Ryzen™ 7 7700 8-Core 3.8 - 5.3GHz Turbo, AM5, 65W TDP, Retail Processor
Quantity:
- SKU: 15529189
- Manufacturer: AMD
- MPN: 100-100000592BOX
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$333.43
Ryzen™ 7 7700 8-Core 3.8 - 5.3GHz Turbo, AM5, 65W TDP, Retail Processor
Serious Performance for Gamers and Creators
Enjoy serious speed and the ultimate power efficiency for gaming and creating. This processor comes fully unlocked, overclockable, and will remain cool and quiet with an included AMD Wraith Prism cooler with RGB LED lighting.
| General Specifications | ||
| Platform | Desktop | |
| Market Segment | Enthusiast Desktop | |
| Product Family | AMD Ryzen™ Processors | |
| Product Line | AMD Ryzen™ 7 Processors | |
| AMD PRO Technologies | No | |
| Consumer Use | Yes | |
| Regional Availability | Global | |
| Former Codename | "Raphael AM5" | |
| Architecture | "Zen 4" | |
| # of CPU Cores | 8 | |
| Multithreading (SMT) | Yes | |
| # of Threads | 16 | |
| Max. Boost Clock | Up to 5.3GHz | |
| Base Clock | 3.8GHz | |
| L1 Cache | 512KB | |
| L2 Cache | 8MB | |
| L3 Cache | 32MB | |
| Default TDP | 65W | |
| Processor Technology for CPU Cores | TSMC 5nm FinFET | |
| Processor Technology for I/O Die | TSMC 6nm FinFET | |
| CPU Compute Die (CCD) Size | 71mm² | |
| I/O Die (IOD) Size | 122mm² | |
| Package Die Count | 1 | |
| Unlocked for Overclocking | Yes | |
| AMD EXPO™ Memory Overclocking Technology | Yes | |
| Precision Boost Overdrive | Yes | |
| Curve Optimizer Voltage Offsets | Yes | |
| AMD Ryzen™ Master Support | Yes | |
| CPU Socket | AM5 | |
| Supporting Chipsets | X670E X670 B650E B650 |
|
| CPU Boost Technology | Precision Boost 2 | |
| Instruction Set | x86-64 | |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 | |
| Thermal Solution (PIB) | AMD Wraith Prism | |
| Max. Operating Temperature (Tjmax) | 95°C | |
| Launch Date | ||
| *OS Support | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
|
| Connectivity | ||
| USB Type-C® Support | Yes | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 | |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 | |
| Native USB 2.0 (480Mbps) Ports | 1 | |
| Native SATA Ports | 0 | |
| Native PCIe® Lanes (Total/Usable) | 28/24 | |
| Additional Usable PCIe Lanes from Motherboard | AMD X670E | 12x Gen4 |
| AMD X670 | 12x Gen4 | |
| AMD B650E | 8x Gen4 | |
| AMD B650 | 8x Gen4 | |
| NVMe Support | Boot, RAID0, RAID1, RAID10 | |
| System Memory Type | DDR5 | |
| Memory Channels | 2 | |
| Max. Memory | 128GB | |
| System Memory Subtype | UDIMM | |
| Additional Usable PCIe Lanes from Motherboard | 2x1R | 5200 MT/s |
| 2x2R | 5200 MT/s | |
| 4x1R | 3600 MT/s | |
| 4x2R | 3600 MT/s | |
| ECC Support | Yes (Requires mobo support) | |
| Graphics Capabilities | ||
| Integrated Graphics | Yes | |
| Graphics Model | AMD Radeon™ Graphics | |
| Graphics Core Count | 2 | |
| Graphics Frequency | 2200 MHz | |
| GPU Base | 400 MHz | |
| USB Type-C® DisplayPort™ Alternate Mode | Yes | |
| Product IDs | ||
| Product ID Boxed | 100-100000592BOX | |
| Key Features | ||
| Supported Technologies | AMD EXPO™ Technology
AMD Ryzen™ Technologies
|
|
