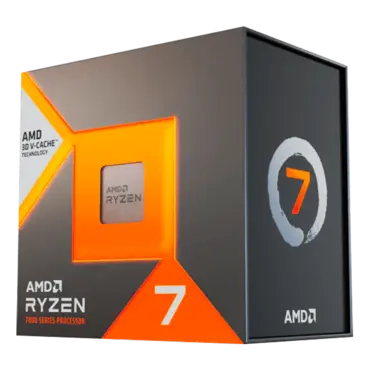

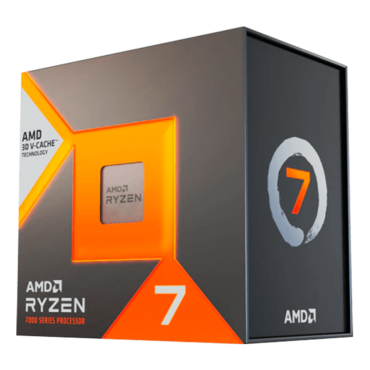

Ryzen™ 7 7800X3D 8-Core 4.2 - 5.0GHz Turbo, AM5, 120W TDP, Processor

Quantity:
  • SKU: 15800212
  • Manufacturer: AMD
  • MPN: 100-100000910WOF
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$443.88
Quantity:
Ryzen™ 7 7800X3D 8-Core 4.2 - 5.0GHz Turbo, AM5, 120W TDP, Processor

AMD Ryzen™ 7 7800X3D (100-100000910WOF). The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance. Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.

General Specifications
Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename "Raphael AM5"
Architecture "Zen 4"
# of CPU Cores 8
Multithreading (SMT) Yes
# of Threads 16
Max. Boost Clock Up to 5.0GHz
Base Clock 4.2GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 96MB
Default TDP 120W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 2
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
X670
B650E
B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax) 89°C
Launch Date
*OS Support Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard AMD X670E - 12x Gen4
AMD X670 - 12x Gen4
AMD B650E - 8x Gen4
AMD B650 - 8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R - DDR5-5200
2x2R - DDR5-5200
4x1R - DDR5-3600
4x2R - DDR5-3600
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs
Product ID Boxed 100-100000910WOF
Product ID Tray 100-000000910
Key Features
Supported Technologies AMD EXPO™ Technology
AMD Ryzen™ Technologies
