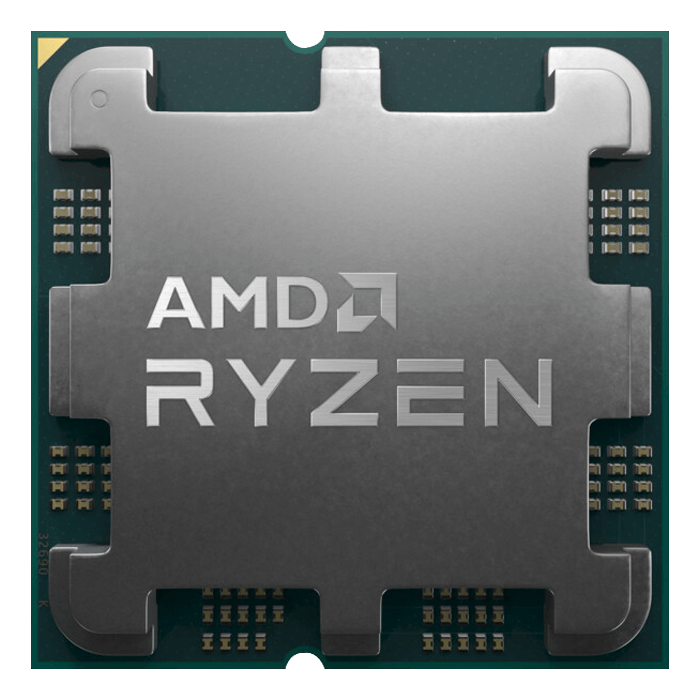

Ryzen™ 9 7900X 12-Core 4.7 - 5.6GHz Turbo, AM5, 170W TDP, OEM Processor

Quantity:
  • SKU: 15136945
  • Manufacturer: AMD
  • MPN: 100-000000589
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$484.14
Quantity:
Ryzen™ 9 7900X 12-Core 4.7 - 5.6GHz Turbo, AM5, 170W TDP, OEM Processor

Welcome to the new era of performance. AMD Ryzen 7000 Series ushers in the speed of “Zen 4” for gamers and creators with pure power to tackle any game or workflow on the digital playground. The world’s most advanced PC processor1 for gamers and creators extends AMD performance leadership to power your PC.

General Specifications
Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 9 Desktop Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename "Raphael AM5"
Architecture "Zen 4"
# of CPU Cores 12
Multithreading (SMT) Yes
# of Threads 24
Max. Boost Clock Up to 5.6GHz
Base Clock 4.7GHz
L1 Cache 768KB
L2 Cache 12MB
L3 Cache 64MB
Default TDP 170W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 3
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
X670
B650E
B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax) 95°C
Launch Date
*OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard AMD X670E 12x Gen4
AMD X670 12x Gen4
AMD B650E 8x Gen4
AMD B650 8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed 1x1R 5200 MT/s
1x2R 5200 MT/s
2x1R 3600 MT/s
2x2R 3600 MT/s
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs
Product ID Tray 100-000000589
Key Features
Supported Technologies AMD EXPO™
Technology AMD Ryzen™ Technologies
