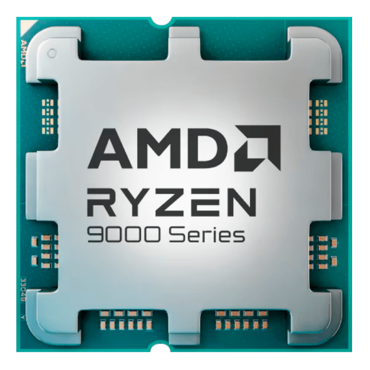

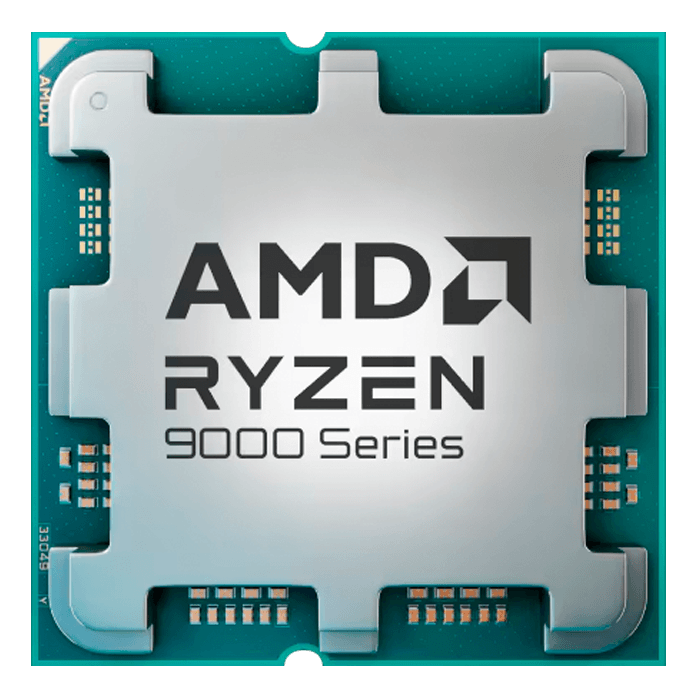

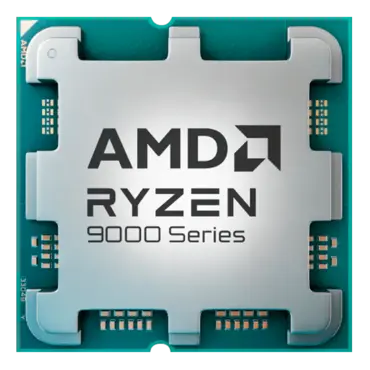

Ryzen™ 9 9950X 16-Core 4.3 - 5.7GHz Turbo, AM5, 170W TDP, OEM Processor

Quantity:
  • SKU: 17850361
  • Manufacturer: AMD
  • MPN: 100-000001277
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$616.39
Quantity:
General Specifications
Name AMD Ryzen™ 9 9950X
Family Ryzen
Series Ryzen 9000 Series
Form Factor Desktops
Market Segment Enthusiast Desktop
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename Granite Ridge AM5
Architecture Zen 5
# of CPU Cores 16
Multithreading (SMT) Yes
# of Threads 32
Max. Boost Clock  Up to 5.7 GHz
Base Clock  4.3 GHz
L1 Cache 1280 KB
L2 Cache 16 MB
L3 Cache 64 MB
Default TDP 170W
Processor Technology for CPU Cores TSMC 4nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
Package Die Count 3
Unlocked for Overclocking  Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) Not Included
Recommended Cooler Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) 95°C
*OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 2.0 (480Mbps) Ports 1
PCI Express® VersionPCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28 , 24
Additional Usable PCIe Lanes from Motherboard X870E:8x Gen4
X870:4x Gen4
X670E:12x Gen4
X670:12x Gen4
B650E:8x Gen4
B650:8x Gen4
NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 192 GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R:DDR5-5600
2x2R:DDR5-5600
4x1R:DDR5-3600
4x2R:DDR5-3600
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs
Product ID Boxed 100-100001277WOF
Product ID Tray 100-000001277
Key Features
Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
