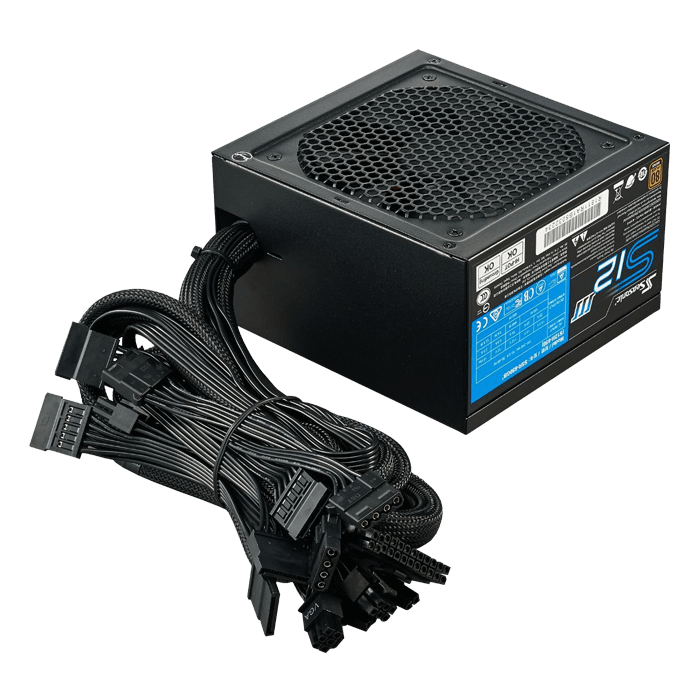

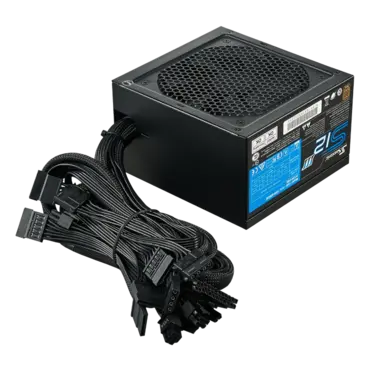

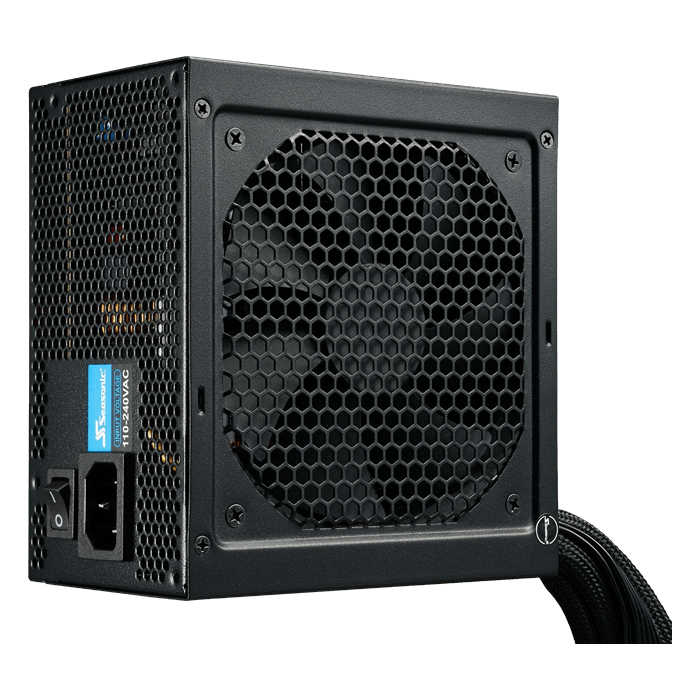

S12III 500, 80 PLUS Bronze 500W, No Modular, ATX Power Supply
Quantity:
- SKU: 12571937
- Manufacturer: SEASONIC
- MPN: SSR-500GB3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$80.91
S12III 500, 80 PLUS Bronze 500W, No Modular, ATX Power Supply
The S12III 500 (SSR-500GB3) Bronze Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic S12III-Series achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the S12II units maintain important features such as the stable and proven Double Forward Converter circuit design, and the industry’s leading Smart and Silent Fan Control (S2FC).
- 80 PLUS® Bronze certified
- Fixed cables
- Tight Voltage Regulation
- 105 °C Japanese Capacitor
- S2FC - Smart and Silent Fan Control
- Gold plated connectors
- 5 years warranty
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 150 mm (W) x 140 mm (L) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Seasonic S2FC | |
| Fan Bearing | Double ball bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fixed cable |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, Gost-R, UkrTEST, CB , BSMI, Semko, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, REACH | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 8 A - 4 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 40 A | 0.3 A | 2.5 A | |
| 100 W | 480 W | 3.6 W | 12.5 W | |||
| Total continuous power | 500 W | |||||
| Connector | Connector Count | Cable Length |
|---|---|---|
| Main Power (24/20 pins) | 1 | 1 x 550 mm - attached |
| CPU (8/4 pins) | 1 | 1 x 600 mm - 8/4 pins attached |
| PCIe (8/6 pins) | 2 | 1 x 550 + 150 mm - 8/6 pins attached |
| SATA | 4 | 2 x 400 + 120 mm - attached |
| Peripheral | 3 | 1 x 450 + 120 + 120 mm - attached |
| Floppy | 1 | 1 x 120 mm - end connector of the peripheral cable |
