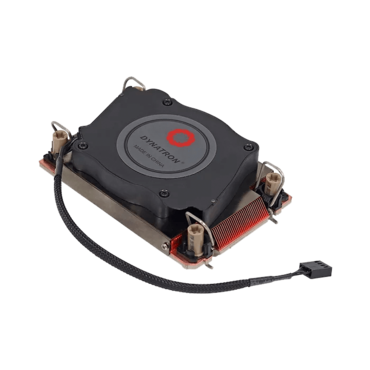

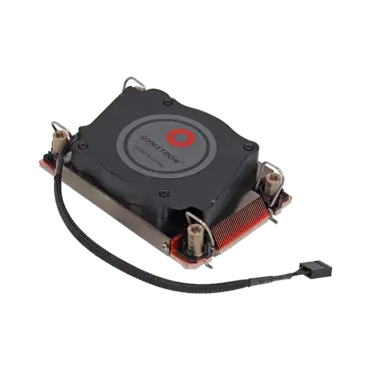

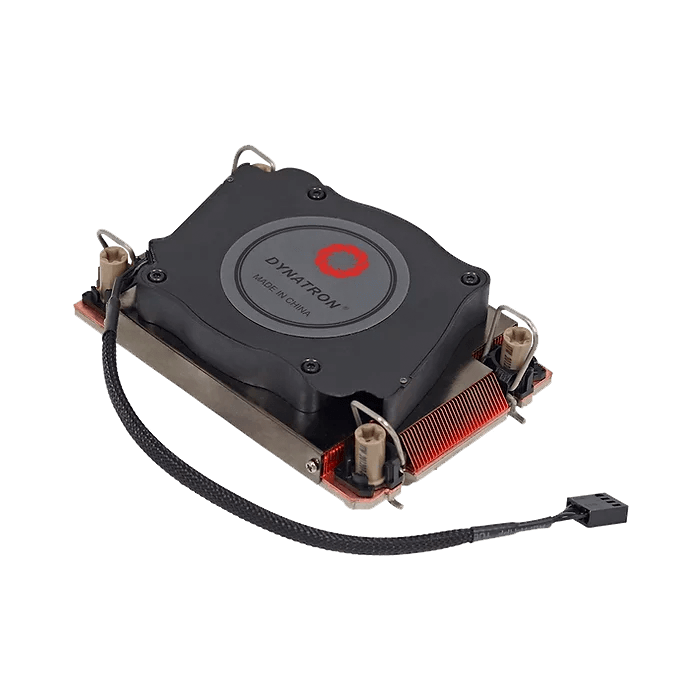

S3, Socket LGA 4677, 27mm Height, 205W TDP, Copper CPU Cooler
- SKU: 14795294
- Manufacturer: DYNATRON
- MPN: S3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
S3, Socket LGA 4677, 27mm Height, 205W TDP, Copper CPU Cooler
The Dynatron S3 CPU cooler is designed for 1U Active with VC base
The Dynatron S3 CPU cooler is designed for 1U Active with VC base
| CPU Support | Intel |
| CPU Socket | FCLGA 4677 |
| Solution | 1U Server and Up |
| Dimensions | 118.0 x 80 x 27 mm |
| Weight | 424.6 g |
| Material | Copper 1100 Heatsink with Vapor Chamber Base |
| Fan Dimension | 80 x 13 mm |
| Speed |
At Duty Cycle 0~20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM |
| Rated Voltage | 12V |
| Bearing | Double Ball |
| Power |
At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W |
| Air Flow |
At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level |
At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
| Air Pressure |
At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O |
| Lead Wire Pin Out |
Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu 7762 Pre-printed |

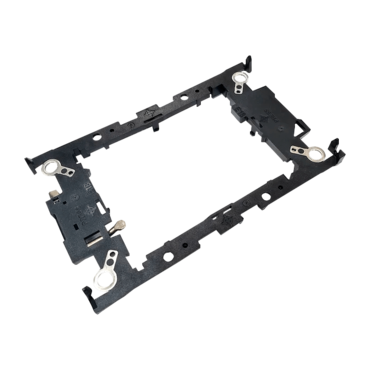

| NOTE: | Dynatron S2, S3, S4, S5 and S6 each comes with E1B Package Carrier. E1A and E1C Package Carriers are not included but they are available upon request. |
