Processor |
Socket Type / Q'ty |
LGA2011 / (1) |
Supported CPU Series |
Intel Xeon Processor E5-2600/E5-1600 v3/v4 series processors |
Thermal Design Power (TDP) Wattage |
Max up to 160W |
Chipset |
PCH |
Intel C612 |
Memory |
Supported DIMM Qty |
(8) DIMM slots |
DIMM Type / Speed |
RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (*Up to 2400 speed support only w/E5-2600 v4) |
Capacity |
Up to 256GB RDIMM/ 512GB LRDIMM/ 1,024GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
Memory channel |
4 Channels per CPU |
Memory voltage |
1.2V |
Expansion Slots |
PCI-E |
(1) PCI-E Gen3 x16 slot |
Recommended TYAN OCP Card |
M7062-B811-1T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card / M7062-B810-2T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card / M7076-X540-2T, PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7076-I350, PCI-E Gen3 x8, Intel (2)GbE Mezz Card / M7062-I599-1T, PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7062-I599-2T, PCI-E Gen3 x8, Intel 10GbE Mezz Card |
NOTE: |
(1) OCP slot for Mezz Card |
LAN |
Q'ty / Port |
(2) GbE ports (1 port shared with IPMI) |
Controller |
Intel I210-AT |
Storage |
SAS |
Connector |
(2) Mini-SAS connectors (totally support 8 ports) |
Controller |
LSI SAS2308 |
Speed |
6.0 Gb/s |
RAID |
RAID 0/1/1E/10 (LSI Integrated RAID) |
SATA |
Connector |
(6) SATA |
Controller |
Intel C612 |
Speed |
6.0 Gb/s |
RAID |
RAID 0/1/10/5 (Intel RSTe) |
sSATA |
Connector |
(1) Mini-SAS (4-ports) |
Controller |
Intel C612 |
Speed |
6.0 Gb/s |
RAID |
RAID 0/1/10/5 (Intel RSTe) |
Graphic |
Connector type |
D-Sub 15-pin |
Resolution |
Up to 1920x1200 |
Chipset |
Aspeed AST2400 |
Input /Output |
USB |
(4) USB 2.0 ports (2 at rear, 2 via cable) / (5) USB3.0 ports (2 at rear, 2 via cable, Type-A) |
COM |
(2) ports (1 at rear, 1 via cable) |
VGA |
(1) D-Sub 15-pin VGA port (at rear) |
RJ-45 |
Total (2) GbE ports, (1) shared with IPMI |
Front Panel |
(1) 2x12-pin SSI front panel header |
SAS |
(2) Mini-SAS (4-in-1) connectors |
SATA |
(6) SATA-III + (4) SATA ports by (1) mini-SAS connector |
Power |
SSI 24-pin + 8-pin + 8-pin power connectors |
System Monitoring |
Chipset |
Aspeed AST2400 |
Temperature |
Monitors temperature for CPU & memory & system environment |
Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
Others |
Watchdog timer support |
Server Management |
Onboard Chipset |
Onboard Aspeed AST2400 |
AST2400 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
AST2400 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
BIOS |
Brand / ROM size |
AMI / 16MB |
Feature |
Hardware Monitor / SMBIOS 2.7/PnP/Wake on LAN / PXE boot support / ACPI 3.0/ACPI sleeping states S1,S4,S5 |
Physical Dimension |
Form Factor |
ATX |
Board Dimension |
12"x9.6" (305x243.8mm) |
Regulation |
FCC (DoC) |
Class A |
CE (DoC) |
Class A |
Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
In/Non-operating Humidity |
90%, non-condensing at 35° C |
RoHS |
RoHS 6/6 Compliant |
Yes |
Operating System |
OS supported list |
Please refer to our AVL support lists. |
Package Contains |
Motherboard |

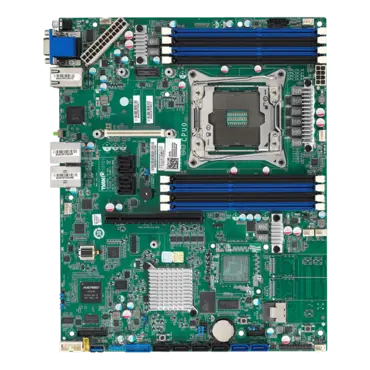

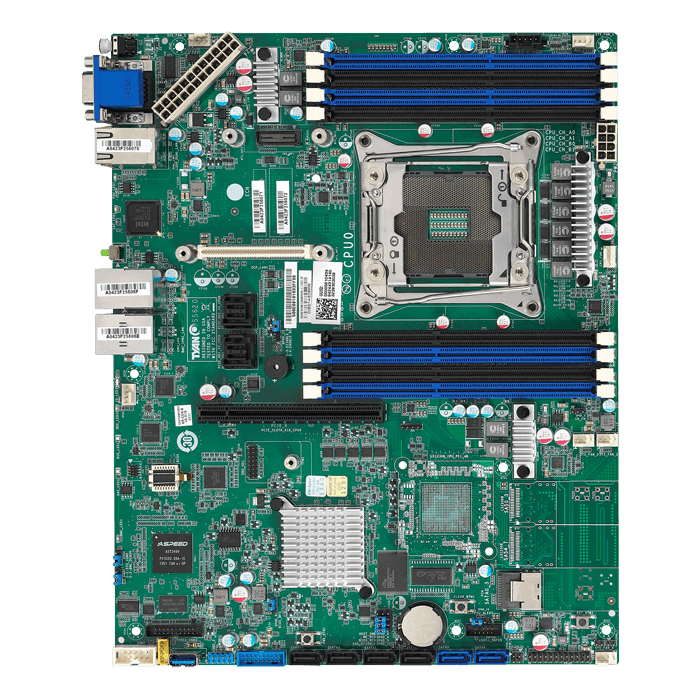

(1) S5620 Motherboard |
Manual |
(1) Quick Installation Guide |
Installation CD |
(1) TYAN Device Driver CD |
