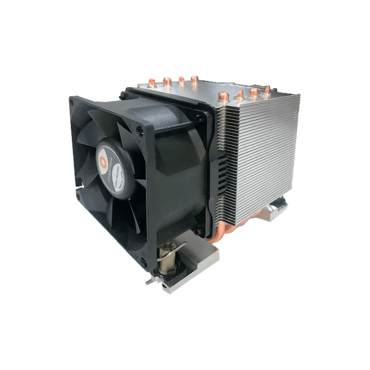

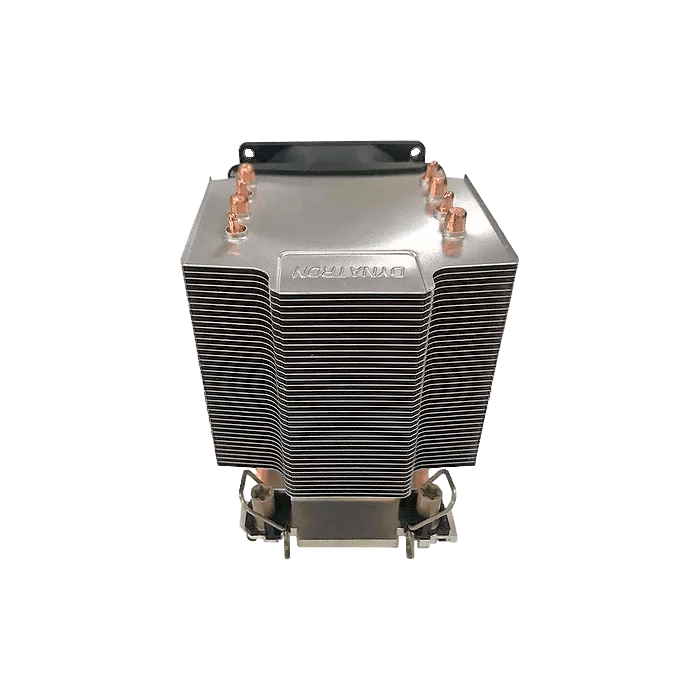

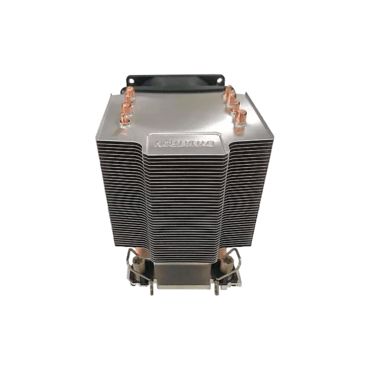

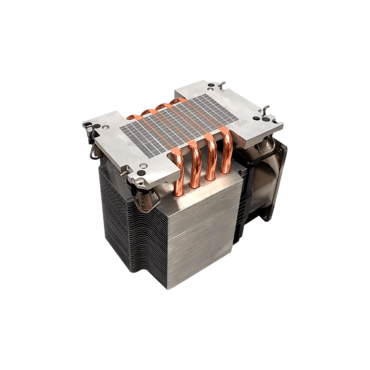

S6, Socket LGA 4677, 110mm Height, 300W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 14795305
- Manufacturer: DYNATRON
- MPN: S6
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$35.97
S6, Socket LGA 4677, 110mm Height, 300W TDP, Copper/Aluminum CPU Cooler
The Dynatron S6 CPU cooler is designed for S6- 3U & Up Active with heatpipe
The Dynatron S6 CPU cooler is designed for S6- 3U & Up Active with heatpipe
| CPU Support | Intel |
| CPU Socket | FCLGA 4677 |
| Solution | 3U Server and Up |
| Dimensions | 118 x 82 x 110 mm |
| Weight | 659.3 g |
| Material | Aluminum Stacked-Fin with Heat Pipes directly contact CPU |
| Fan Dimension | 80 x 80 x 38 mm |
| Speed |
At Duty Cycle 0~20%: 1300± 200 RPM At Duty Cycle 50%: 2450± 10% RPM At Duty Cycle 100%: 4500±10% RPM |
| Rated Voltage | 12V |
| Bearing | Double Ball |
| Power |
At Duty Cycle 0~20%: 1.20 W At Duty Cycle 50%: 2.64 W At Duty Cycle 100%: 9.00 W |
| Air Flow |
At Duty Cycle 0~20%: 22.23 CFM At Duty Cycle 50%: 41.90 CFM At Duty Cycle 100%: 76.95 CFM |
| Noise Level |
At Duty Cycle 0~20%: 23.95 dBA At Duty Cycle 50%: 37.71 dBA At Duty Cycle 100%: 50.91 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 1.068 mm-H2O At Duty Cycle 50%: 3.794 mm-H2O At Duty Cycle 100%: 12.798 mm-H2O |
| Lead Wire Pin Out |
Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu 7762 Pre-printed |

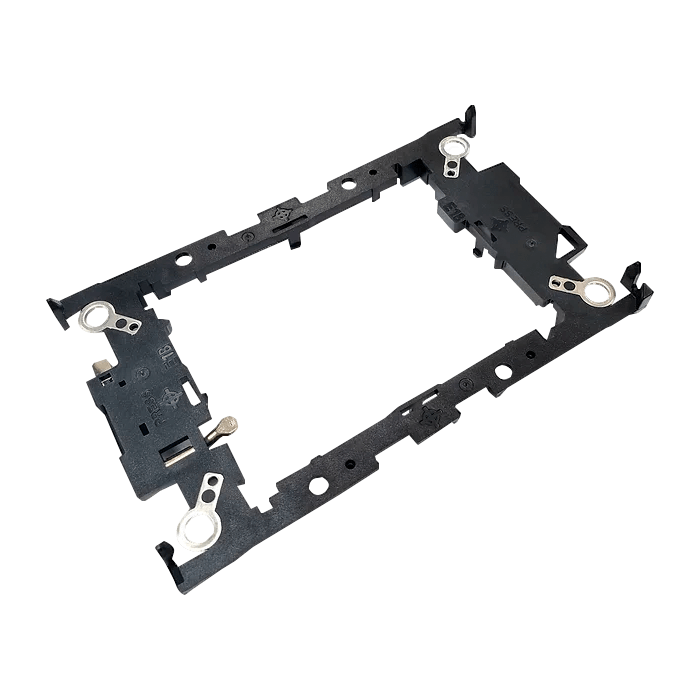

| NOTE: | Dynatron S2, S3, S4, S5 and S6 each comes with E1B Package Carrier. E1A and E1C Package Carriers are not included but they are available upon request. |
