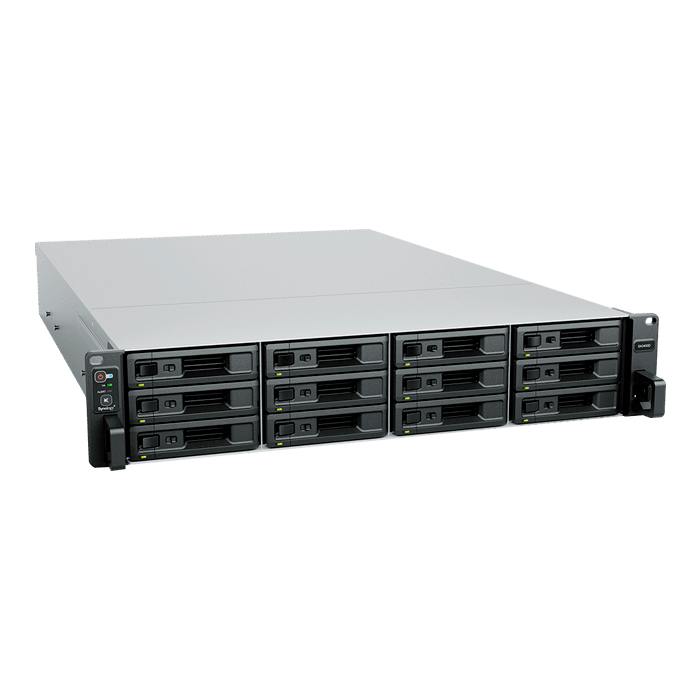

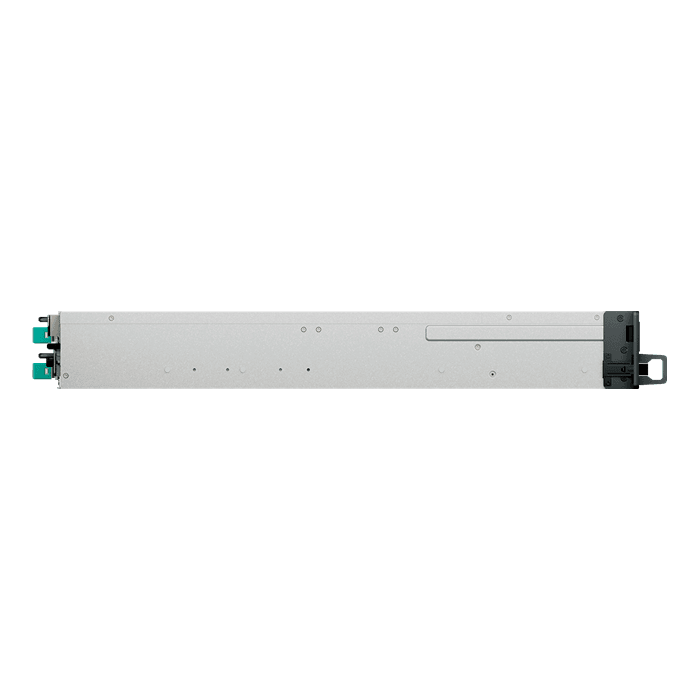

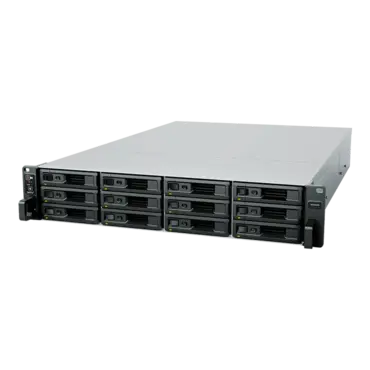

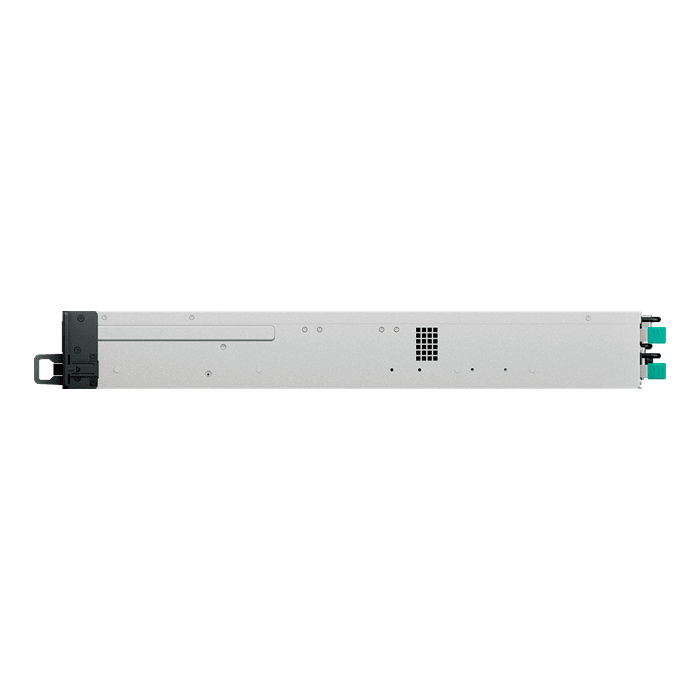

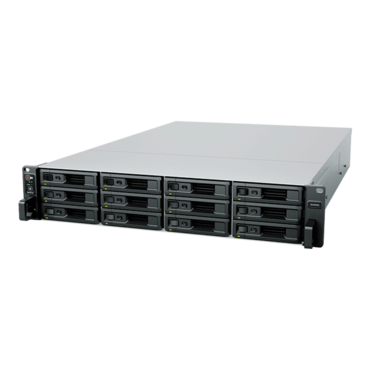

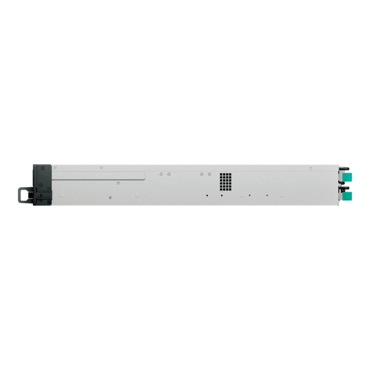

SA3400D 12-bay 2U NAS Server, (Intel® Xeon® D-1541 8-core 2.7 GHz processor, 8GB DDR4 ECC UDIMM, SAS 12Gb/s, 1GbLAN / 2, 10GbLAN / 1) per controller, 500W Rdt PSU
Quantity:
- SKU: 16325514
- Manufacturer: SYNOLOGY
- MPN: SA3400D
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$12,319.95
| Controller | Number of Controller Module | 2 |
| CPU | CPU Model | Intel Xeon D-1541 |
| CPU Quantity | 1 (per controller) | |
| CPU Core | 8 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | ✔ | |
| Memory | System Memory | 8 GB DDR4 ECC UDIMM (per controller) |
| Memory Module Pre-installed | 8 GB (8 GB x 1) (per controller) | |
| Total Memory Slots | 4 (per controller) | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) (per controller) | |
| Notes |
|
|
| Storage | Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (RXD1219sas x 2) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ✔ | |
| Notes |
|
|

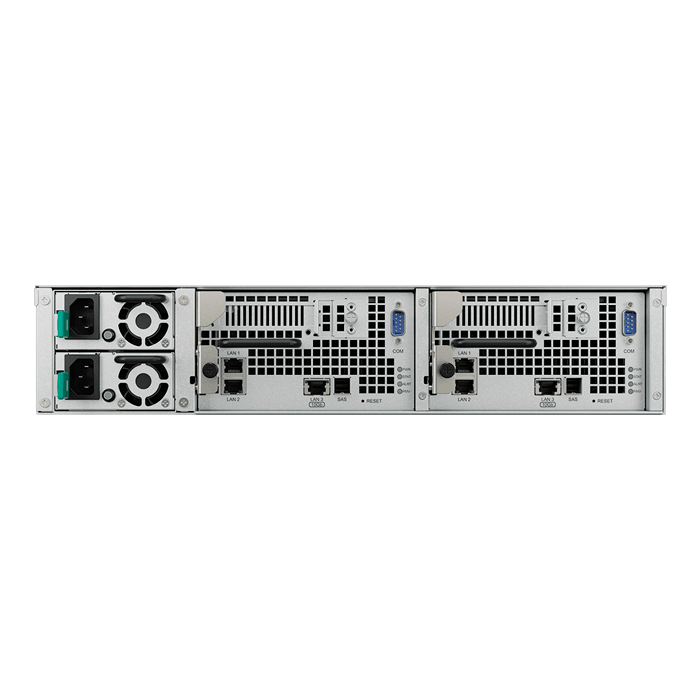

| External Ports | RJ-45 1GbE LAN Port | 2 (per controller) |
| RJ-45 10GbE LAN Port | 1 (per controller) | |
| Expansion Port | 1 (per controller) | |
| Expansion Port Type | Mini-SAS HD | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x8 link) (per controller) |
| Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 19.7 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
| Others | System Fan | 60 mm x 60 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ✔ | |
| Power Recovery | ✔ | |
| Noise Level* | 51.3 dB(A) | |
| Power Supply Unit / Adapter | 500 watts | |
| Redundant Power Supply | ✔ | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 257.78 watts (Access) | |
| British Thermal Unit | 879.58 BTU/hr (Access) | |
| Notes |
|
|
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
|
|
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
| Environment | RoHS Compliant | |
| Packaging Content |
|
|
| Optional Accessories |
|
|
| Notes | Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations. | |
