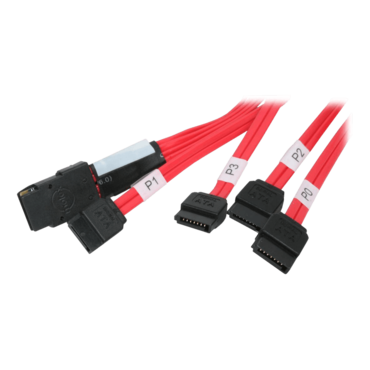

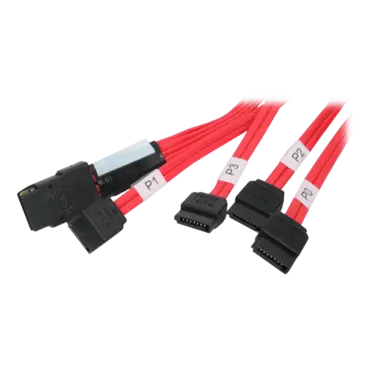

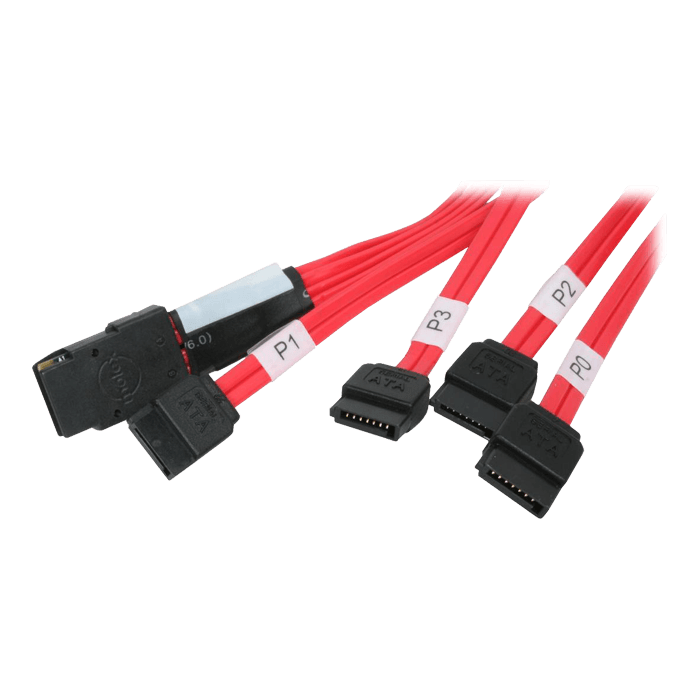

SFF-8087 Molex iPass Mini-SAS to 4x SATA Cable, 4-ports, 1m

Cable, 1 unit of 1 meter Multi-lane Internal (SFF-8087) Serial ATA breakout cable, forward. Connects the controller's SFF-8087 Multi-lane connector(s) to the hard drive's or backplane's discrete SATA connector(s)

Features:

Get Connected via the Multi-lane™ Expressway
LSI’s award winning Multi-lane design enables highly reliable and streamlined enterprise-class SATA storage solutions by greatly reducing the number of cables needed to connect controllers, backplanes, and standard SATA drives.
The Multi-lane SATA cable/connection system is fast, secure, simple, and clutter free. It combines the RAID controller’s four SATA ports into a single locked connection. Four lanes of 3Gb/s or 6Gb/s SATA traffic travel through just one cable from the RAID controller to the system backplane or to up to four hard drives with a breakout cable.

Multi-lane Benefits

• Four lanes of high speed SATA traffic through a single cable
• Increased system reliability
• Reduced cable count
• Streamlined storage
• Locked connections
• Improved airflow

Specifications:

0.5 meter Multi-lane internal forward breakout cable* (QTY 1)
Breakout cables have a Multi-lane connector on one end and 4 discrete connectors on the other end.

• Forward breakout cables have a Multi-lane connector on the controller end and 4 discrete connectors to the drives.
• Reverse breakout cables have 4 Discrete connectors on the controller end and a Multi-lane connector to the drives.
