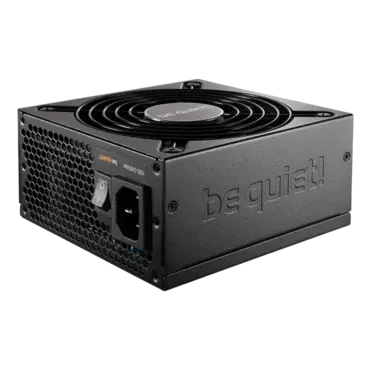

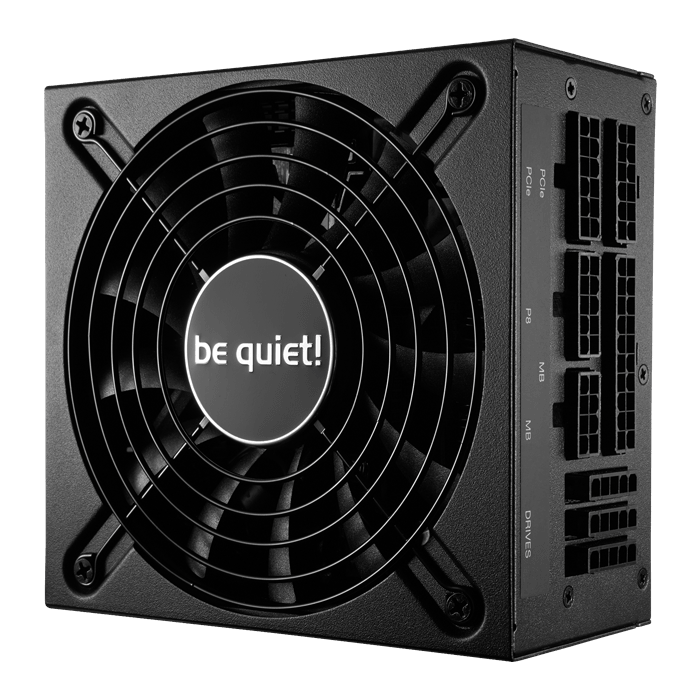

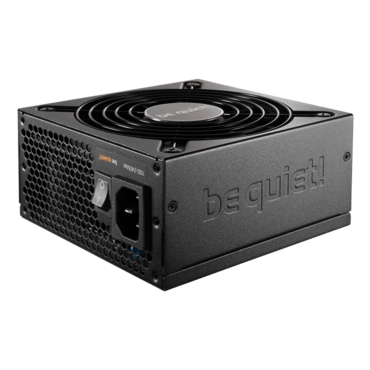

SFX L Power, 80 PLUS Gold 600W, Fully Modular, SFX-L Power Supply
Quantity:
- SKU: 12972434
- Manufacturer: be quiet!
- MPN: BN639
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$119.90
SFX L Power, 80 PLUS Gold 600W, Fully Modular, SFX-L Power Supply
COMPACT AND SILENT ENERGY
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. For compact PC systems that perform beyond the ordinary, with an ideal combination of features, power, efficiency and reliability, choose SFX L Power 600W.
- 80PLUS® Gold certification (up to 92% efficiency)
- Multi-GPU support with four PCIe connectors
- Stable LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion
- Full cable management for maximum build flexibility
- Temperature-controlled 120mm high-quality fan
- SFX-to-ATX adapter bracket for usage with larger case sizes
- 3-year manufacturer’s warranty
| General data | |
|---|---|
| Model | SFX L Power 600W |
| Continuous power (W) | 600 |
| Peak power (W) | 650 |
| Form factor ATX 12V | PSU DG 1.31 / SFX12V Version 3.3 |
| Form factor EPS 12V | - |
| Modular cable management | ✓ |
| Topology | Active PFC + LLC + DC-DC |
| Wire-free design (DC-side) | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10 |
| PFC | active |
| Power factor at 100% load | 0.99 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby (W) | 0.14 |
| Average life time (h / 25°C) | 100.000 |
| Operating temperature up to (°C) | 40 |
| Output | |
| 12V rails (multi-rail operation) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 50 |
| +12V2 (A) | - |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 105 |
| Hold-up time (ms @ 100%) | 16.8 |
| Fan / Cooling technology | |
| Fan type | high-quality fan |
| +SilentWings | - |
| Motor technology | 4-pole fan motor |
| Bearing technology | Sleeve |
| Fan size (mm) | 120 |
| Max. fan speed (rpm), temperature-dependent | 1,450 |
| Temperature control for case fans | - |
| dB(A) at 20% load | 8.5 |
| dB(A) at 50% load | 14.5 |
| dB(A) at 100% load | 28.7 |
| Protection | |
| OCP (over current protection) | ✓ |
| OVP (over voltage protection) | ✓ |
| UVP (under voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | ✓ |
| OPP (over power protection) | ✓ |
| Safety certification | |
| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
| Nemko (N) | - |
| Semko (S) | - |
| Fimko (FI) | - |
| Demko (D) | - |
| FCC | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| RCM (Australia) | ✓ |
| BSMI | - |
| CU (Russia) | - |
| CCC | - |
| Eco / Efficiency | |
| 80PLUS certification | Gold |
| Efficiency (%) at 230V, 20% load | - |
| Efficiency (%) at 230V, 50% load | - |
| Efficiency (%) at 230V, 100% load | - |
| Environmental directives | |
| ENERGY STAR | 6.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Cable management / Connectors | |
| Multi-GPU ready | ✓ |
| Modular cable management | ✓ |
| Fully modular | ✓ |
| Sleeved cables | - |
| Flat cables | ✓ |
| Cable length to mainboard (cm) | 30 |
| Cable length to first connector (cm) | 30 |
| Maximum cable length (cm) | 80 |
| All-in-one cable (SATA/PATA/FDD) | - |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P8 (CPU) | - |
| P4+4 (CPU) | - |
| P4 (CPU) | - |
| PCI-E 6-pin (GPU) | - |
| PCI-E 6+2-pin (GPU) | 4 |
| PATA 4-pin | 3 |
| SATA 15-pin (HDD, Drives) | 6 |
| FDD (Floppy) | - |
| External fan connectors | - |
| Casing | |
| Dimensions without cable (L x W x D), (mm) | 64 x 125 x 130 |
| Weight (kg) | 1.16 |
| Color | Black |
| Accessories | |
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| Box/Bag for PSU/Cables | - |
| User manual languages | EN, DE, FR, PL, ES, RU |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | ✓ |
| Service | |
| Warranty (Years) | 3 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BN639 |
| EAN code | 4260052187159 |
| Dimensions, package (L x W x H), (mm) | 220 x 205 x 80 |
| Gross weight, package (kg) | 2.04 |
| Pieces per packaging unit | 10 |
| Dimensions, shipping box (L x W x H), (mm) | 430 x 430 x 240 |
| Gross weight, shipping box (kg) | 21.5 |
