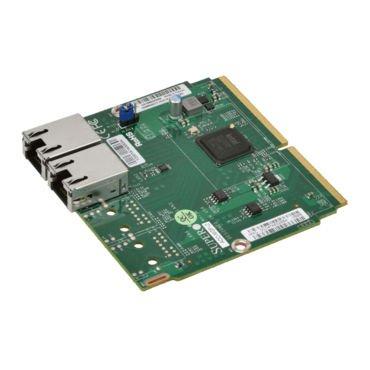

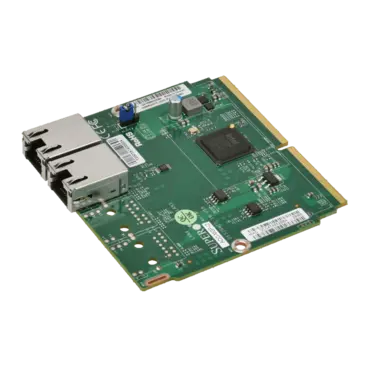

SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)

Quantity:
  • SKU: 10793761
  • Manufacturer: SUPERMICRO
  • MPN: AOC-MGP-i2M
  • Availability: LOW STOCK
Starting At
$69.02
Quantity:
Add-on Card

The Ultimate Ethernet Controllers in Supermicro Super I/O Module

Supermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MGP-i2 is the most flexible and scalable GbE SIOM controller. Based on Intel GbE network controller i350, it is designed with performance enhancing features and power management technologies.

This product is only available through Supermicro.
Key Features

• Super I/O Module (SIOM) Form Factor
• Intel® i350 GbE controller
• Dual RJ45 Ports
• VMDq and SR-IOV for Virtualized Environments
• Jumbo Frames support
• Energy Efficient Ethernet (EEE)
• iSCSI Remote Boot Support
• PXE Boot Support
• Support for most Network Operating Systems
• Asset Management Features
• NC-SI for Remote Management
• RoHS compliant 6/6
Compliance
RoHS
  • RoHS Compliant 6/6, Pb Free
Specification

General
- Intel® i350 GbE controller
- Super I/O Module (SIOM) Form Factor
- Dual RJ45 ports
- Intel® I/O Acceleration Technology (Intel® I/OAT)

Ethernet Features
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY
specifications Compliant
- IEEE 1588 protocol and 802.1AS implementation

Power Management and Efficiency
- Energy Efficient Ethernet (EEE)
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function
- MAC Power Management controls
- Low Power Link Up - Link Speed Control

Virtualization Features
- PC-SIG SR-IOV support
- VM to VM Packet forwarding (Packet Loopback)
- Flexible Port Partitioning
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering
- Jumbo Frames support

Performance Features
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve
CPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases
throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment,
Scalable I/O for Linux environments
- Intelligent interrupt generation

Management Features
- Preboot eXecution Environment (PXE) support
- iSCSI Remote Boot Support
- Asset Management support on Supermicro® platforms
- Controller asset tags such as part number, revision,
serial number, and MAC addresses
- NC-SI for remote management

OS Support
- Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
- Windows 8.1, 8, 7 (x64 Edition)
- RedHat Linux
- SUSE Linux
- FreeBSD
- UEFI
- VMWare

Cables Support
- RJ45 Category 5/5e up to 100m

Power Consumption
- Typical 3W, Maximum 3.7W

Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity
at 35°C

Physical Dimensions (W x D)
- Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)

Supported Platforms
- Supermicro® motherboards with Super I/O Module slot
- Supermicro® server systems with Super I/O Module slot
