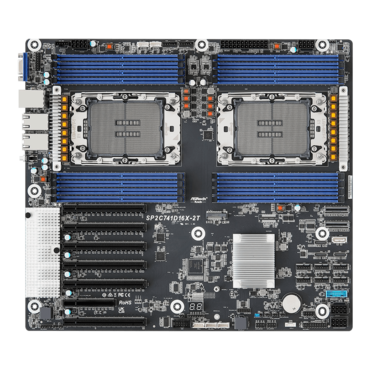

SP2C741D16X-2T, Intel® C741, LGA 4677 / 2, DDR5-5600 1.5TB ECC RDIMM / 16, VGA, M.2, OCuLink / 3, 10GbLAN / 2, EEB Retail

Quantity:
  • SKU: 16109127
  • Manufacturer: ASROCK
  • MPN: SP2C741D16X-2T
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,028.78
Quantity:
Physical Status
Form Factor EEB
Dimensions 12.4'' x 14" (314.96 x 355.6 mm)
Processor System
CPU Supports 5th and 4th Gen Intel®Xeon®Scalable processors
Socket 1+1 Socket E (LGA 4677)
Thermal Design Power 350W
Chipset Intel®C741
System Memory
Supported DIMM Quantity 8+8 DIMM slots (1DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency 5600 MT/s on 5th Gen Intel®Xeon®Scalable Processors
4800 MT/s on 4th Gen Intel®Xeon®Scalable Processors
*Memory speed and capacity support varies by CPU SKU
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 / CXL1.1 x16 [CPU0]
SLOT5: PCIe5.0 / CXL1.1 x16 [CPU1]
SLOT4: PCIe5.0 / CXL1.1 x16 [CPU0]
SLOT3: PCIe5.0 / CXL1.1 x16 [CPU1]
SLOT2: PCIe5.0 / CXL1.1 x16 [CPU1]
SLOT0: PCIe5.0 / CXL1.1 x16 [CPU1]
PCIe x 8 SLOT1: PCIe5.0 x8 [CPU0]
Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4); support 22110/2280 form factor [CPU0]
Others 2 MCIO (PCIE5.0 x8) [CPU0]
OCuLink 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
SATA/SAS Storage
PCH Built-in Storage Intel®C741 (Up to 13 SATA 6Gb/s, support RAID 0/1/5/10):
3 OCuLink for 12 SATA, 1 SATA 7-pin
Ethernet
Additional GbE Controller 2 RJ45 (10GbE) by Intel®X710-AT2
Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 header

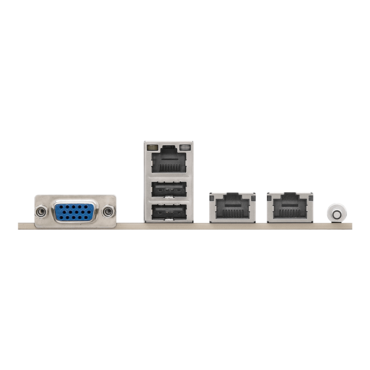

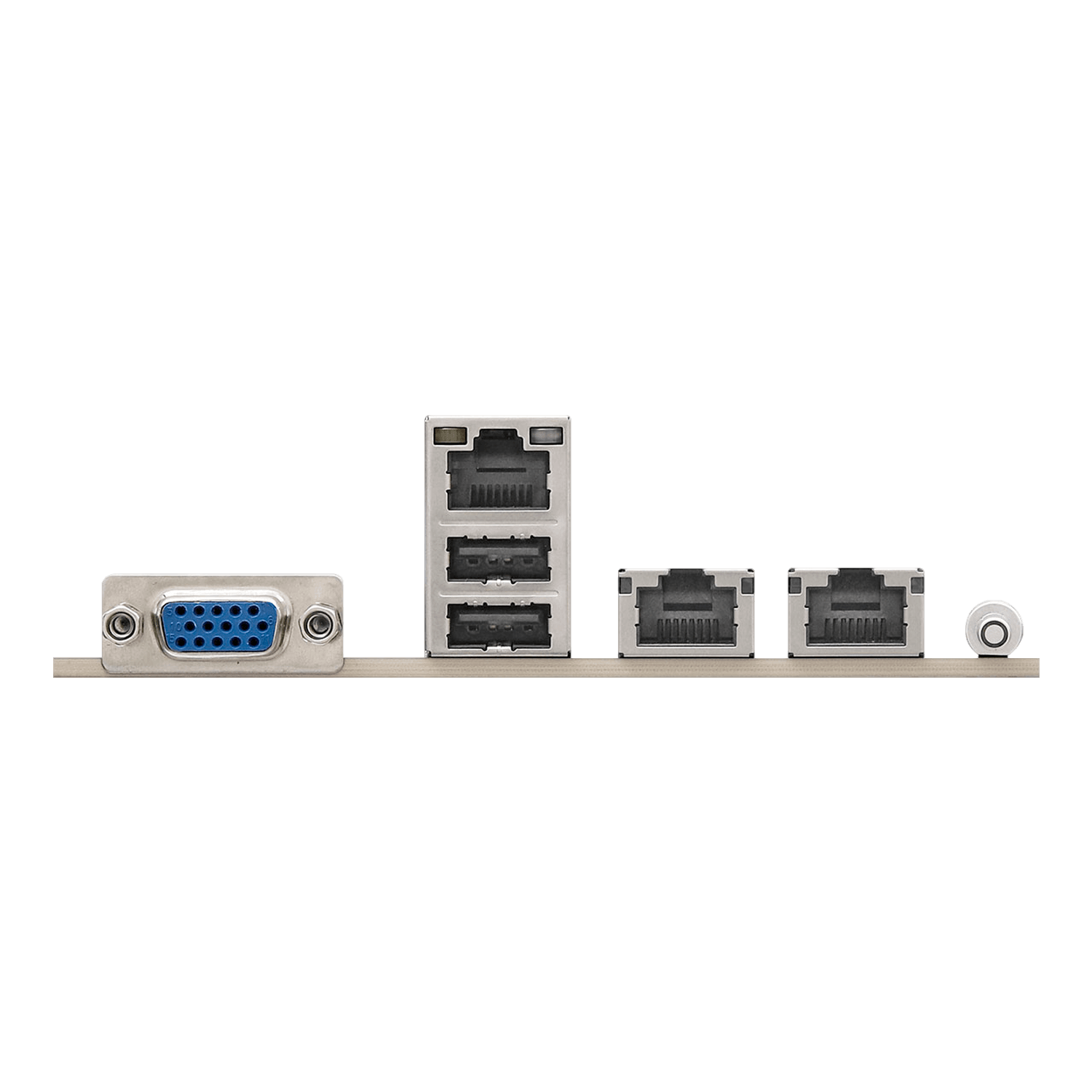

Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 2.0 Port 2 Type-A (UBS2.0)
RJ45 2 RJ45 (10GbE), 1 dedicated IPMI
Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 2 ( 8-pin, ATX 12V)
Other Power Connectors 2 (8-pin, add-on card power & FAN)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1 (9-pin)
VGA header 1 (15-pin)
Fan Header 8 (6-pin)
TPM Header 1 (13-pin, SPI)
VROC header 1
SGPIO Header 2
HSBP 2
SMBus header 2
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
NMI Header 1
LED Indicators
Standby PWR LED 1
80 Debug Port LED 1
Fan Fail LED 8
BMC heartbeat LED 1
System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash
Hardware Monitor
Temperature CPU, PCH, MB, Card side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage PSU +12V & +5VSB & +3.3V, +3VSB, PVNN_PCH, P1V05_PCH_STBY, P1V8_PCH_STBY, +BAT, PVCCIN_CPU0, PVCCIN_CPU1, PVCCINFAON_CPU0, PVCCINFAON_CPU1, PVCCFA_EHV_FIVRA_CPU0, PVCCFA_EHV_FIVRA_CPU1, PVCCD_HV_CPU0, PVCCD_HV_CPU1
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
