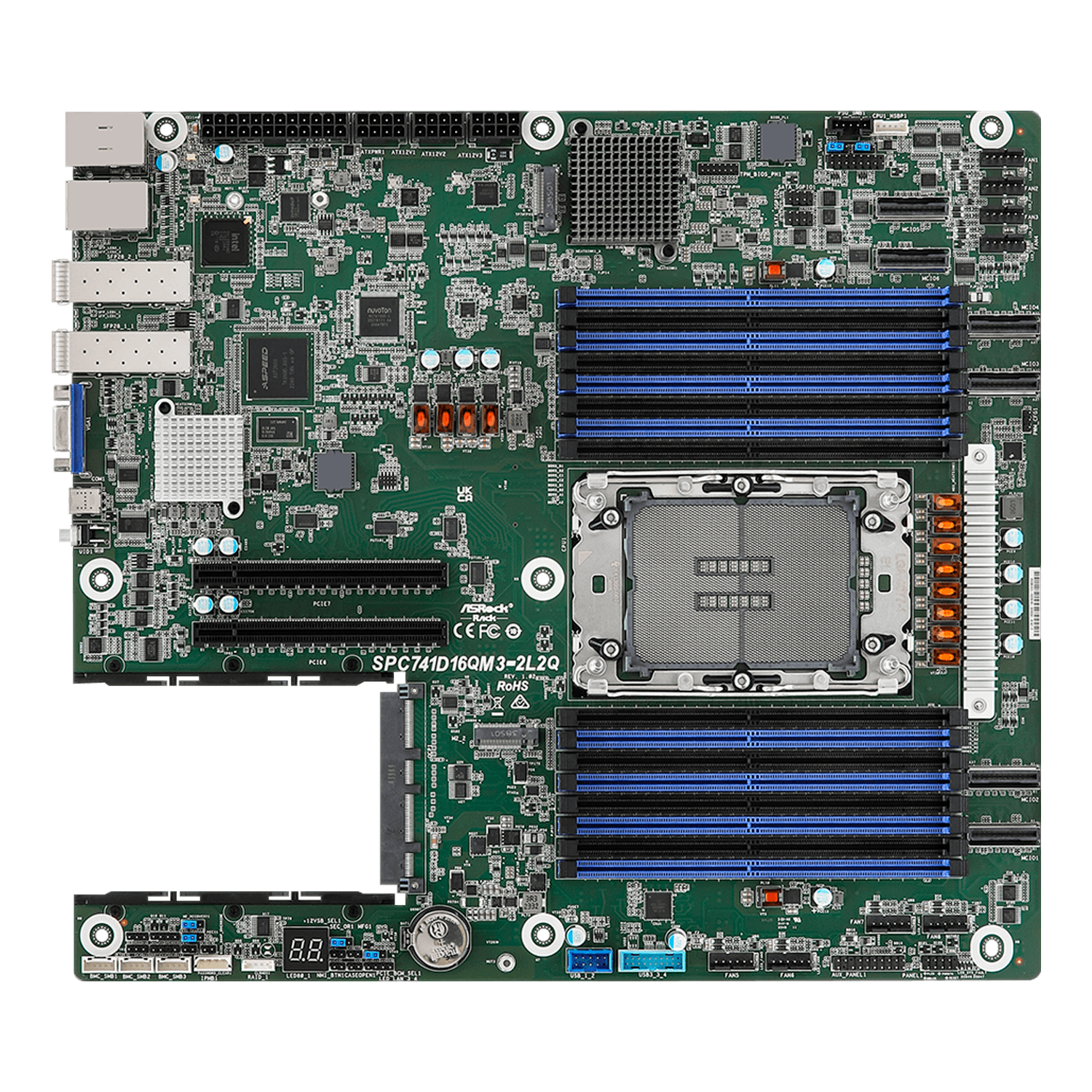

SPC741D16QM3-2L2Q, Intel® C741, LGA 4677, DDR5-5600 1.5TB ECC RDIMM / 16, VGA, M.2 / 2, MCIO / 6, USB 3.2 Gen1 / 2, 25GbLAN / 2, 1GbLAN / 2, EEB Retail

Quantity:
  • SKU: 16109148
  • Manufacturer: ASROCK
  • MPN: SPC741D16QM3-2L2Q
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$899.08
Quantity:
Physical Status
Form Factor EEB
Dimensions 12" x 13.4" (304.8 x 340.2 mm)
Processor System
CPU Supports 5th and 4th Gen Intel®Xeon®Scalable Processors
Socket Single Socket E (LGA 4677)
Thermal Design Power 350W
Chipset Intel®C741
System Memory
Supported DIMM Quantity 16 DIMM slots (2DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency 5600 MT/s (1DPC) / 4400 MT/s (2DPC) on 5th Gen Intel®Xeon®Scalable Processors
4800 MT/s (1DPC) / 4400 MT/s (2DPC) on 4th Gen Intel®Xeon®Scalable Processors
*Memory speed and capacity support varies by CPU SKU
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 / CXL1.1 x16 [CPU]
PCIe x 8 SLOT7: PCIe5.0 x8 [CPU]
Other PCIe Expansion Connectors
M.2 slot 1 M-key M2_1*(PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH]
1 M-key M2_2*(PCIe3.0 x2 or SATA 6Gb/s), supports 2280 form factor [PCH]
*M2_2 will be disabled when M2_1 populated with PCIe device.
*M2_1 will auto-switch to support SATA only when M2_2 is occupied.
*M2_2 supports SATA by default. Please contact ASRock Rack for PCIe3.0 x2 support.
Others 4 MCIO (PCIe5.0 x8) [CPU]
1 MCIO (PCIe3.0 x8 or 8 SATA 6Gb/s) [PCH]
1 MCIO**(PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
**MCIO supports 4 SATA 6Gb/s by default. Please contact ASRock Rack for PCIe3.0 x4 support.
SATA/SAS Storage
PCH Built-in Storage Intel®C741 (Up to 14 SATA 6Gb/s, support RAID 0/1/5/10):
1 MCIO for 8 SATA,1 MCIO for 4 SATA, 2 M.2
Ethernet
Additional GbE Controller 2 SFP28 (25GbE) by Broadcom BCM57414
2 RJ45 (1GbE) by Intel®i350
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU]
Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 header

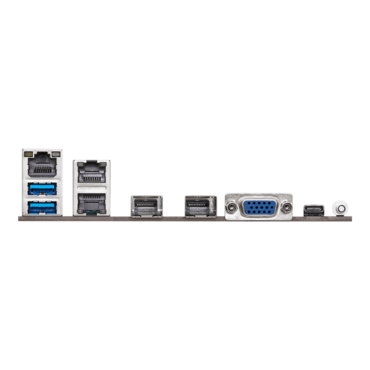

Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
Serial Port 1 rear via Type-C connector
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE), 1 dedicated IPMI
Other network connector 2 SFP28 (25GbE)
Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header 1 (15-pin)
Speaker Header 1 (4-pin)
Fan Header 8 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
VROC header 1
SGPIO Header 2
HSBP 1
SMBus header 3
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Others 1 NC-SI
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header 1 header (9-pin, 2 USB2.0)
NMI Header 1
LED Indicators
Standby PWR LED 1
80 Debug Port LED 1
Fan Fail LED 8
BMC heartbeat LED 1
System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
Hardware Monitor
Temperature CPU, PCH, MB, Card Side, M.2, RAM, TR1 Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, PVCCIN_CPU, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V_AUX
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
