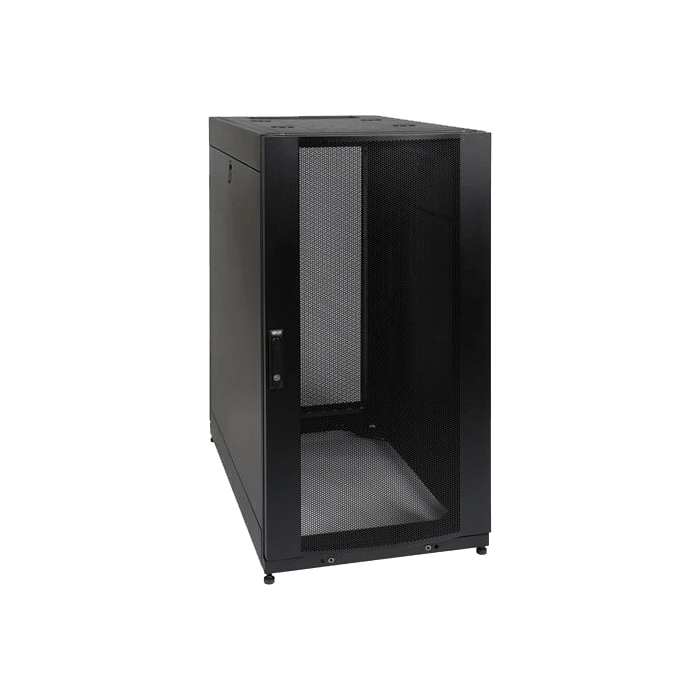

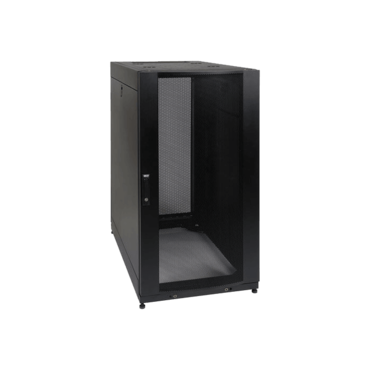

SR25UBSP1 SmartRack Premium Rack Enclosure, 25U, 1282mm x 609mm

  • SKU: 612496
  • Manufacturer: TRIPP LITE
  • MPN: SR25UBSP1
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
SR25UBSP1 SmartRack Premium Rack Enclosure, 25U, 1282mm x 609mm

25U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation.

SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying applications. SmartRack enclosures hold up to 3000 lbs and support cooling, cable management, power distribution and monitoring features that keep critical servers and network equipment operating nonstop. Perforated doors permit massive front to rear airflow that exceeds servers manufacturer requirements. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations.

  • Standard 25U SmartRack enclosure with additional shock pallet and loading ramps.
  • 4 interior vertical posts with unthreaded square hole openings
  • Standard 24" width for optimizing floor space
  • Ships fully assembled
  • Massive front to rear ventilation capacity
  • 3000 lb stationary / 2250 lb rolling load capacity
  • Locking, removable, reversible front and rear doors
  • Locking, removable side panels keyed alike with doors
  • Preinstalled casters and leveling feet
Rack Height (U Spaces) 25
Maximum Device Depth (in.) 37
Minimum Device Depth (in.) 4
Shipping Dimensions (hwd / in.) 49.000 x 43.000 x 25.000
Shipping Weight (lbs.) 245.0000
Unit Dimensions (hwd / in.) 49 x 23.63 x 43
Unit Weight (lbs.) 195
Color Black
Weight Capacity - Stationary (lbs.) 3000
Weight Capacity - Rolling (lbs.) 2250
Factory Preset Rack Depth (in.) 27.75
Grounding Lug Front and Back door frames
Certifications UL60950; RoHS; CE
Approvals EIA/ECA-310-E
Product Warranty Period (Worldwide) 5-year limited warranty

Package Includes

  • SR25UBSP1 Rack Enclosure
  • (2) Side door panels
  • (2) Side door locks
  • (2) Door & side panel keys
  • (50) M6 screws
  • (50) M6 cage nuts
  • (50) M6 washers
  • Owner's Manual
