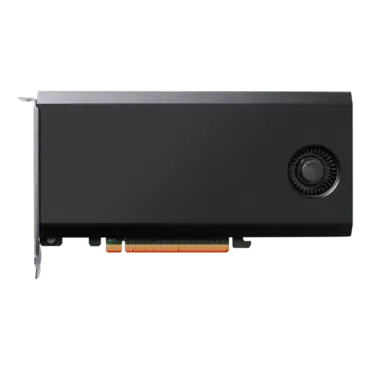

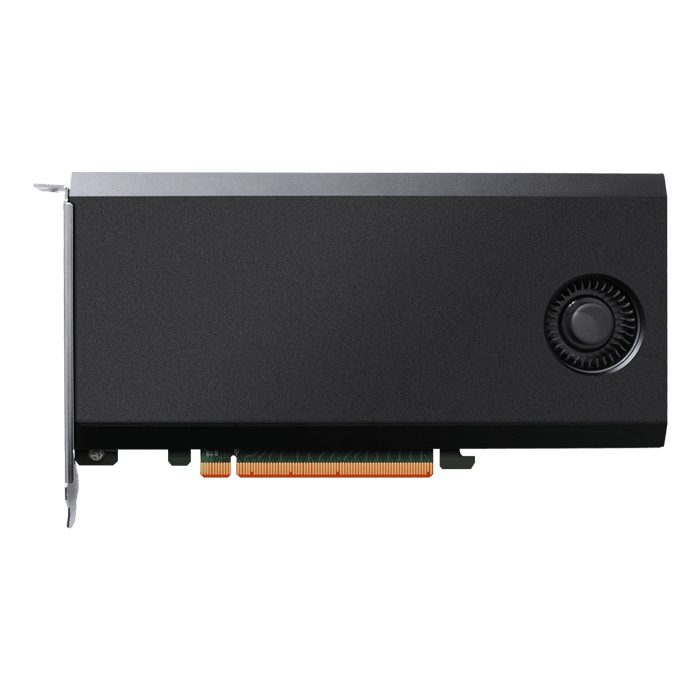

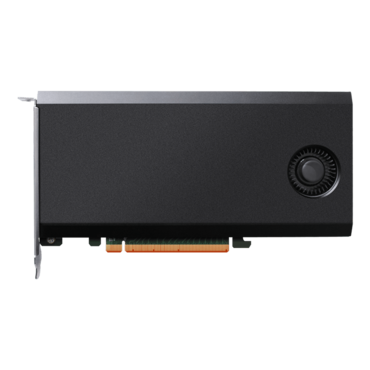

SSD7101A-1, 4x dedicated 32Gbps M.2 Ports to PCIe 3.0 x16, RAID Controller

  • SKU: 11465508
  • Manufacturer: HIGHPOINT
  • MPN: SSD7101A-1
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
SSD7101A-1, 4x dedicated 32Gbps M.2 Ports to PCIe 3.0 x16, RAID Controller

The SSD7101A-1 is the industry’s fastest NVMe M.2 RAID Controller. Designed for high-end desktop & workstation platforms, with support for Windows, Linux and macOS operating systems, it is capable of delivering sustained transfer performance over 13,000 MB/s; 8x faster than onboard NVMe solutions, and up to 44x faster than conventional SATA SSD’s! The SSD7101A-1 RAID Controller’s unique hardware architecture provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each M.2 SSD, and unlocks the true performance potential of NVMe based storage configurations.

  • Supports up to 4 off-the-shelf M.2 NVMe SSD’s
  • RAID 0, 1, 5, 1/0
  • Dual SSD7101A-1 Configurations deliver up to 25,000 MB/s
  • Supports Windows, Linux and macOS Systems
  • Dedicated PCIe 3.0 x16 bus bandwidth
  • Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
Bus Interface PCI-Express 3.0 x16
Number of Channel / Port 4x 2280 M.2 NVMe Ports (Dedicated PCIe 3.0 x4 per M.2 Port)
Data Transfer Rates 8GT/ 8Gbps per lane
Number of Devices Up to 4x M.2 NVMe SSD’s (Qualified: Samsung 960 EVO & PRO SSD)
Form Factor Full-Height
Dimensions 8.39” (L) x 5.00” (H) x 0.85” (D)
Weight 0.77 lbs.
Operating System Support Windows 10, Windows Server 2012 R2 or later
Linux Kernel 3.3 or later
macOS 10.13 or later
Cooling Fan Aluminum casing with single 50 x 50mm cooling fan
Storage Mode Data Storage only (non-bootable)
RAID Mode Support Single, RAID 0, 1, 5*, 1/0* (Mac support available in July 2018)
RAID Management Suites Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification Yes
Alarm Buzzer Yes
Storage Health Inspector Yes
NVMe SMART status Yes
Redundant RAID Configurations Yes
Single-RAID and Multi-RAID Arrays per Controller Yes
Cross-Sync RAID Solution over multi-SSD7101A-1 Controllers Yes
Work Temp +5°C ~ + 55°C
Storage Temp -20°C ~ +80°C
Relative Humidity 5% ~ 60% non condensing
Operating Voltage PCI-e: 12V, 3.3V
Power Typical: 8W
MTBF (Mean Time Before Failure) 920,585 Hours
Certification / Approval CE, FCC, RoHS, REACH, WEEE
