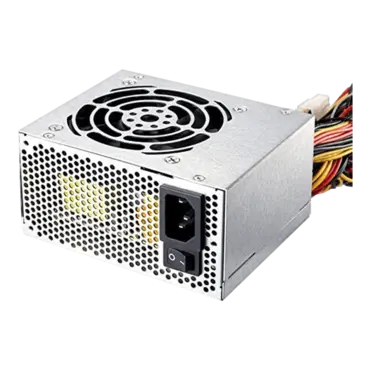

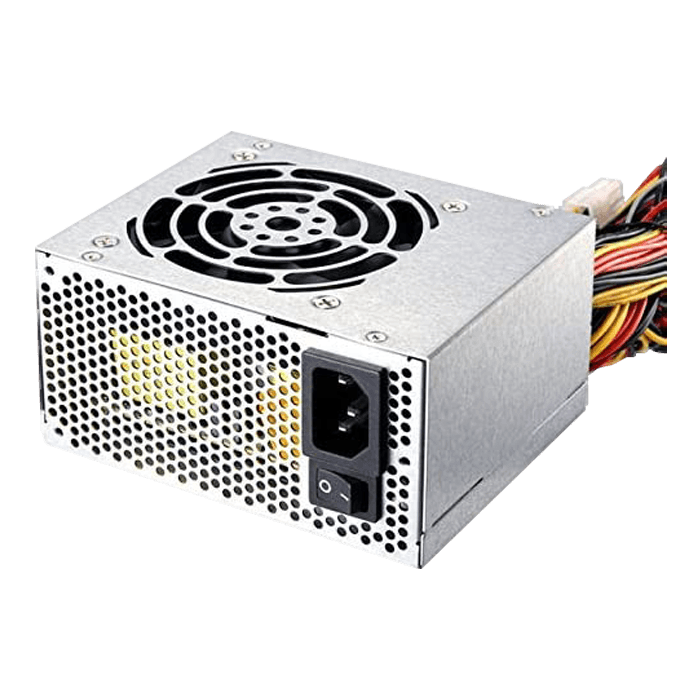

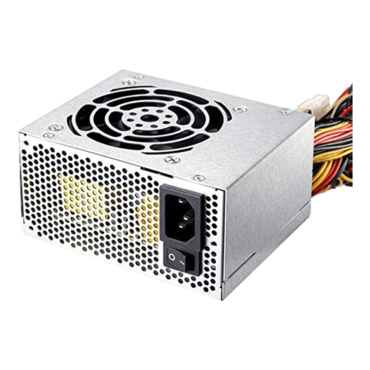

SSP-300SFB, 80 PLUS Bronze 300W, No Modular, SFX Power Supply
- SKU: 11842950
- Manufacturer: SEASONIC
- MPN: SSP-300SFB
- Availability: TEMPORARILY OUT OF STOCK
Price
$66.71
- SATA-ready
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- Fanless Mode (up to 30% load)
| Model | DC Outputs | Total Power | Input type | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | ||||
| SSP-300SFB | 20A | 20A | 18A | 18A | 0.8A | 2A | 300W | Full range |
| 110W | 252W | 9.60W | 10W | |||||
| Input frequency | 47 ~ 63 Hz | |||||||
| Inrush current, cold start | 100 A max. | |||||||
| Efficiency | 80 PLUS® Bronze | |||||||
| Line regulation | ± 1 % (typical) | |||||||
| Load regulation | ± 5 % (typical) | |||||||
| Cross regulation | ± 5 % (typical) | |||||||
| Ripple / Noise | 1 % | |||||||
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours | |||||||
| Active Power Factor Correction | 95 % (typical) | |||||||
| Connectors: | Main Power | |||||||
| Peripherals: | SATA, HDD | |||||||
