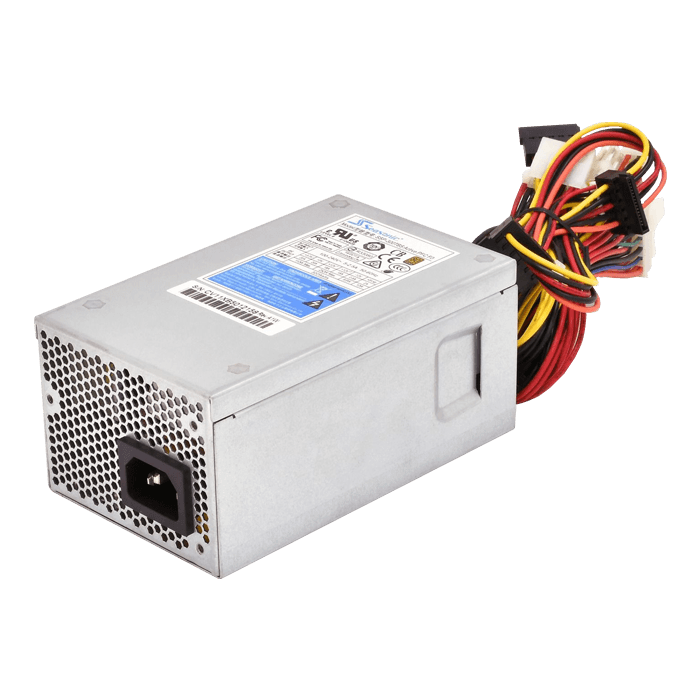

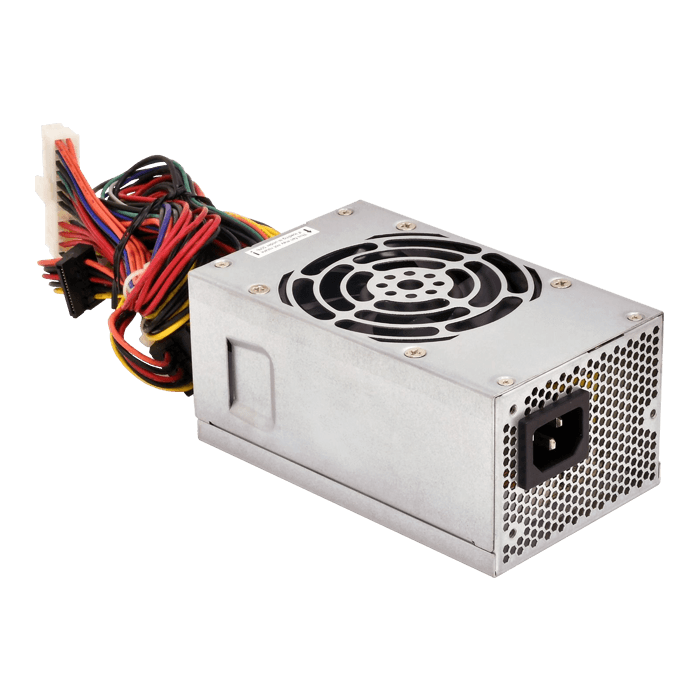

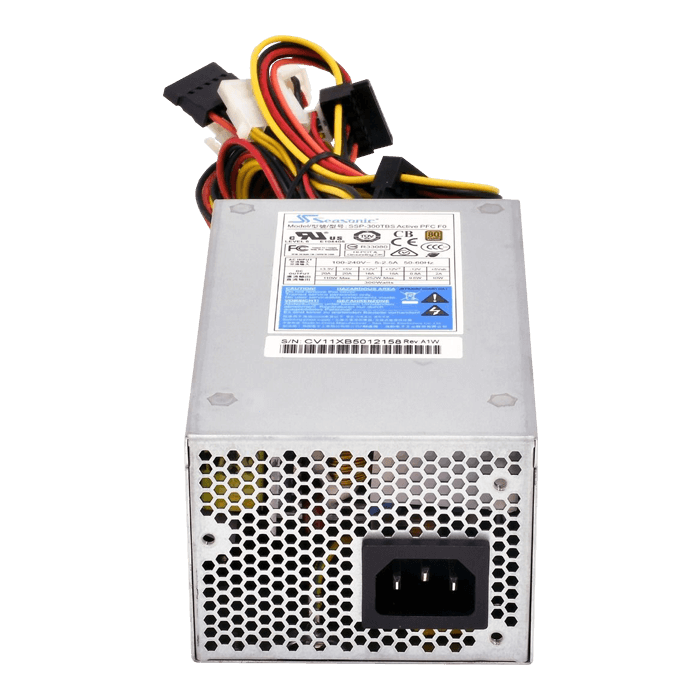

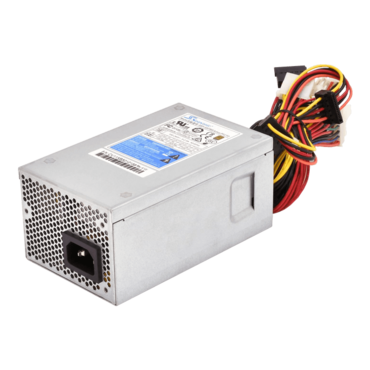

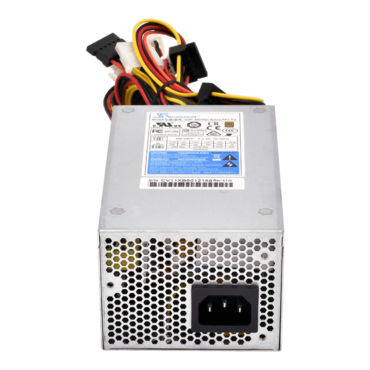

SSP-300TBS, 80 PLUS Bronze 300W, No Modular, TFX Power Supply
Quantity:
- SKU: 11525566
- Manufacturer: SEASONIC
- MPN: SSP-300TBS
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$73.13
| Model | TBS | ||||||
| 80PLUS | Bronze | ||||||
| Intel TFX 12 V v2.31 compliant | Yes | ||||||
| Dimensions | 140 mm (L) x 85 mm (W) x 65 mm (H) | ||||||
| DC to DC converter design | No | ||||||
| Forward converter circuit | Yes | ||||||
| Fully modular cables | No | ||||||
| Fixed cables | Yes | ||||||
| 80 mm double ball bearing fan | Yes | ||||||
| S3FC - including Fanless mode | Yes | ||||||
| S2FC - Smart and Silent Fan Control | No | ||||||
| Zero minimum load on 3.3 V rail | No | ||||||
| Short circuit protection on all outputs | Yes | ||||||
| Over voltage protection | Yes | ||||||
| Over power protection | Yes | ||||||
| 100 % HiPot test | Yes | ||||||
| 100 % Burn-in, high temperature cycled on/off | Yes | ||||||
| Safety compliance | CB, cUL, TUV, CCC, BSMI | ||||||
| EMI/EMC compliance | CE, FCC, RCM | ||||||
| Input frequency | 47 / 63 Hz | ||||||
| Inrush current at cold start | 100 A max. | ||||||
| Efficiency | 80 PLUS Bronze | ||||||
| Line regulation | ± 1 % (typical) | ||||||
| Load regulation | ± 5 % (typical) | ||||||
| Cross regulation | ± 5 % (typical) | ||||||
| Ripple / noise | 1 % | ||||||
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours | ||||||
| Active Power Factor Correction | > 95 % (typical) | ||||||
| DC Outputs | |||||||
| +3.3V | +5 V | +12 V1 | +12 V2 | -12V | +5 Vsb | Total continuous power | Input Type |
| 20 A | 20A | 18 A | 18 A | 0.8 A | 2 A | 300W | 100-240 VAC |
| 110 W | 252 W | 9.6 W | 10 W | ||||
