SST-AR09-115XS, 66mm Height, Copper/Aluminum CPU Cooler

  • SKU: 11008308
  • Manufacturer: SILVERSTONE
  • MPN: SST-AR09-115XS
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
SST-AR09-115XS, 66mm Height, Copper/Aluminum CPU Cooler

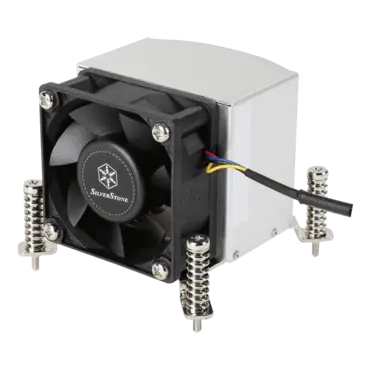

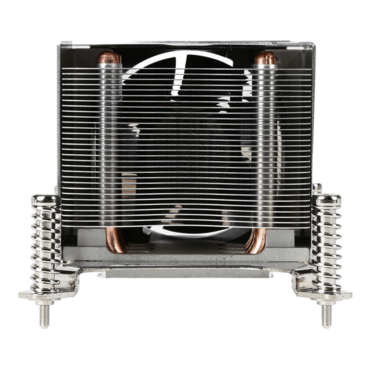

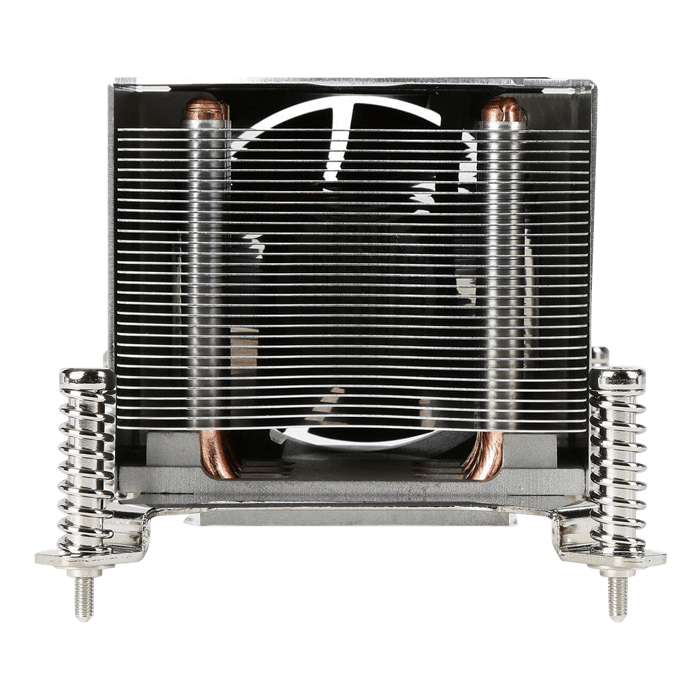

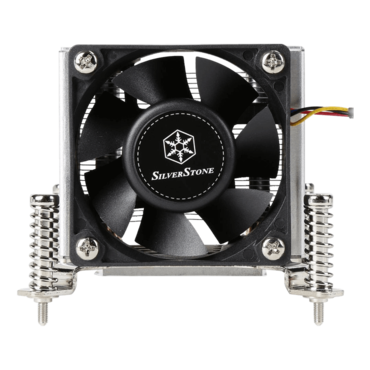

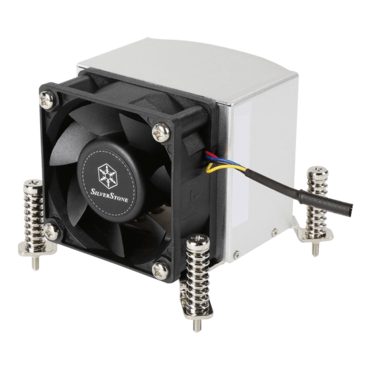

SilverStone AR09-115XS is a CPU cooler designed for 2U rackmount server or small form factor cases. Its features three 6mm thick copper heat pipes connected to the base using heat-pipe direct contact (HDC) technology and a 60mm dual ball bearing PWM fan. In addition, its heatsink fins have wave-shaped design that works efficiently with the included air duct to help quickly wick away heat for exceptional CPU cooling performance.

Model No. SST-AR09-115XS
Material Copper heat pipes with aluminum fins
Application Intel LGA1150/1151/1155/1156
Heat Pipe Type Ø6mm heat-pipe x 3
Cooling System 60mm x 60mm x 25mm fan
Dimension w/fan 88mm (W) x 66mm (H) x 88mm (D) (with Fan)
3.46" (W) x 2.6" (H) x 3.46" (D) (with Fan)
Max air pressure 0.33 ~ 4.83mmH2O
Noise 18.02 ~ 42.5dBA
Bearing Dual ball bearing
Voltage Rating (V) 12V
Air Flow (CFM) 6.7 ~ 27.9CFM
Start Voltage (V) 9.6V
Life Expectance (hrs) 70,000 hours
Speed (R.P.M.) 1200 ~ 5000RPM
Net weight 295g (without fan)
