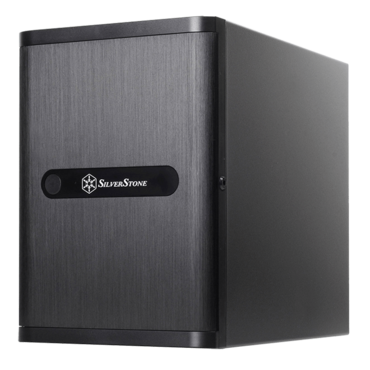

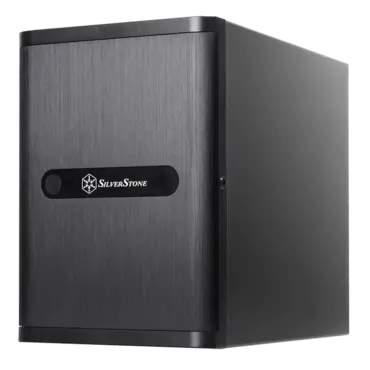

For users migrating to small form factor (SFF) computers with large libraries of media files, storage capacity is often a compromise that is difficult to overcome. Choosing a smaller case may require additional purchase of external storage enclosure, while choosing a larger case with extra drive bays may defeat the purpose of going SFF in the first place. To fulfill the needs of enthusiasts looking for a no compromise SFF media box, SilverStone designed a cutting edge product, the DS380. With the ability to accommodate standard components such as Mini-ITX motherboards, standard-length dual slot expansion card, and entry-level liquid CPU cooling system, the DS380 can easily handle high end system based on CPU with 95W TDP or above. Equipped with two 120mm intake fans and one 120mm exhaust fan plus externally removable filters on its top and side, keeping everything cool and dust-free is as easy as in any SilverStone premium chassis. Notable features from SilverStone’s famed HTPC cases were also included such as LED indicator with adjustable brightness and lockable front door and power button. Completing what is an impressive SFF case is DS380’s signature feature, a modular eight hot-swappable drive cage design that support both 3.5” and 2.5” drives. It utilizes a custom back panel PCB designed to support both SATA and SAS interface for increased compatibly with nearly all modern hard drives or SSDs. At only 21 liters overall, the impressively small DS380 is perfect for anyone looking to build a powerful SFF NAS for home or office.
- Supports 12 total drives with 8 hot-swappable 3.5” or 2.5” SAS/SATA and 4 fixed 2.5” drives
- Unbelievable storage space and versatility for small form factor

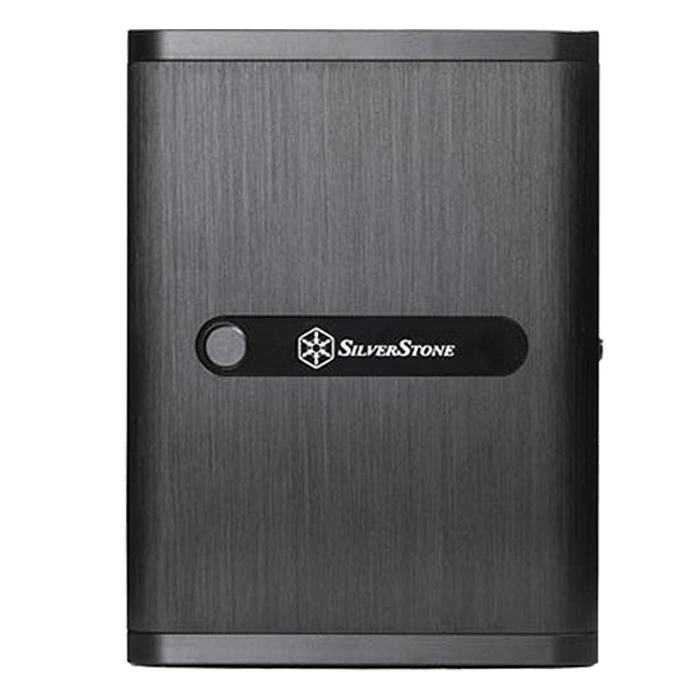

- Premium brushed aluminum front door
- Supports graphics card up to 11” with supporter design from TJ08-E
- Lockable power button design and adjustable LED from GD07
- Includes three 120mm fans with filtered intake vents
Model No. |
SST-DS380B (black) | |
Material |
Aluminum front door, SECC body | |
Motherboard |
Mini-DTX, Mini-ITX | |
Drive Bay |
External | 3.5” SAS/ SATA hot-swap x 8 (2.5” compatible) |
-- | ||
Internal | 2.5” x 4 | |
Cooling System |
Front | -- |
Rear | 1 x 120mm 1200rpm 22dBA | |
Side | Left - 2 x 120mm 1200rpm 22dBA | |
Top | -- | |
Bottom | -- | |
Internal | -- | |
Expansion Slot |
2 | |
Front I/O Port |
USB 3.0 x 2 audio x 1 MIC x 1 |
|
Power Supply |
SFX, SFX -LPSU (sold separately) | |
Expansion Card |
*Compatible with 11” long and 4.38” wide | |
Limitation of CPU cooler |
57mm | |
Dimension |
211mm (W) x 285mm (H) x 360mm (D), 21.6 liters | |
Extra |
Kensington lock | |
Remark *Installation of expansion card up to maximum size will occupy one hot-swap bay space, please refer user manual for more information. |
