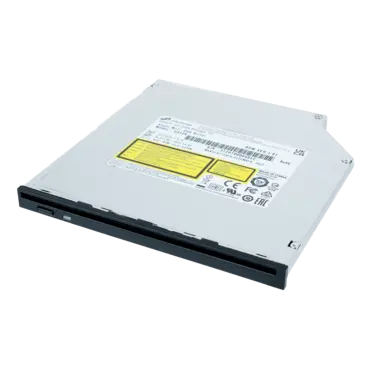

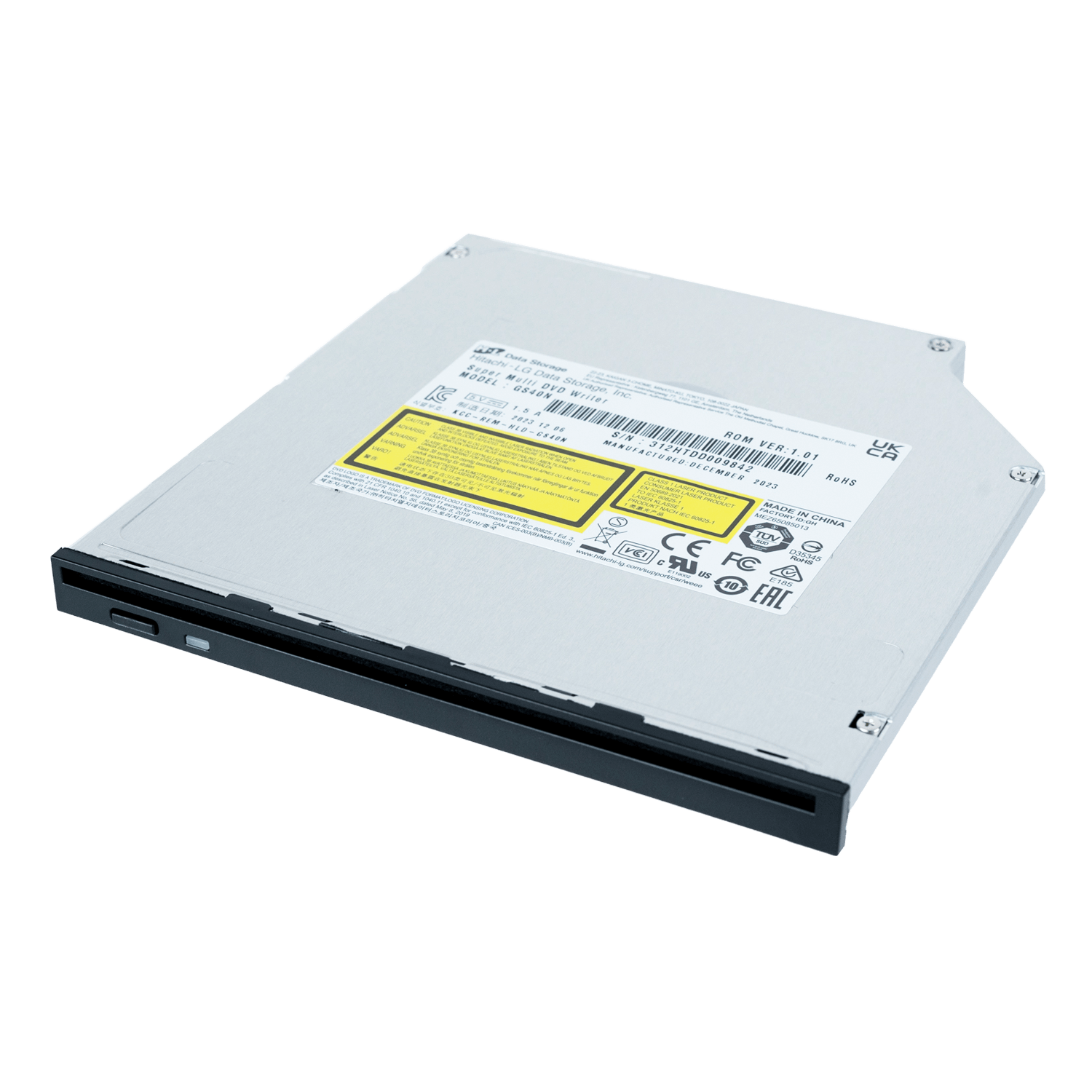

SST-SOD04-V2, DVD 8x / CD 24x, DVD Disc Burner, Slim Slot-loading, Optical Drive
- SKU: 20292990
- Manufacturer: SILVERSTONE
- MPN: SOD04-V2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Designed for the chassis requiring installation of a slim optical drive
- DVD / CD read and write
- Slot loading design for elegant integration
- Maximum 1.5 Gbits data transfer speed and stability with SATA interface
- Complete retail pack includes SATA cable, screws, user manual and 12.7mm bezel.
| Model No. | SST-SOD04-V2 |
| Max. Read Speed |
CD-R/ RW/ ROM/ DA(DAE) : Max. 24x DVD Video : 4x Max. DVD-R/ ROM/ RW : Max. 8x DVD+R DL : Max. 8x DVD-RAM : Max. 6x DVD+R/+RW : Max. 8x |
| Max. Write Speed |
CD-RW : Max.10x CLV,16x ZCLV CD-R : Max. 24x CAV High Speed CD-RW : 10x CLV Ultra Speed CD-RW : 16x Zone CLV DVD-R : Max.8x CAV DVD-R DL : Max.6x Partial CAV DVD-RW : Max.6x Zone CLV DVD+R : Max.8x CAV DVD+R DL : Max.6x Partial CAV DVD+RW : Max.8X Zone CLV DVD-RAM 2x, 3x CLV, 5x PCAV(Ver.2.2) |
| Access speed |
CD-ROM : 140ms(typ.)---Random DVD-ROM : 160ms(typ.)---Random DVD-RAM : 260ms(typ.)---Random |
| Interface | SATA interface (150Mbyte/s). |
| Buffer memory | 0.75MB |
| Power Supply | 5Vdc from computer’s power supplier |
| Power requirement | 5Vdc |
| Dimension | 128 mm (W) x 9.5mm (H) x 127mm (D) 128mm (W) x 12.7mm (H) x 127mm (D) (includes bezel) |
| Net weight | 145±10g |
