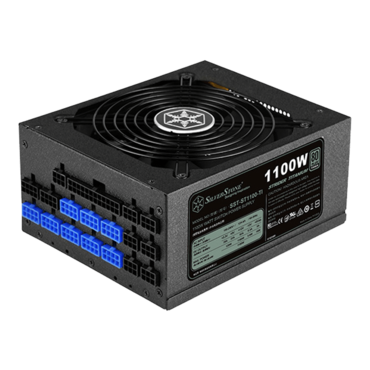

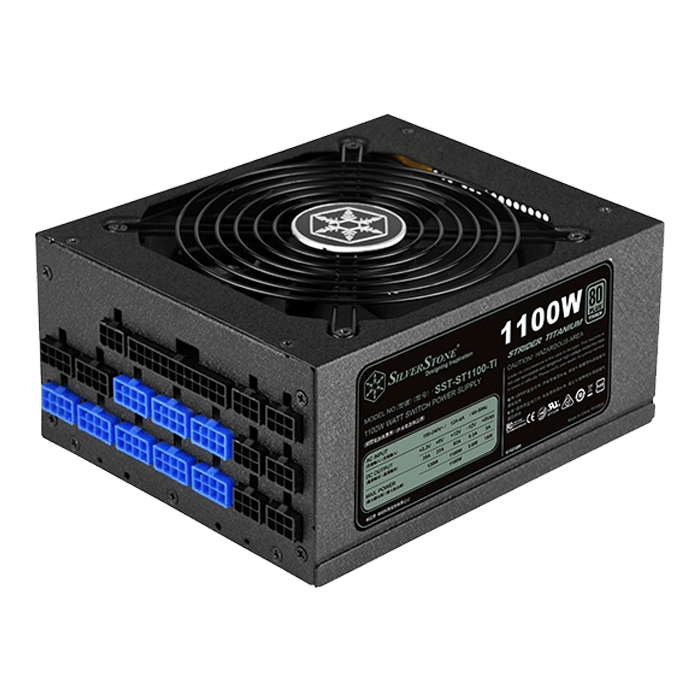

ST1100-TI, 80 PLUS Titanium 1100W, Fully Modular, ATX Power Supply
The 80 PLUS Titanium certification represents the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. For SilverStone, achieving the highest efficiency is just one aspect to what makes for a technically advanced power supply. The available power also needs to be condensed into a physical package as small as possible so that users can freely utilize it in any case or system with minimal interference. For the Strider Titanium series power supplies, all models are among the smallest in size for their wattage levels. As befitting of being in the Strider series, abundant enthusiasts features are included such as all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output at 50°C, and dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support. For those looking to build the most efficient systems possible with multiple GPUs for gaming, folding, mining, scientific calculations, or machine learning, the 1100W Strider Titanium series power supplies are definitely the top choices.
The 80 PLUS Titanium certification represents the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. For SilverStone, achieving the highest efficiency is just one aspect to what makes for a technically advanced power supply. The available power also needs to be condensed into a physical package as small as possible so that users can freely utilize it in any case or system with minimal interference. For the Strider Titanium series power supplies, all models are among the smallest in size for their wattage levels. As befitting of being in the Strider series, abundant enthusiasts features are included such as all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output at 50°C, and dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support. For those looking to build the most efficient systems possible with multiple GPUs for gaming, folding, mining, scientific calculations, or machine learning, the 1100W Strider Titanium series power supplies are definitely the top choices.
- Top-level efficiency with 80 PLUS Titanium certification
- All Japanese capacitors
- 100% modular cables
- 24/7 continuous power output with 50°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support
- Ultra silent 135mm fan with intelligent semi-fanless operation
Model No. |
SST-ST1100-TI
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Output |
1100W (Peak 1200W)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Power density |
474W per liter
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
Black (lead-free paint)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
combined +3.3, +5V |
120W
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Combined +12V |
1100W
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
90 ~ 264 Vrms
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Input Frequency Range |
47Hz ~ 63Hz
|
|||||||||||||||||||||||||||||||||||||||||||||||||
PFC |
Active PFC (PF>0.9 at full load)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency |
90% ~ 94% at 10% ~ 100% loading
|
|||||||||||||||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
0 ~ 50°C
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
Over Current Protection
Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||
Connectors |
1 x 24 / 20-Pin motherboard connector (550mm)

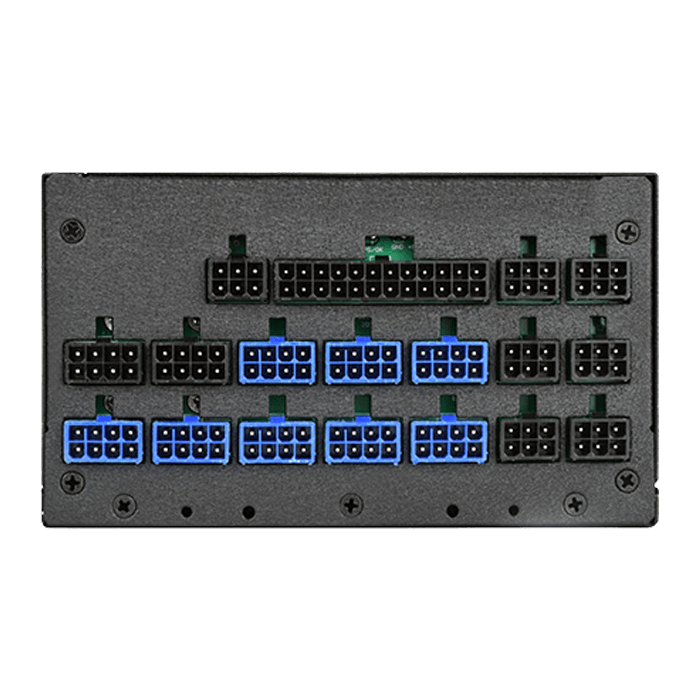

1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 8 x 8 / 6-Pin PCIE connector ("550mm" x 8) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm) |
|||||||||||||||||||||||||||||||||||||||||||||||||
Cooling System |

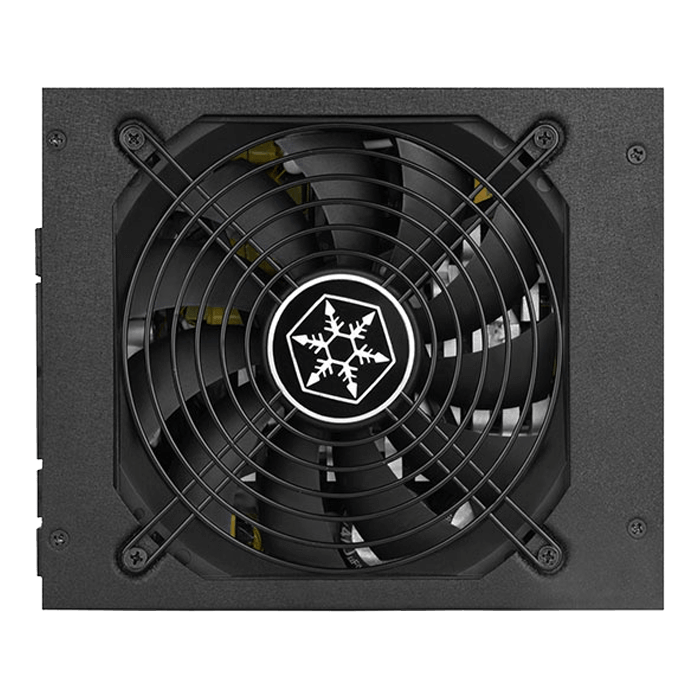

Single 135mm silent fan
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Form factor |
ATX
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Noise Level |
0 ~ 36 dBA
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D) |
|||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
3.96 kg
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
80 PLUS Titanium
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Other |
Compatible with ATX12V v2.4
|
