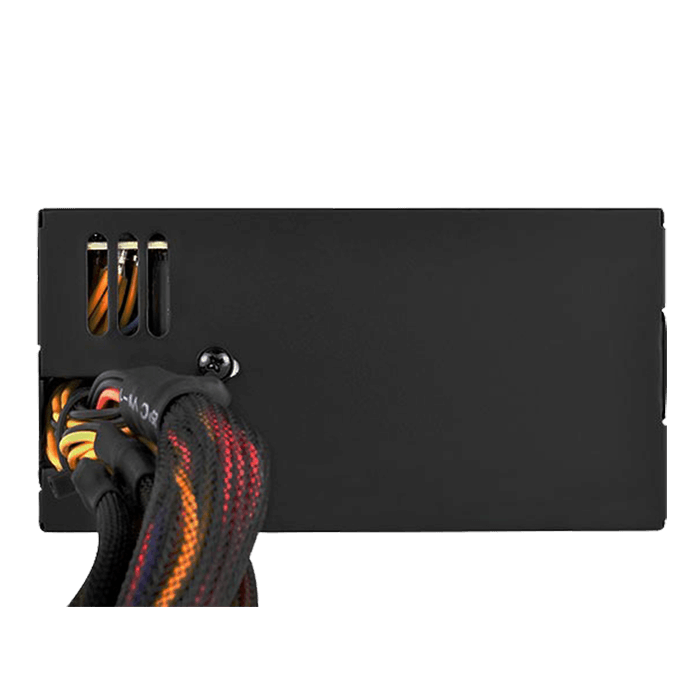

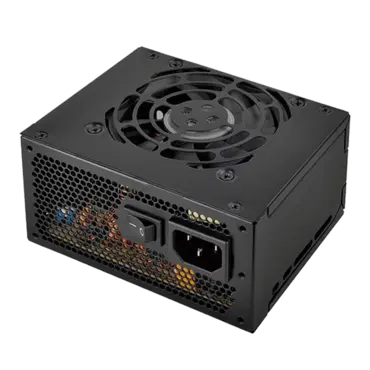

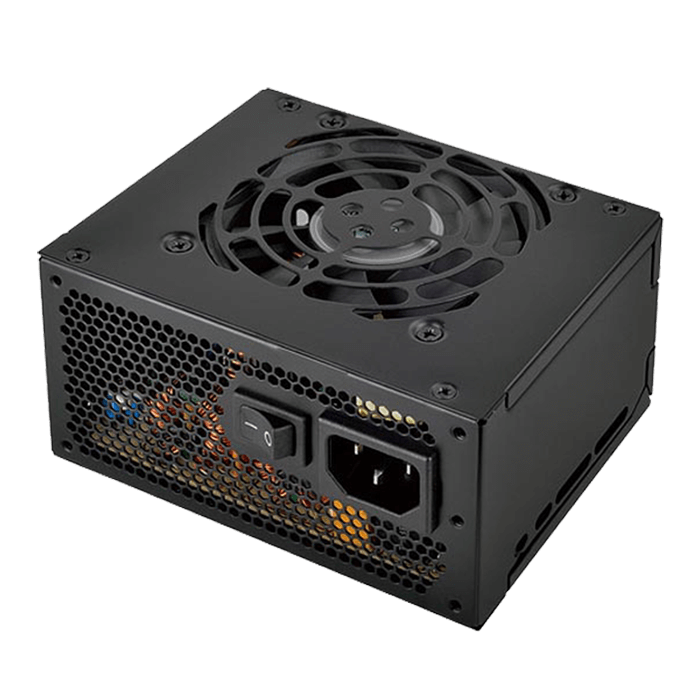

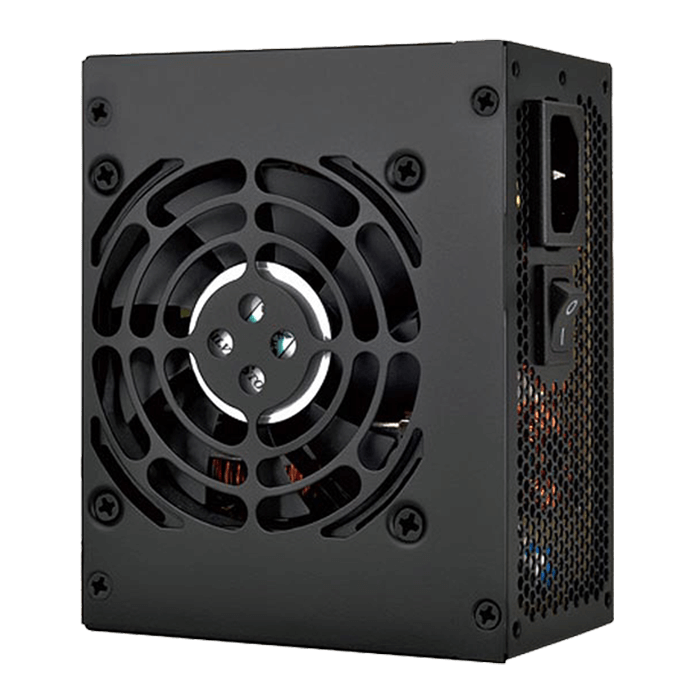

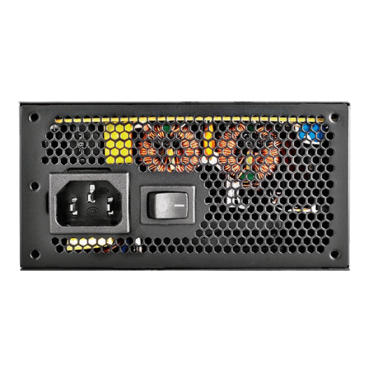

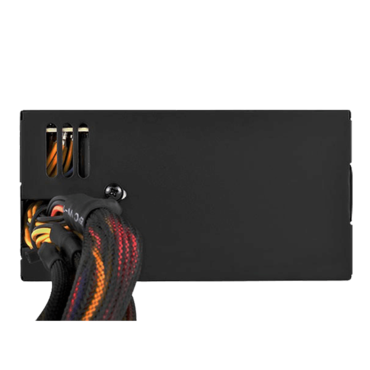

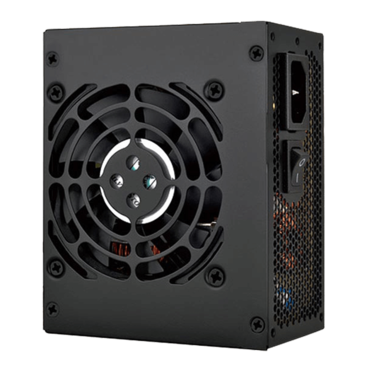

As the standards bearer of SFF (small form factor) cases and SFX PSUs, SilverStone has released a reference power supply design for the masses in the ST30SF, a 300W SFX unit designed with high affordability and great performance. It has 80 PLUS Bronze efficiency and a silent running fan for class leading efficiency and low noise.
To enable users to easily take advantage of this excellent SFX power supply, an adapter is included to convert ST30SF to mount in any ATX case in addition to ones that fit only SFX. For SFF users, the ST30SF is an excellent, well-rounded power supply for any DIY desktop computer.
Model No. |
SST-ST30SF
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Output |
300W
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power density |
378W per liter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
Black(Lead-Free Paint)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
combined +3.3, +5V |
90W (V2.0)
103W (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
combined +12V |
300W / 25A (V2.0)
264W / 22A (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
90 - 264 Vrms
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFC |
Active PFC(PF>0.9 at Full Load)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency |
82%~85%(20% to 100% loading)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
0 ~ 40?(V2.0)
10°C ~ 50°C (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
Over Current Protection
Over Voltage Protection Short Circuit Protection Over Power Protection (V2.0 only) Under Voltage Protection (V2.0 only) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectors |
1 x 24 / 20-Pin motherboard connector(300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(400mm) 1 x 6-Pin PCIE connector(400mm) 3 x SATA connector (300mm / 200mm / 100mm) 2 x 4-Pin Peripheral connector (300mm / 200mm) 1 x 4-Pin Floppy connector(300mm / 200mm / 200mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cooling System |
Single 92mm silent fan (V2.0)
Single 80mm silent fan (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Level |
18dBA minimum (V2.0)
0 ~ 38 dBA (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
125 mm (W) × 63.5 mm (H) × 100 mm (D)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
1.0 kg (V2.0)
0.8 kg (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Form factor |
SFX
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
80 PLUS Bronz
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other |
Includes SFX to ATX bracket for use in ATX case
Compatible with ATX12V v2.4 |
