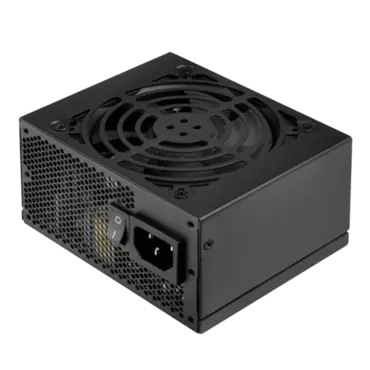

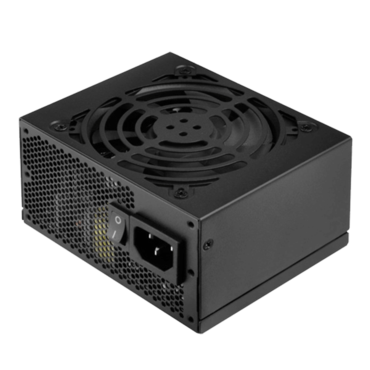

After successfully revolutionizing both HTPC and SFF market segments with innovative chassis designs, SilverStone engineers continue their push for advancement in these categories by releasing a true upgrade-worthy small form factor power supply, the ST45SF. This SFX unit is compatible not only with chassis that use SFX power supplies but also in smaller ATX chassis with the included adapter bracket. Despite its small size, the ST45SF has features that one would expect from an elite ATX power supply such as 80 PLUS Bronze level of efficiency, temperature controlled fan, 50 °C / 40 °C temperature rating, and reliability for 24/7 operation. Enthusiasts oriented features are also present with single +12V rail and 8pin/6pin PCI-E connectors to fully support multi-GPU systems. For SFF users and for SilverStone, the ST45SF is more than just an upgrade, it is an important milestone for the DIY desktop computer.
Model No. |
SST-ST45SF
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Output |
450W
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power density |
567W per liter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color |
Black(Lead-Free Paint)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
combined +3.3, +5V |
110W (V3.0)
120W (V2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
combined +12V |
450W / 37.5A (V3.0)
432W / 36A (V2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
90 ~ 264 Vrms
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFC |
Active PFC.(PF>0.9 at Full Load)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency |
82%~85%(20% to 100% loading)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
0 ~ 40 °C (V3.0)
10°C ~ 50°C (V2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
Over current protection
Over voltage protection Short circuit protection Over Power Protection (V3.0 only) Under Voltage Protection (V3.0 only) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectors |
1 x 24 / 20-Pin motherboard connector(300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(400mm) 1 x 8/6-Pin PCIE connector(400mm) 1 x 6-Pin PCIE connector(400mm / 150mm) 3 x SATA connector(300mm / 220mm / 100mm) 2 x 4-Pin Peripheral connector (300mm / 200mm) 1 x 4-Pin Floppy connector(300mm / 200mm / 200mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cooling System |
Single 92mm silent fan (V3.0)
Single 80mm silent fan (V2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Level |
18dBA minimum
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
125 mm (W) × 63.5 mm(H) × 100 mm(D)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
1.1 kg (V3.0)
1 kg (V2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Form factor |
SFX
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other |
Includes SFX to ATX bracket for use in ATX case
Compatible with ATX12V v2.4 |
