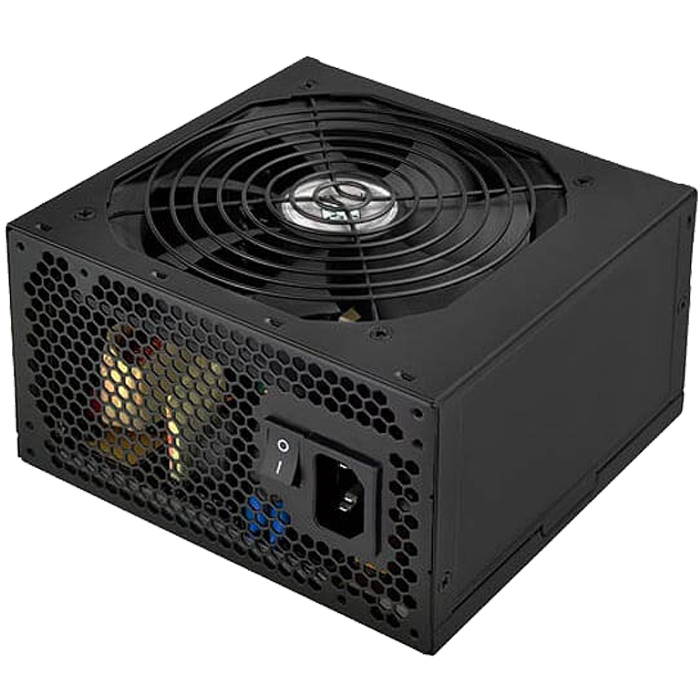

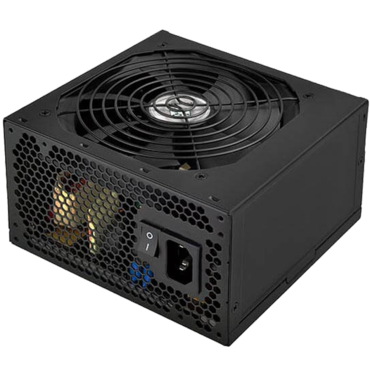

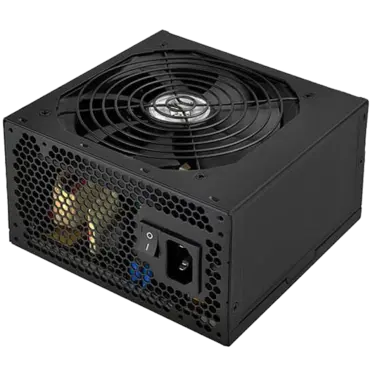

ST50F-ESG, 80 PLUS Gold 500W, No Modular, ATX Power Supply
Quantity:
- SKU: 8410352
- Manufacturer: SILVERSTONE
- MPN: ST50F-ESG
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$106.95
ST50F-ESG, 80 PLUS Gold 500W, No Modular, ATX Power Supply
The ST50F-ESG SilverStone Essential Gold is PSU with 80 PLUS Gold certification within the affordable Strider Essential series. They retain practical and reliable fixed-cable layout from other Strider Essential PSUs and adhere to the same outstanding characteristics from all Strider series PSUs with no comprise in quality and reliability.
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Multiple protection circuitry
- PCI-E 8pin and PCI-E 6pin connectors support
- Built-in silent & durable hybrid ceramic bearing (HYB) fan
- Active PFC

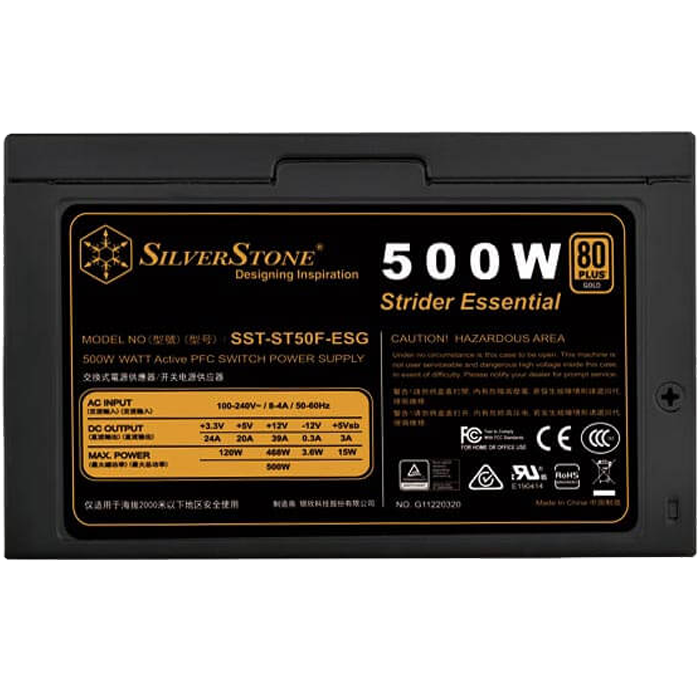

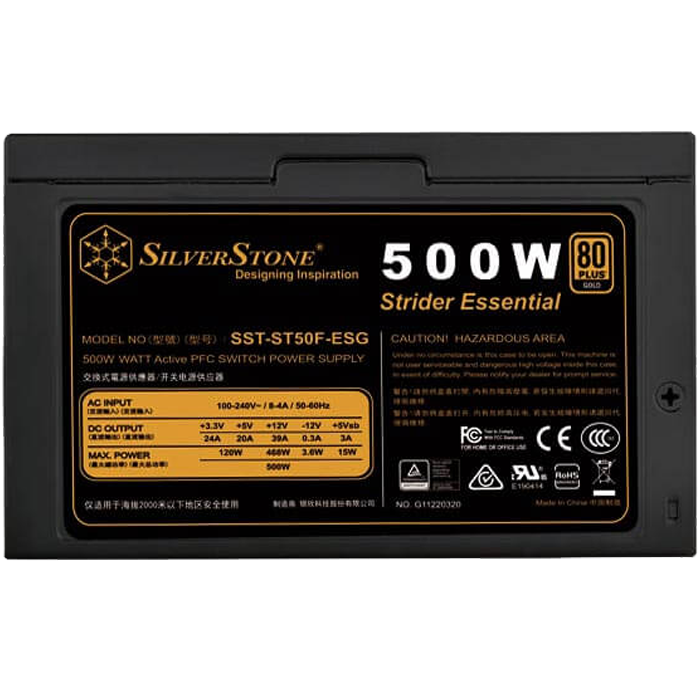

| Model No. | SST-ST50F-ESG |
| Max. DC Output | 500W |
| Color | Black(Lead-Free Paint) |
| combined +3.3, +5V | 120W |
| combined +12V | 468W |
| Input Voltage | 90V~264Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC(PF>0.95 at Full Load) |
| Efficiency | 87%~90% @ 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection
Over current protection Over voltage protection Short circuit protection Under voltage protection |
| Connectors | 1 x 24-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(600mm) 2x 8/6-Pin PCIE connector(500mm / 150mm) 1 x SATA connector(550mm) 4 x SATA connector(550mm / 50mm / 50mm / 50mm) 4 x SATA connector(550mm / 155mm / 155mm / 155mm) 3 x 4-Pin Peripheral connector (705mm / 155mm / 155mm) 1 x 4-Pin Floppy connector(705mm / 155mm / 155mm / 100mm) |

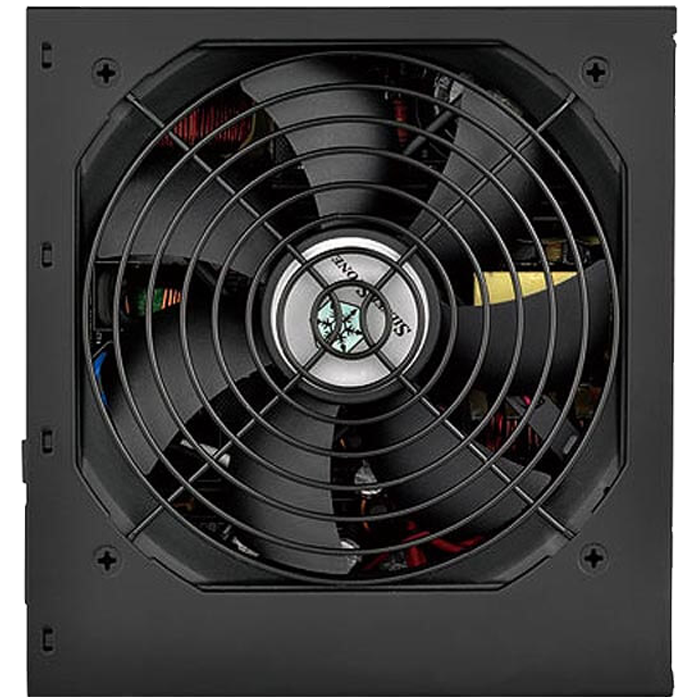

| Cooling System | Single 120mm HYB fan |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) × 86 mm (H) × 140 mm (D) |
| Weight | 1.95kg |
| Form factor | ATX |
| Certification | 80 PLUS Gold |
| Other | Compatible with ATX12V v2.4 |
