- Compact design with a depth of 140mm for easy integration
- 80 PLUS Gold certification
- 100% modular cables
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA minimum
Model No. | SST-ST55F-GS | ||||||||||||||||||||||||||||||||||||
Max. DC Output | 550W | ||||||||||||||||||||||||||||||||||||
Power density | 305W per liter | ||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
Color | Black (lead-free paint) | ||||||||||||||||||||||||||||||||||||
Combined +3.3V & +5V | 100W | ||||||||||||||||||||||||||||||||||||
Combined +12V | 540W | ||||||||||||||||||||||||||||||||||||
Input Voltage | 90V~264V | ||||||||||||||||||||||||||||||||||||
Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||
PFC | Active PFC.(PF>0.9 at Full Load) | ||||||||||||||||||||||||||||||||||||
Efficiency | 87%~90% at 20%~100% loading | ||||||||||||||||||||||||||||||||||||
MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||
Operating temperature | 0°C ~ 40°C | ||||||||||||||||||||||||||||||||||||
Protection | Over power protection
Over current protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection |
||||||||||||||||||||||||||||||||||||

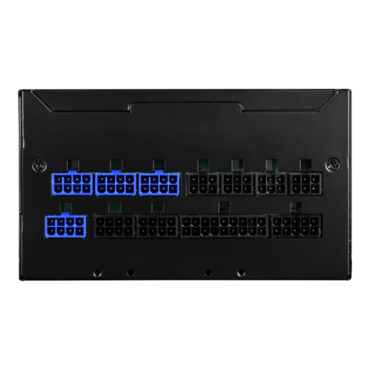

Connectors | 1 x 24 / 20-Pin motherboard connector(600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) 2 x 8 / 6-Pin PCIe connector(550mm) 8 x SATA connector("600mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector(600mm / 150mm / 150mm) 1 x 4-Pin Floppy connector(150mm) |
||||||||||||||||||||||||||||||||||||

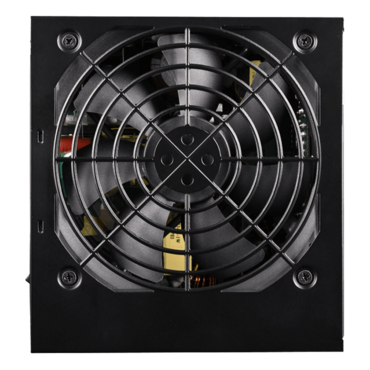

Cooling System | Single 120mm silent fan | ||||||||||||||||||||||||||||||||||||
Form factor | ATX | ||||||||||||||||||||||||||||||||||||
Noise Level | 18 dBA minimum | ||||||||||||||||||||||||||||||||||||
Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D) |
||||||||||||||||||||||||||||||||||||
Weight | 1.25 kg | ||||||||||||||||||||||||||||||||||||
Certification | 80 PLUS Gold | ||||||||||||||||||||||||||||||||||||
Other | GPU Support list
Compatible with ATX12V v2.4 |
