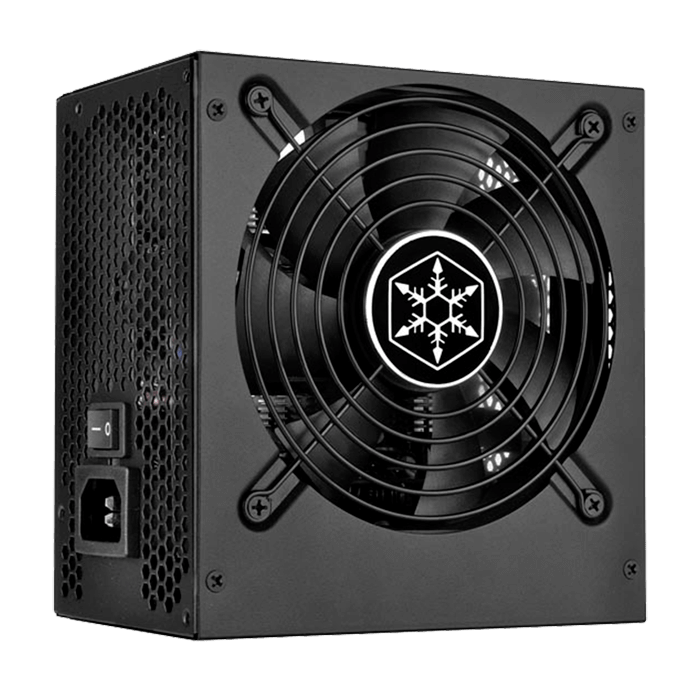

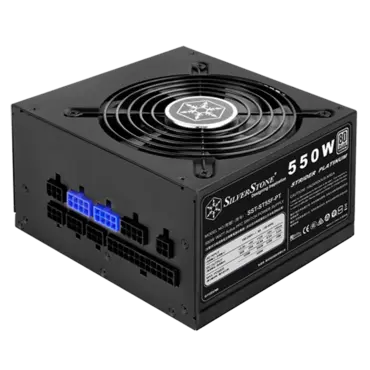

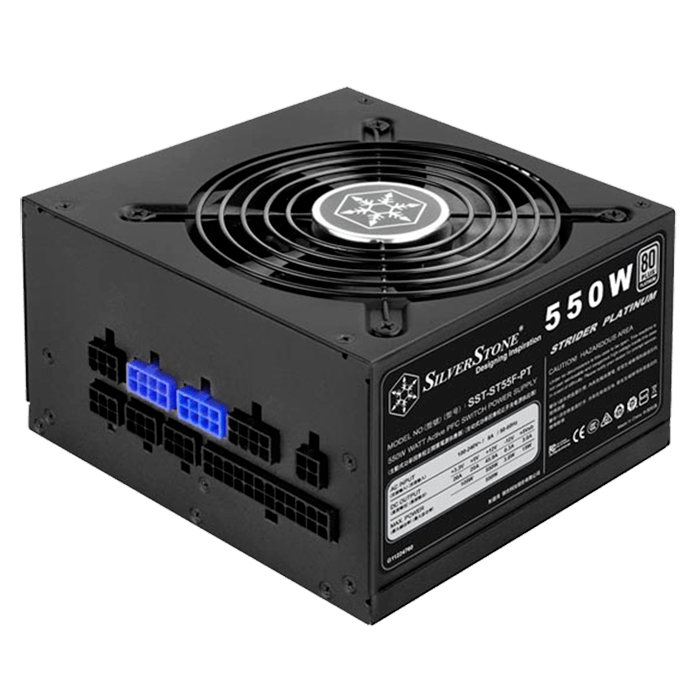

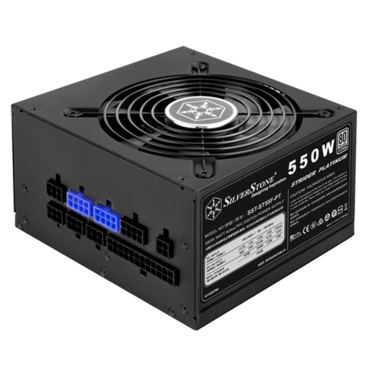

ST55F-PT, 80 PLUS Platinum 550W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 10484552
- Manufacturer: SILVERSTONE
- MPN: PS-ST55F-PT
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$141.44
- Compact design with a depth of 140mm for easy integration
- High efficiency with 80 PLUS Platinum certification
- 100% modular cables
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Ultra silent 120mm fan with intelligent semi-fanless operation
| Model No. |
SST-ST55F-PT
|
| Max. DC Output |
550W
|
| Power density |
305W per liter
|
| Color |
Black(Lead-Free Paint)
|
| combined +3.3, +5V |
105W
|
| combined +12V |
550W
|
| Input Voltage |
90V~264V
|
| Input Frequency Range |
47Hz~63Hz
|
| PFC |
Active PFC(PF>0.9 at full load)
|
| Efficiency |
89%~92% at 20%~100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0°C ~ 40°C
|
| Protection |
Over current protection
Over power protection Over voltage protection Under voltage protection Over temperature protection Short circuit protection |

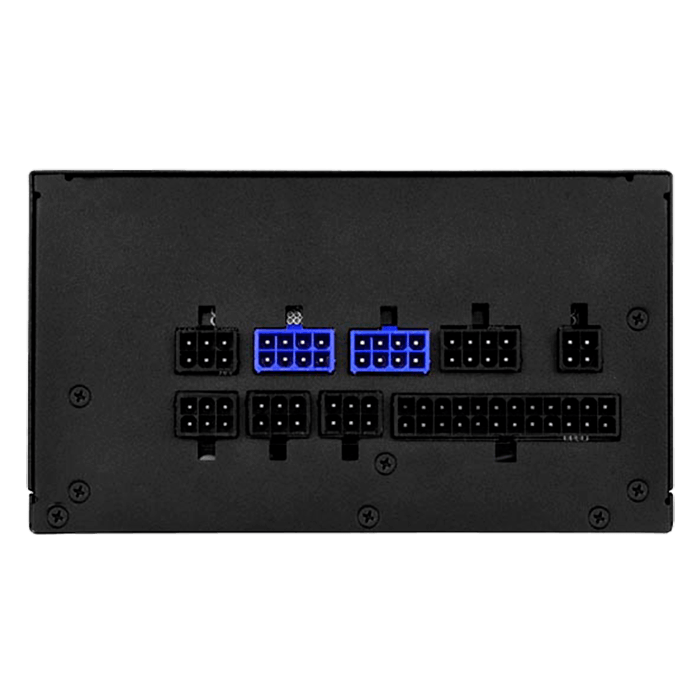

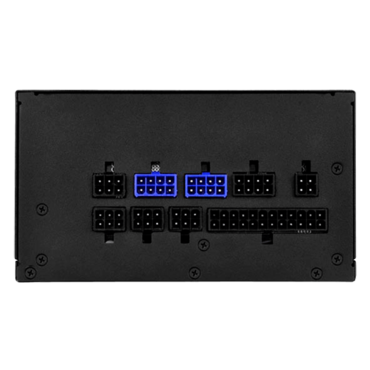

| Connectors |
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 2 x 8 / 6-Pin PCIE connector("550mm"x2) 8 x SATA connector("600mm / 150mm / 150mm /150mm"x2) 6 x 4-Pin Peripheral connector("600mm / 150mm / 150mm"x2) 2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm"x2) |
| Cooling System |
Single 120mm silent fan
|
| Noise Level |
0 ~ 28 dBA
|
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
|
| Weight |
2.15 kg
|
| Form factor |
ATX
|
| Certification |
80 PLUS Platinum
|
| Other |
Compatible with ATX12V v2.4
|

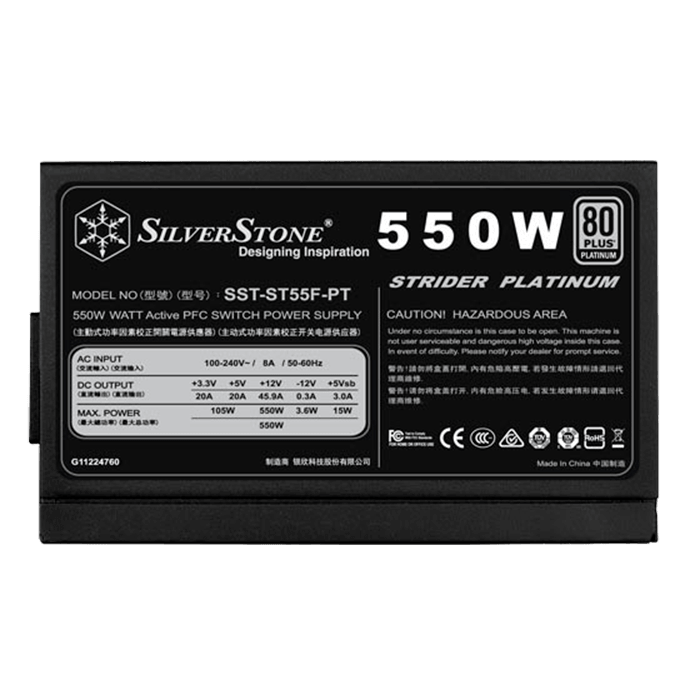

| +3.3V | +5V | +12V | +5VSB | -12V | |
|
Max.(Amps)
|
20A | 20A | 45.9A | 3.0A | 0.3A |
|
Peak (Amps)
|
/ | / | / | / | / |
|
Min.(Amps)
|
0A | 0A | 0A | 0A | 0A |
|
Range (%)
|
±3% | ±3% | ±3% | ±5% | ±10% |
|
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±1% |
|
Ripple(mVp-p)
|
50mV | 50mV | 120mV | 50mV | 120mV |
