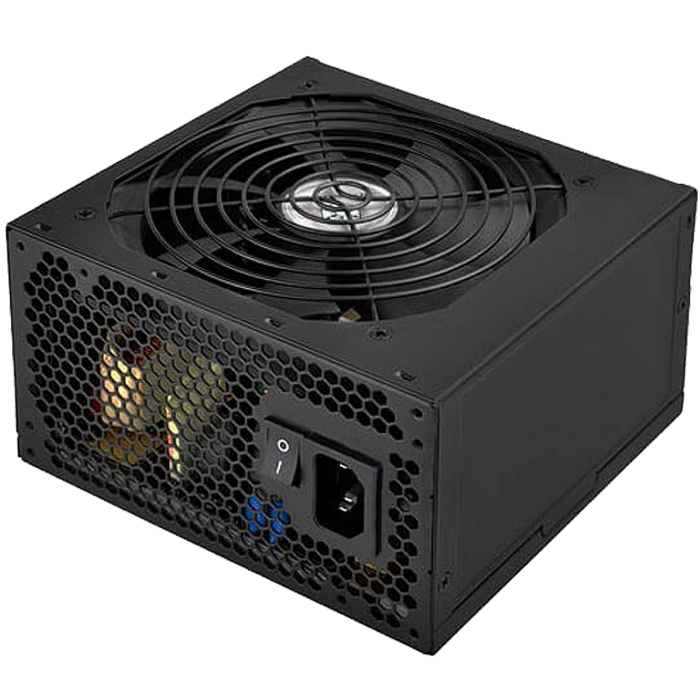

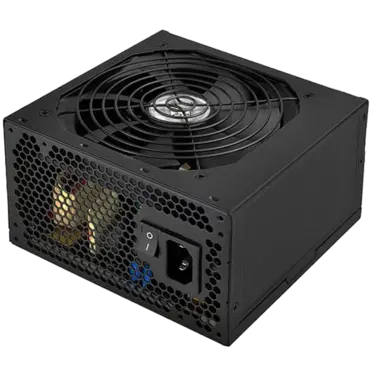

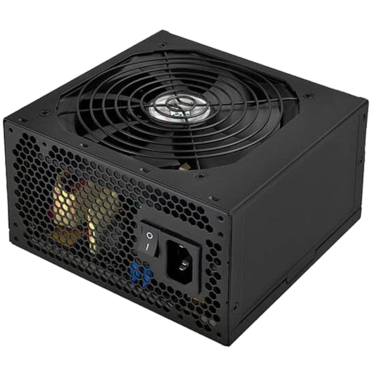

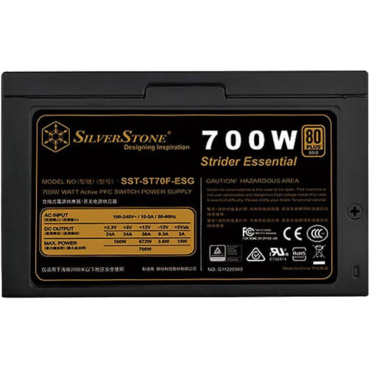

ST70F-ESG, 80 PLUS Gold 700W, No Modular, ATX Power Supply
The ST70F-ESG SilverStone Essential Gold is PSU with 80 PLUS Gold certification within the affordable Strider Essential series. They retain practical and reliable fixed-cable layout from other Strider Essential PSUs and adhere to the same outstanding characteristics from all Strider series PSUs with no comprise in quality and reliability.
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Multiple protection circuitry
- PCI-E 8pin and PCI-E 6pin connectors support

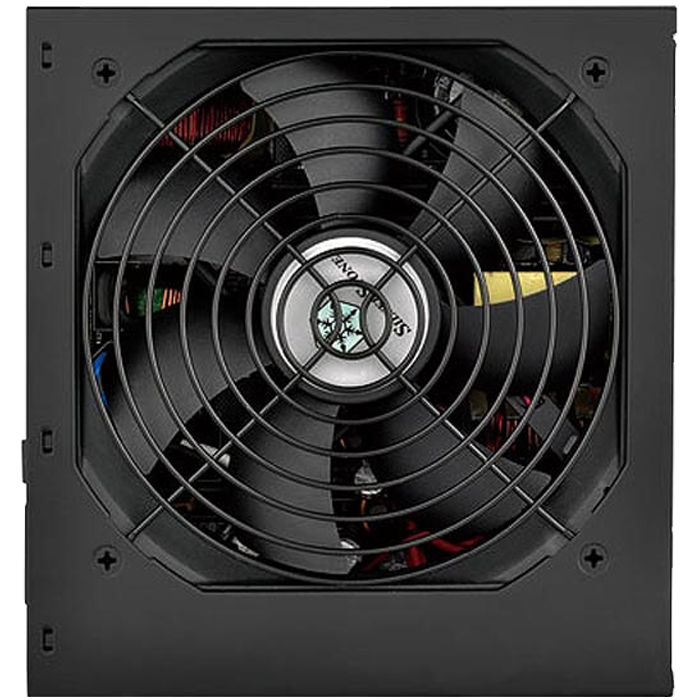

- Built-in silent & durable hybrid ceramic bearing (HYB) fan
- Active PFC
Model No. | SST-ST70F-ESG |
Max. DC Output | 700W |
Power density | 388W per liter |
Color | Black(Lead-Free Paint) |
combined +3.3, +5V | 160W |
combined +12V | 672W |
Input Voltage | 90 ~ 264 Vrms |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | Active PFC(PF>0.95 at Full Load) |
Efficiency | 87%~90% @ 20% ~ 100% loading |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 40°C |
Protection | Over power protection
Over current protection Over voltage protection Short circuit protection Under voltage protection |
Connectors | 1 x 24-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(600mm) 4x 8/6-Pin PCIE connector(”500mm / 150mm” x 2) 1 x SATA connector(550mm) 4 x SATA connector(550mm / 50mm / 50mm / 50mm) 4 x SATA connector(550mm / 155mm / 155mm / 155mm) 3 x 4-Pin Peripheral connector (705mm / 155mm / 155mm) 1 x 4-Pin Floppy connector(705mm / 155mm / 155mm / 100mm) |
Cooling System | Single 120mm HYB fan |
Noise Level | 18 dBA minimum |
Dimension | 150 mm (W) × 86 mm (H) × 140 mm (D) |
Weight | 1.95kg |
Form factor | ATX |
Certification | 80 PLUS Gold |
Other | Compatible with ATX12V v2.4 |
