ST70F-PB, 80 PLUS Bronze 700W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 9475434
- Manufacturer: SILVERSTONE
- MPN: ST70F-PB
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$102.35
As low as $8.53/ Month*

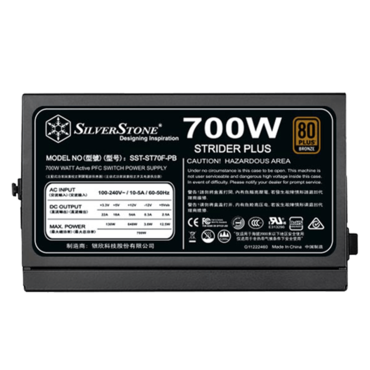

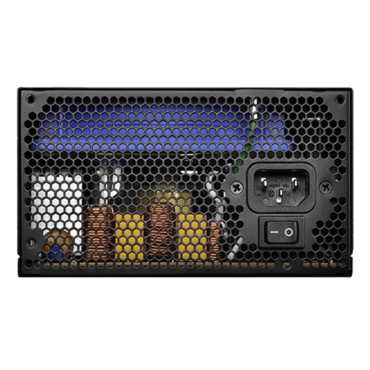

ST70F-PB, 80 PLUS Bronze 700W, Fully Modular, ATX Power Supply
The Strider series is the most versatile and time-proven line of power supply products from SilverStone with models rated from 500W to 1500W and packed with innovative features. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more features than ever before.
The Strider Plus ST70F-PB boasts the important features professionals and enthusiasts crave:
- High efficiency: 80 PLUS Bronze level
- Compact size (140mm depth) to fit in nearly any system
- Class-leading powerful single +12V rail with 54A

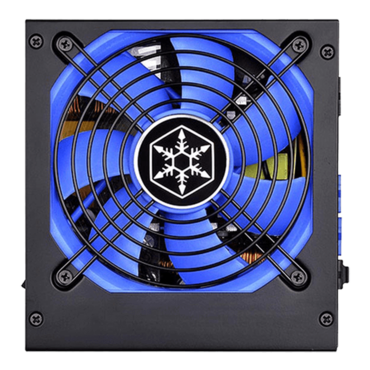

- Quiet and cool 120mm fan
The versatility of these power supplies extends to the 100% modular cables with all the important connectors to support current and future graphics card specifications. For enthusiasts that are looking for the power supply with all the right features to make a high performing and aesthetically pleasing system, the Strider Plus series reaches the goal with maximum satisfaction.
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40°C operating temperature
- 100% modular cables
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA
- PCI-E 8pin and PCI-E 6pin connectors support
| Model No. |
SST-ST70F-PB
|
| Max. DC Output |
700W (Peak 750W)
|
| Power density |
388W per liter
|
| Color |
Black(Lead-Free Paint)
|
| combined +3.3, +5V |
130W
|
| combined +12V |
648W
|
| Input Voltage |
90V~264V
|
| Input Frequency Range |
47Hz~63Hz
|
| PFC |
Active PFC(PF>0.9 at full load)
|
| Efficiency |
82%~85% at 20% ~ 100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0°C ~ 40°C
|
| Protection |
Over Current Protection
Over Power Protection Over Voltage Protection Over Temperature Protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 4 x 8 / 6-Pin PCIE connector("550mm / 150mm" x 2) 8 x SATA connector("600mm / 150mm / 150mm /150mm" x 2) 3 x 4-Pin Peripheral connector (600mm / 150mm / 150mm) 1 x 4-Pin Floppy connector(600mm / 150mm / 150mm / 150mm) |
| Cooling System |
Single 120mm silent fan
|
| Noise Level |
18 dBA minimum
|
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
|
| Weight |
2.0 kg
|
| Form factor |
ATX
|
| Certification |
80 PLUS Bronze
|
| Other |
Compatible with ATX12V v2.4
|
| +3.3V | +5V | +12V | +5VSB | -12V | |
|
Max.(Amps)
|
22A | 18A | 54A | 2.5A | 0.3A |
|
Peak (Amps)
|
/ | / | / | / | / |
|
Min.(Amps)
|
0.1A | 0.2A | 0.5A | 0A | 0A |
|
Range (%)
|
±3% | ±3% | ±3% | ±5% | ±10% |
|
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±1% |
|
Ripple(mVp-p)
|
50mV | 50mV | 120mV | 50mV | 120mV |
