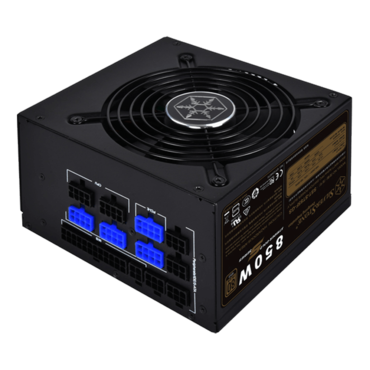

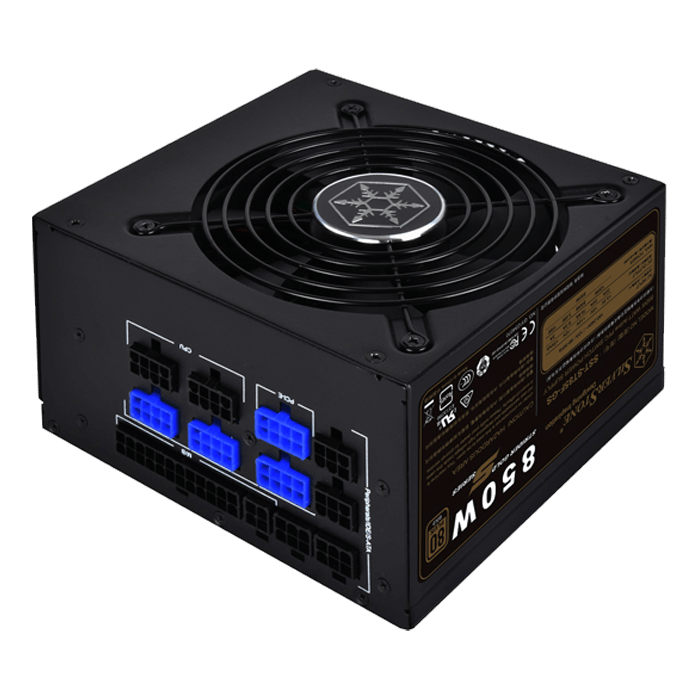

ST85F-GS (V2.0), 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13352838
- Manufacturer: SILVERSTONE
- MPN: ST85F-GS-V2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$162.14
- Compact design with a depth of 140mm for easy integration (V2.0)
- Strict ±2.5% voltage regulation and low ripple & noise (V2.0)
- 24/7 continuous power output with 40? operating temperature
- 80 PLUS Gold certification
- 100% modular cables
- Class-leading single +12V rail
- Silent running 120mm fan with 18dBA minimum

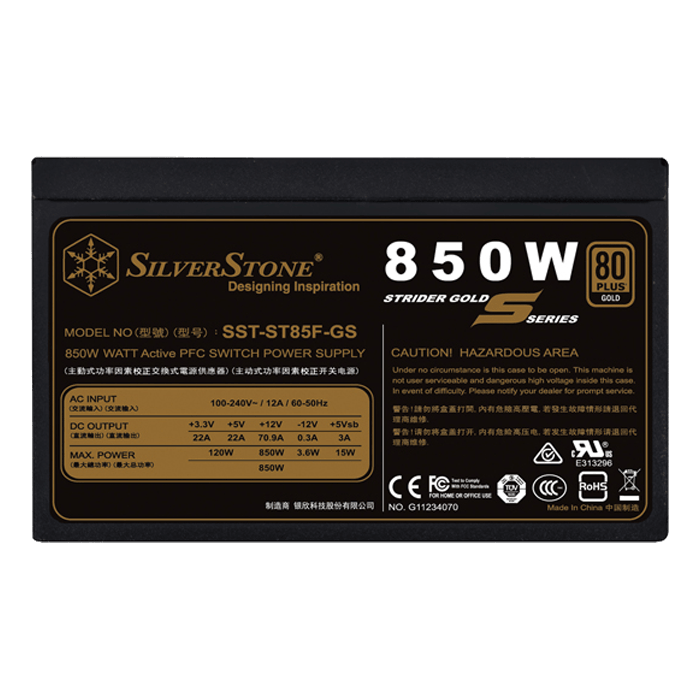

| Model No. | SST-ST85F-GS (V2.0) |
| Max. DC Output | 850W |
| Power density | 471W per liter |
| Color | Black (lead-free paint) |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 850W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC.(PF>0.95 at Full Load) |
| Efficiency | 87%~90% at 20%~100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over current protection
Over power protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection |

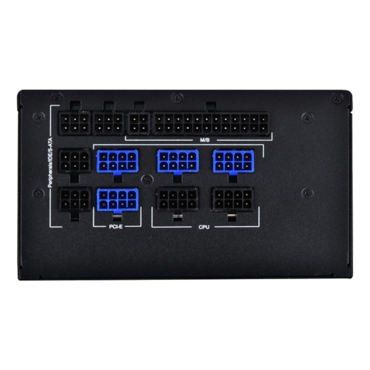

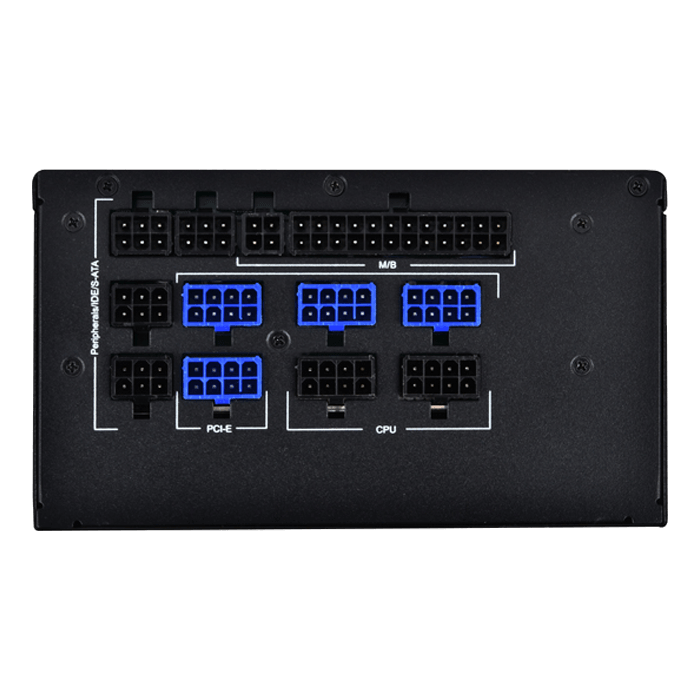

| Connectors | 1 x 24 / 20-Pin motherboard connector(600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) 4 x 8/6-Pin PCIE connector(”550mm/150mm” x 2) 2 x 8/6-Pin PCIE connector (550mm x 2) 8 x SATA connector("600mm /150mm / 150mm / 150mm" x 2) 6 x 4-Pin Peripheral connector(”600mm / 150mm / 150mm” x 2) 2 x 4-Pin Floppy connector(100mm x 2) |

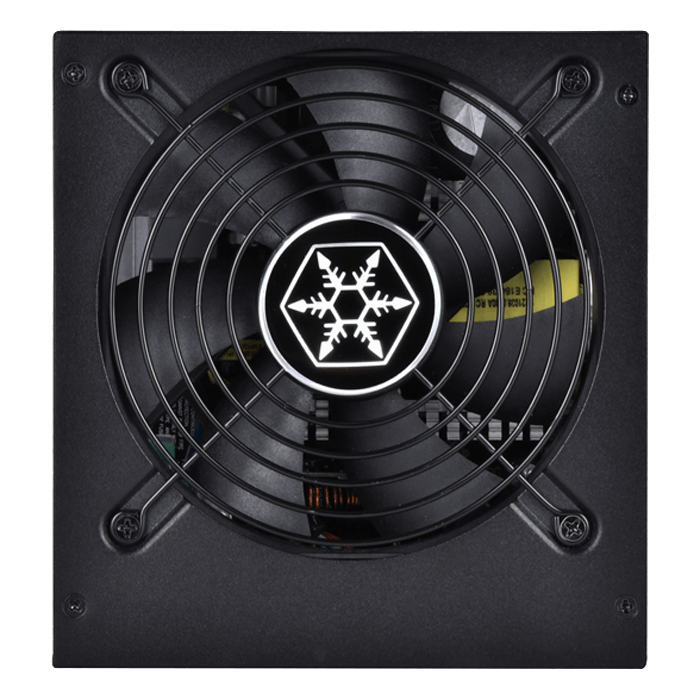

| Cooling System | Single 120mm silent fan |
| Form factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.55 kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support lis
Compatible with ATX12V v2.4 |
|
|
|||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 22A | 22A | 70.9A | 2.5A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±2.5% | ±2.5% | ±2.5% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 30mV | 30mV | 50mV |
