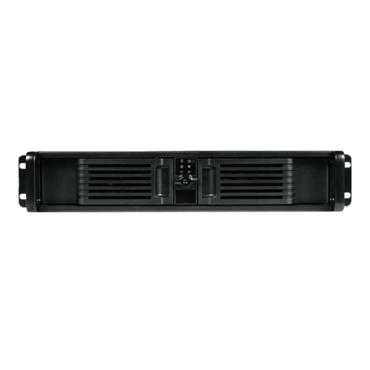

STAR200, 2x 5.25, 3x 3.5" Bays, 350W PSU & 24" Rail, ATX, Black, 2U Chassis

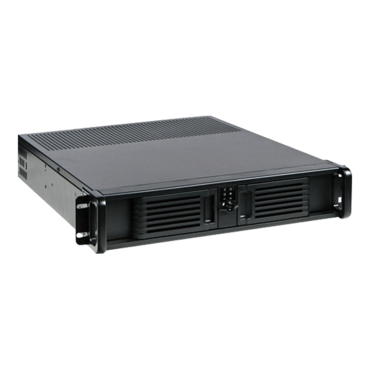

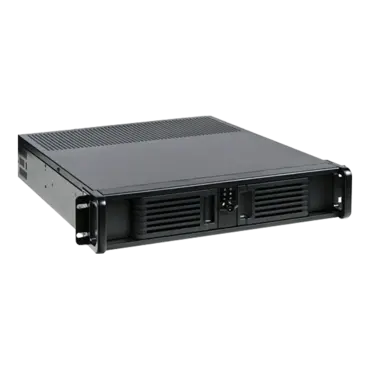

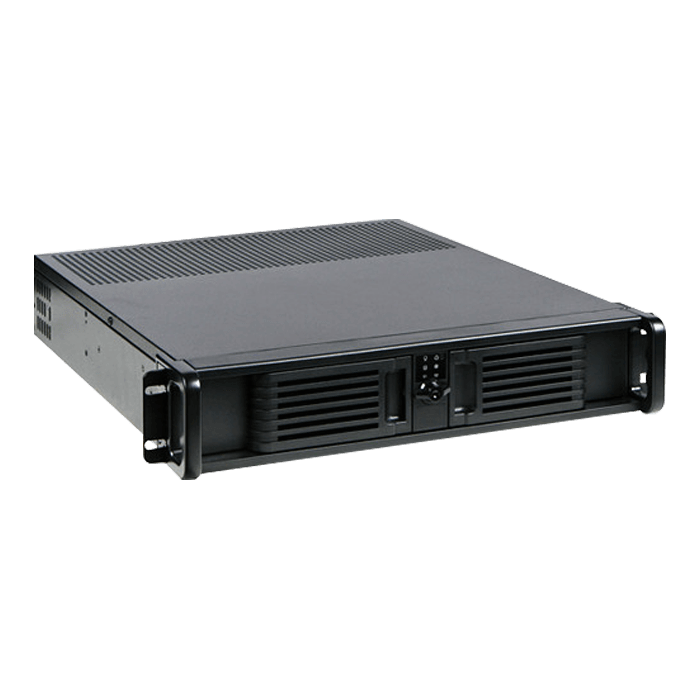

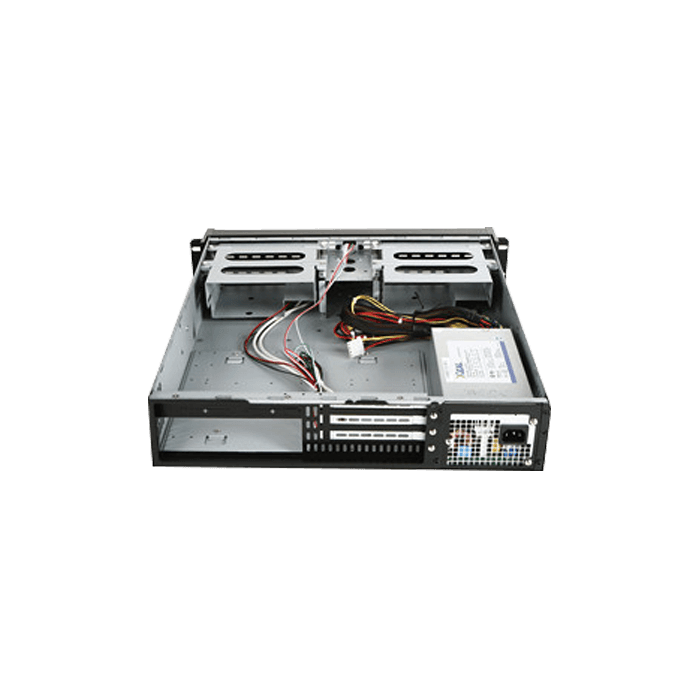

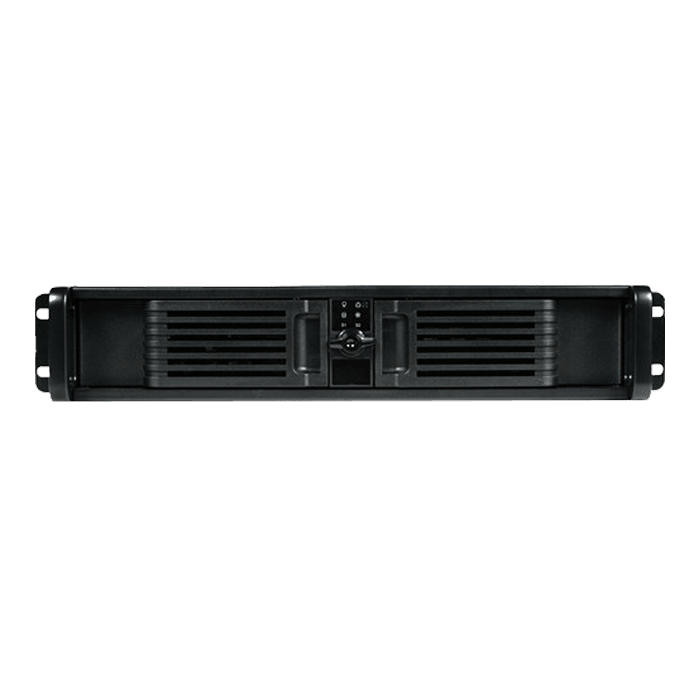

The 2U compact industrial rackmount chassis STAR200. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. STAR200 supports 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

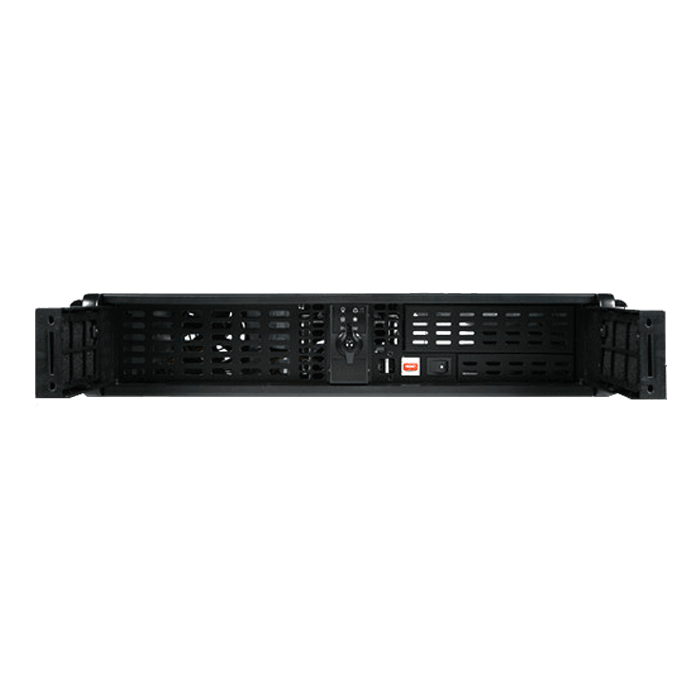

- Front Access USB2.0 x2
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional 60mm and 80mm Cooling Fans

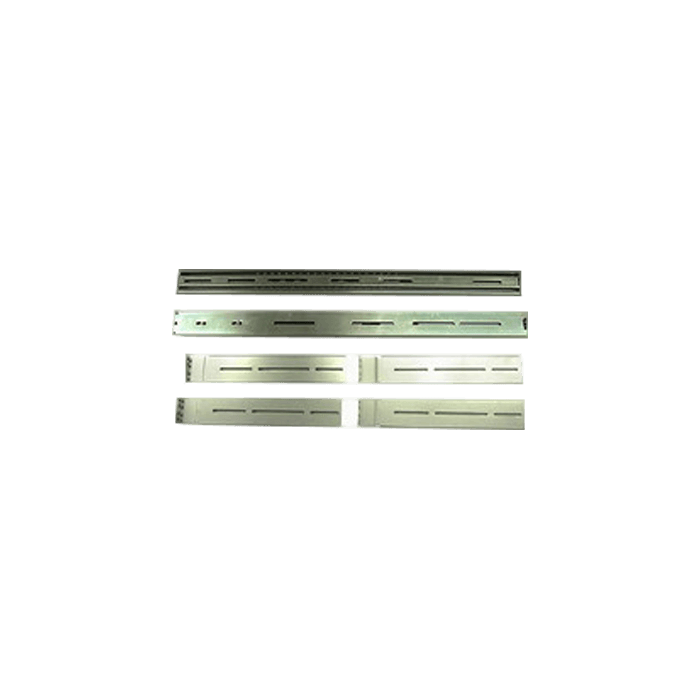

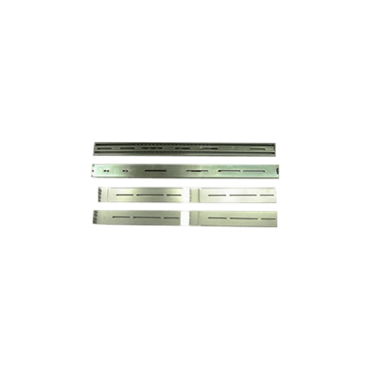

- Comes with 80PLUS 350W PSU and 24" Rails
Model Number | STAR200 |
Form Factor | U2 |
Standard Drive Bays | 5.25": 2
3.5": 2 3.5" (Int): |
Cooling Fan [Option] | 80mm x1, 60mm |
Mainboard Size [Inch] | 12 x 9.6 (ATX, microATX) |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Security | Front Bezel (optional) |
Material of Handles | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Dimensions (WxHxD) | 19 x 3.5 x 20.8 inches |
