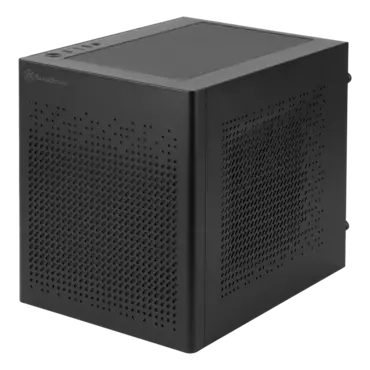

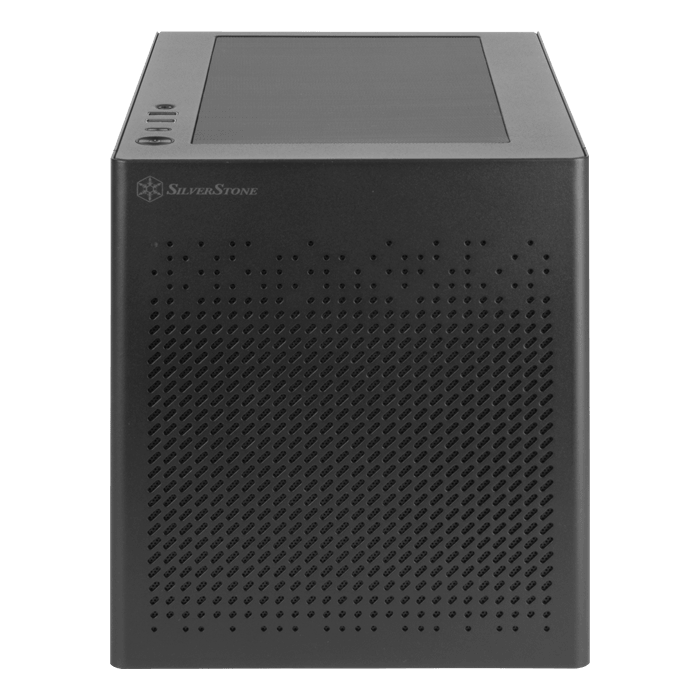

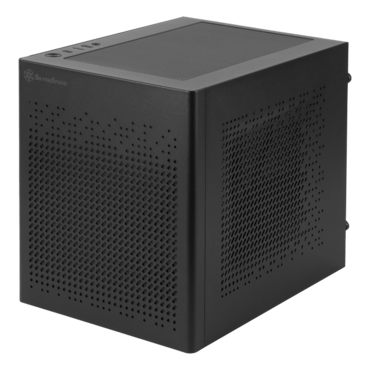

SUGO 16, No PSU, Mini-ITX, Black, Mini Cube Case

  • SKU: 14855319
  • Manufacturer: SILVERSTONE
  • MPN: SG16B
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
SUGO 16, No PSU, Mini-ITX, Black, Mini Cube Case

Subtle yet sturdy design

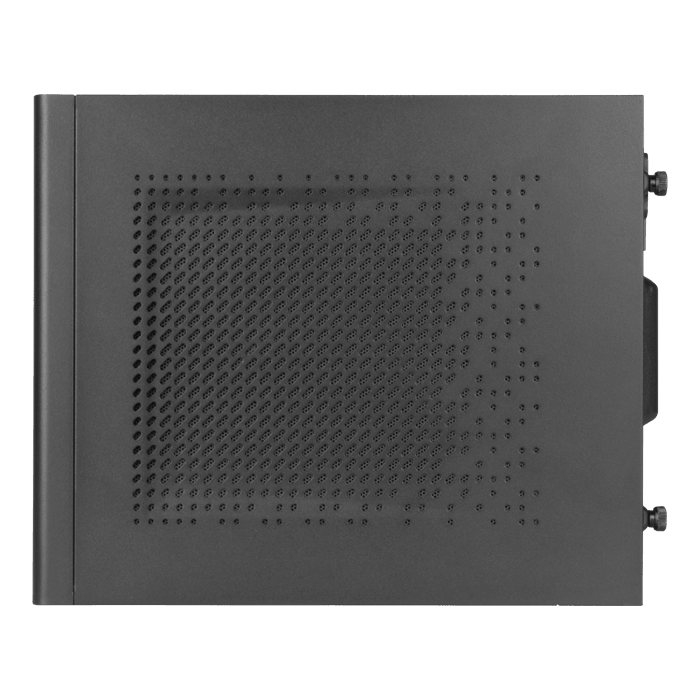

Constructed using high-grade steel material, SUGO 16 features extensive perforated panels catering to main heat source components

  • Supports standard length graphics / expansion cards of up to 275mm
  • Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
  • Supports 120mm All-In-One liquid cooling radiator

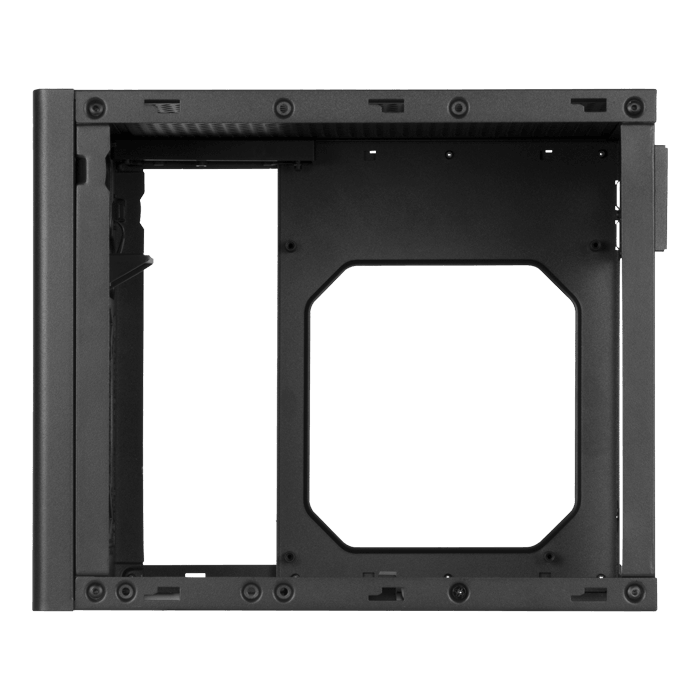

  • CPU cooler opening on motherboard back plate for convenient assembly and upgrade

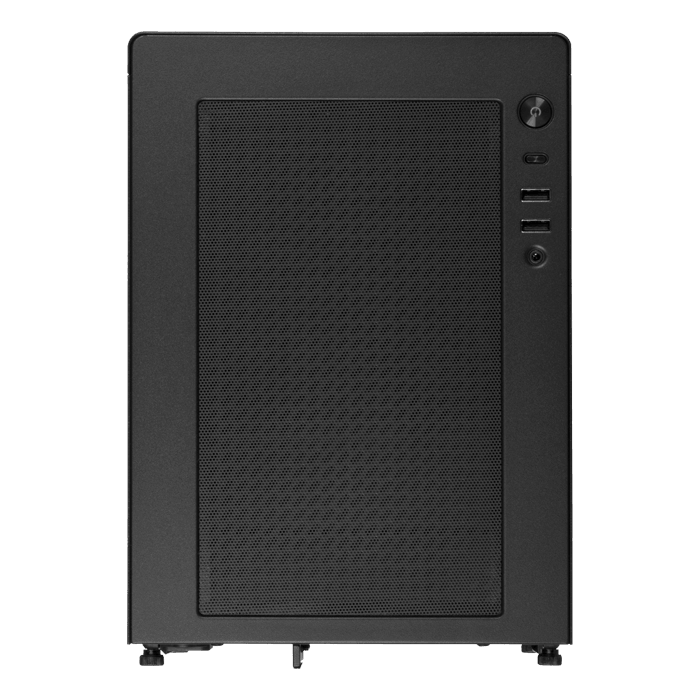

  • Front I/O port includes 2 x USB 3.0, combo audio x 1
Model No. SST-SG16B (Black)
Material Steel
Motherboard Mini-DTX, Mini-ITX
Drive bay External --
Internal 2.5" x 1

2.5" x 1 or 3.5" x 1 (Occupies front fan mount)
Cooling system Front 80mm x 1 / 92mm x 1 / 120mm x 1
(120mm only allows SFX, SFX-L power supply installation)
Rear 120mm x 1
Side --
Top --
Bottom --
Internal --
Radiator support Front 120mm (Can only install SFX, SFX-L power supply)
Rear 120mm
Side --
Top --
Bottom --
Internal --
Expansion slot 2
Front I/O port USB 3.0 x 2
Combo audio x 1
Power supply Standard PS2(ATX)
Limitation of VGA card Length: 275mm
Width: 147mm
Limitation of CPU cooler Air cooler: 85mm ~ 172mm*
Limitation of PSU 150mm ~ 220mm
Net weight 2.66kg
Dimension 200mm (W) x 232mm (H) x 280mm (D), 13 Liters
7.87" (W) x 9.13" (H) x 11.02" (D), 13 Liters
Extra Support Kensington lock
