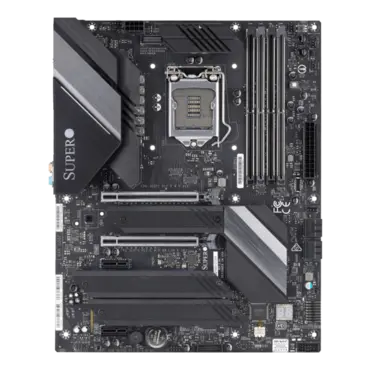

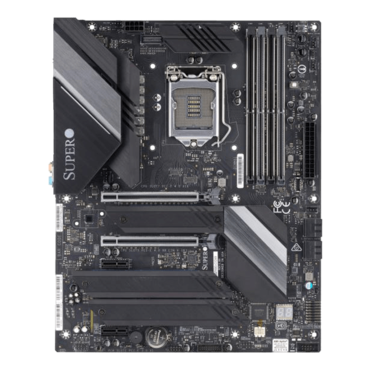

SUPERMICRO Core Gaming C9Z590-CG, Intel® Z590 Chipset, LGA 1200, DP, ATX Motherboard
Quantity:
- SKU: 14598780
- Manufacturer: SUPERMICRO
- MPN: MBD-C9Z590-CG-O
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$232.28
| Product SKU | C9Z590-CG |
| Form Factor | ATX |
| Dimensions | 12" x 9.6", (30.48cm x 24.4 cm) |
| Processor Support | 11th Gen Intel® Core™ Processor Family (LGA-1200) |
| Memory Capacity | 4 DDR4-4000+ MHz(OC) non-ECC UDIMM up to 128GB |
| Memory Type | 3200/2933/2666/2400/2133MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2V |
| Chipset | Intel® Z590 Chipset |
| On-Board SATA | 4x SATA3 ports (RAID 0, 1, 5, 10) |
| On-Board Audio | RealTek ALC1220 High Definition Audio |
| Network Controllers | 1x 1GB LAN (Intel® i219V) 1x 10Gb LAN Port (Marvell AQC113C) |
| LAN | 1x RJ45 Gigabit Ethernet LAN port 1x RJ45 10Gb Ethernet LAN port |
| USB | 6 USB 2.0 ports (4 rear + 2 via headers) 2 USB 3.2 Gen1 ports (2 via headers) 2 USB 3.2 Gen2 ports (2 Rear Type A) 3 USB 3.2 Gen2x2 ports (2 Type C) |
| Input/Output Audio | 7.1 HD Jacks Optical S/PDIF out |
| Display | 1 DisplayPort 1.4a + 1 HDMI 2.0b |
| Serial Port / Header | 1x COM port (header) |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI |
| PCI-Express | 4 PCI-E 4.0 x16 + 2 PCI-E 3.0 x1 slots M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4 Form Factor: 2260/2280/22110 |
| BIOS Type | 256Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | DMI (SMBIOS) 3.0 ACPI 6.0 USB Keyboard support |
| Software | SuperDoctor® V Watch Dog SUPERO Booster |
| Power Configurations | ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery |
| Voltage | +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT |
| FAN | Total of 5 fan headers supporting up to 5 fans 5 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors |
| LED | CPU / System Overheat LED Suspend static indicator LED |
| Other Features | Chassis intrusion detection Chassis intrusion header TPM Header (TCG 1.2/2.0) RoHS |
